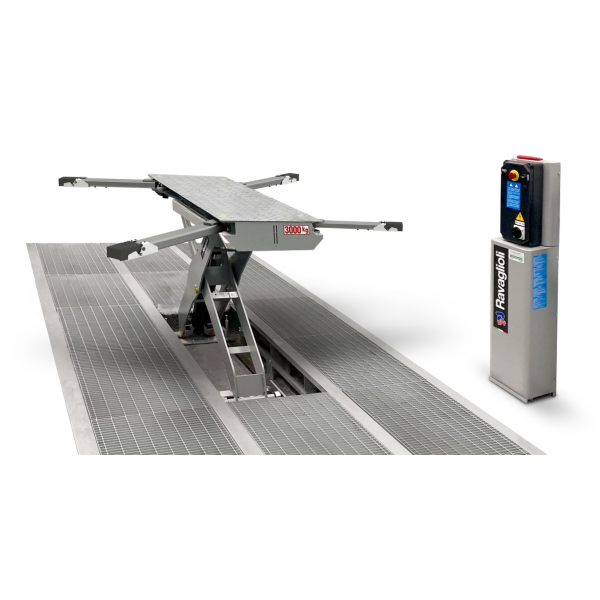

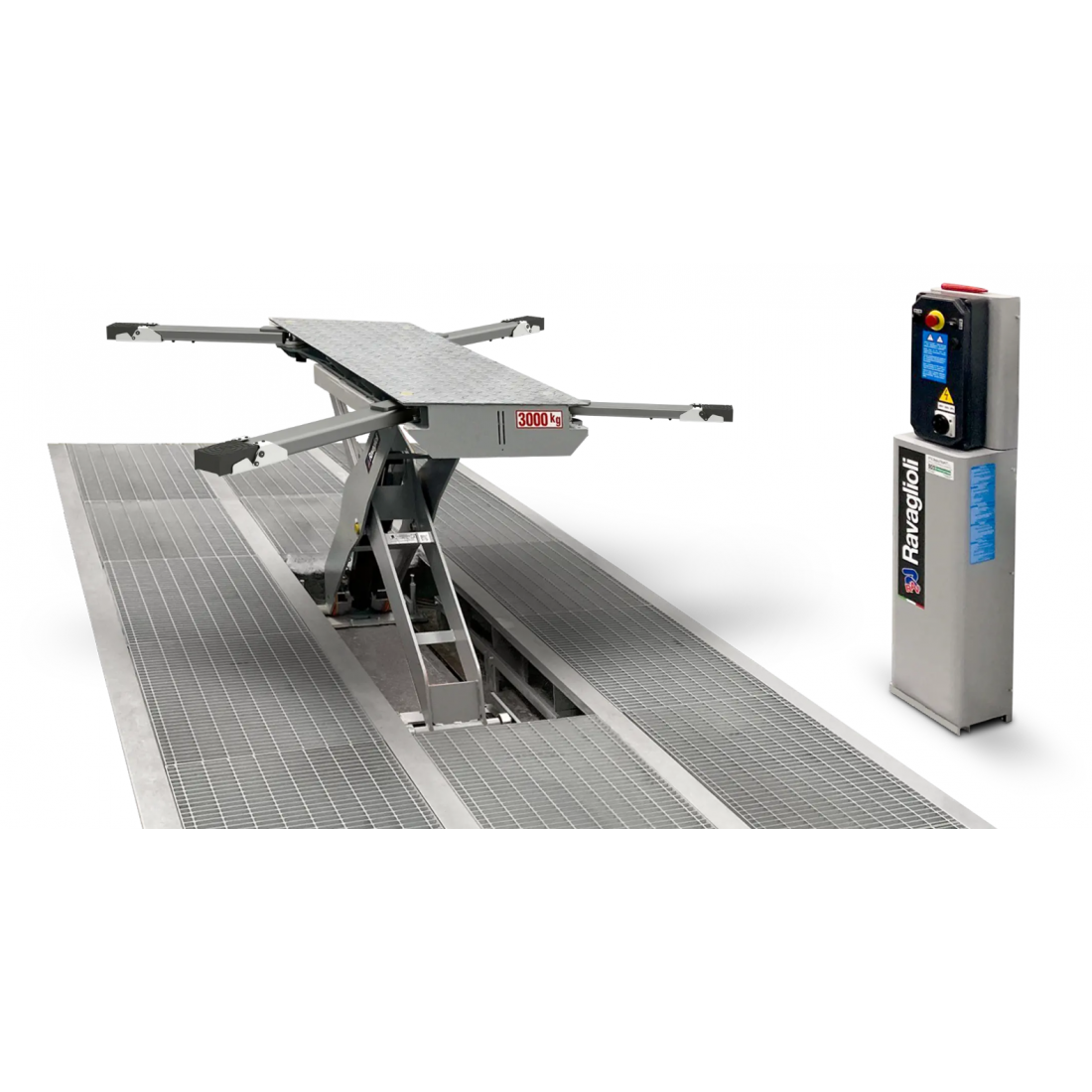

Elektrohidraulinis kėbulo remonto keltuvas 3T, RAVAGLIOLI (RAV.KBI30.199997)

Scissor lift ideal for installation in both paint booth grids and preparation areas, and flush-mounted for traditional floors. Its ergonomic design allows you to easily reach the pick-up points of the vehicles, eliminating all obstacles surrounding the vehicle, in this way making every operation on the chassis easier.
This lift is not suitable for wheel play detection, wheel-free lifting, or wheel alignment. ATEX certified equipment for safe use in explosive atmospheres, ensuring the highest safety standards in compliance with Directive 2014/34/EU.Ideal also for being used inside paint booths.
The compact electrical panel is directly installed in the workstation. Pneumatic operated arms.Teq-link.
Technical specifications:
Maximum lifting height: 1623 mm
Lifting time: 40 s
Lowering time:35-50 s
Maximum lift height from the floor: 1353 mm
Air supply: 7-8 bar
Motor power: 2.6 kW
Platform width: 650 mm
Platform length: 1950 mm
Power supply: 400 V | 50 Hz
Length: 1950 mm
Width: 650 mm
