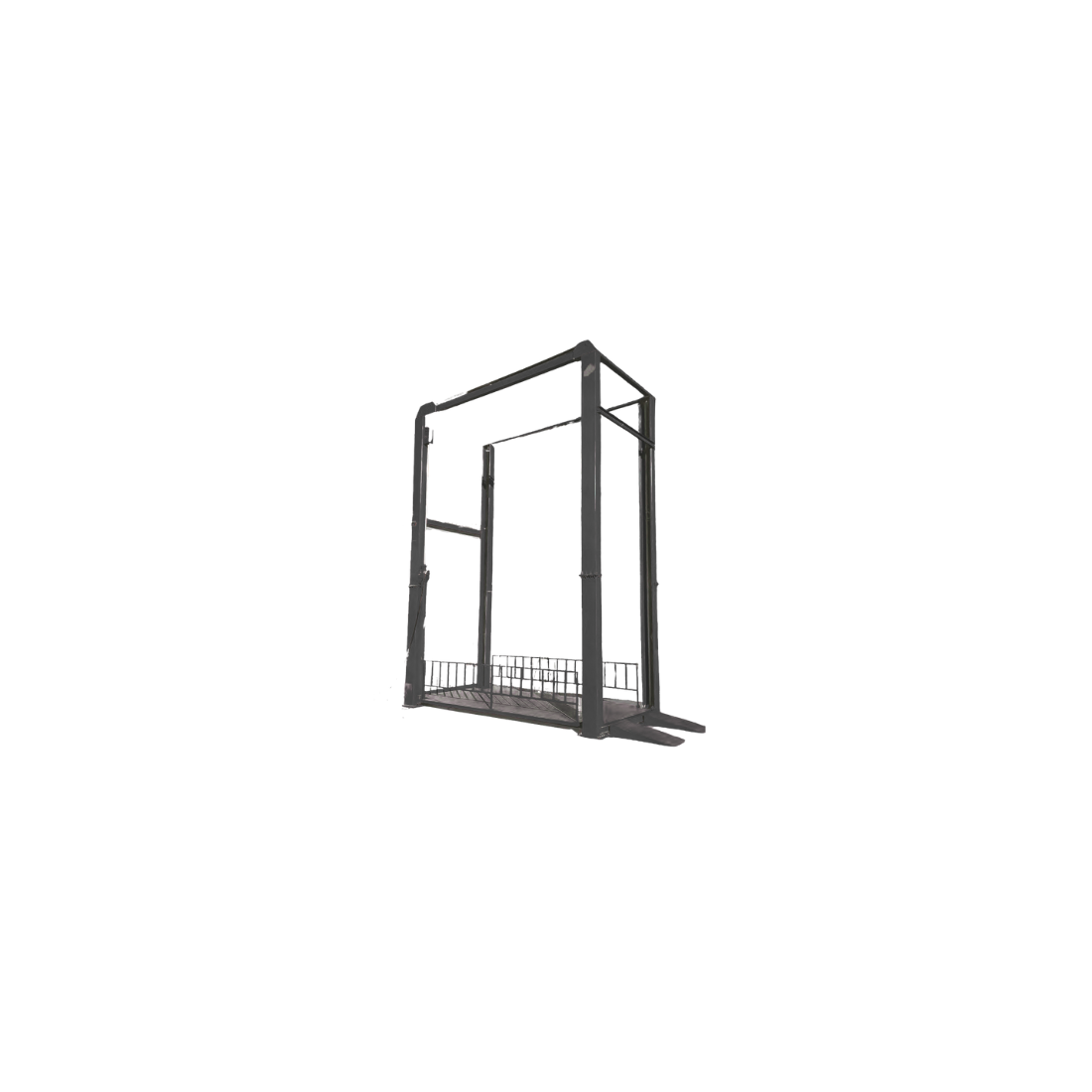

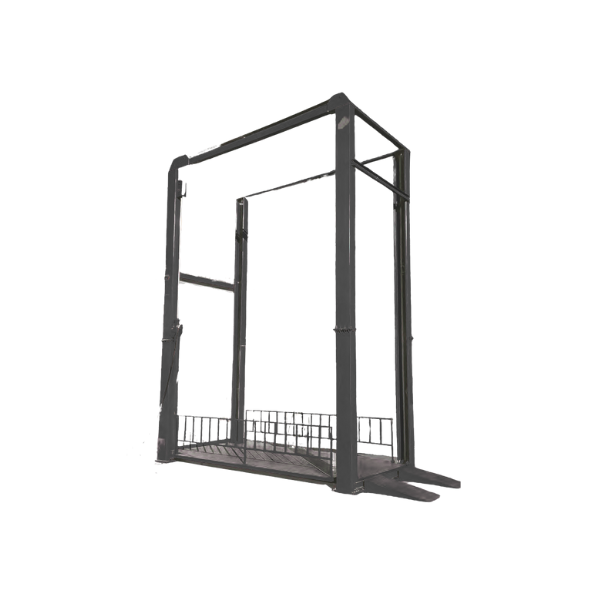

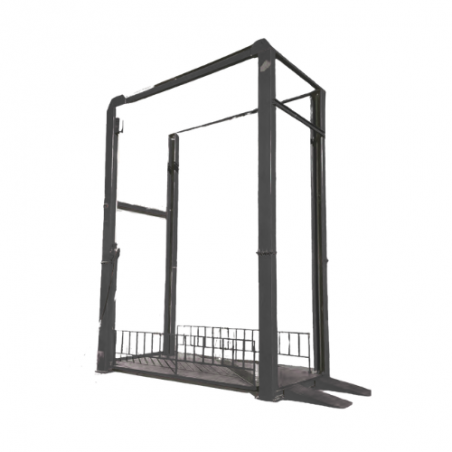

Four-Post Platform Lift Model FF 2000

The FF model is a universal and reliable lift designed for transporting vehicles or goods between different levels. It can be customized according to travel height and lifting capacity, making it suitable for various applications.
Key Advantages:
Dual chain drive – stability and performance.
Remote control operation.
Safety railings on both sides of the platform.
Explosion-proof valve system.
Emergency stop buttons on top and bottom levels.
Lifting height up to 15 m, capacity up to 6000 kg.
Self-locking function in case of power failure.
Can be installed with a ramp or recessed into a pit.
Robust design suitable for showrooms, warehouses, and workshops.
Custom manufacturing available.
CE Certified.
Technical Specifications:
Lifting height: 2000–15000 mm
Capacity: 2000–6000 kg
Platform size: 2000 × 7000 mm
Motor power: 4 / 5.5 kW
Power supply: 110–450 V, 50/60 Hz, 3-phase, 24 V
Lifting speed: ~4 m/min (depending on load)
Max. vehicle size: 5000 × 1900 × 2050 mm
Finish: powder coating (RAL 7016; RAL 3020)
