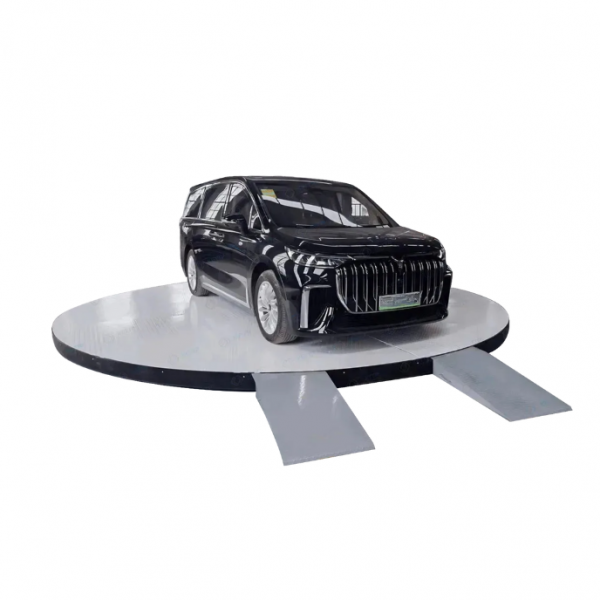

Car Exhibition Turntable – Models CTF / CTP (CTF/CTP 3000)

CTF (friction drive) and CTP (gear drive) rotating exhibition turntables are designed to optimize vehicle movement in confined spaces and exhibition areas. Each model is tailored to different needs: CTF – slim profile, friction-driven, easy to install, does not require a deep pit; CTP – stronger construction, gear drive ensures greater stability and durability.
Key Advantages:
Motor installation options: CTP – center or external; CTF – positioned at the edges for higher efficiency.
Platform surface options: checkered steel, smooth steel, or aluminum plate.
Ramp can be installed around the turntable for pit-free operation.
Diameter customizable up to 10 m.
Load capacity up to 10 tons.
Remote control for convenient operation.
Reinforced circular structure for stability and long service life.
Ideal for exhibitions, narrow courtyards, or driveways.
Custom manufacturing available.
CE Certified.
Technical Specifications:
Platform thickness: 185 mm / 311 mm
Capacity: 3000 kg / 10000 kg
Platform diameter: 4000 / 10000 mm
Motor power: 480 W / 1100 W
Power supply: 110–450 V, 50/60 Hz, single or three-phase, 24 V
Rotation speed: 0.3–1 rpm
Max. vehicle size: 5000 × 1900 × 2050 mm
Finish: powder coating (RAL 7016; RAL 3020)
