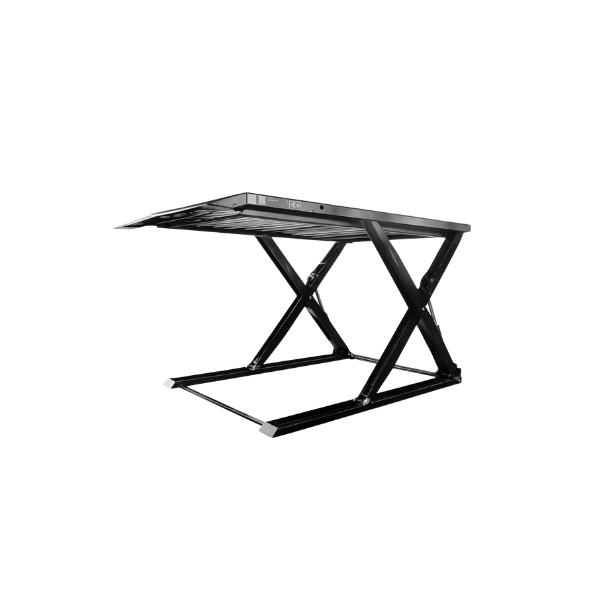

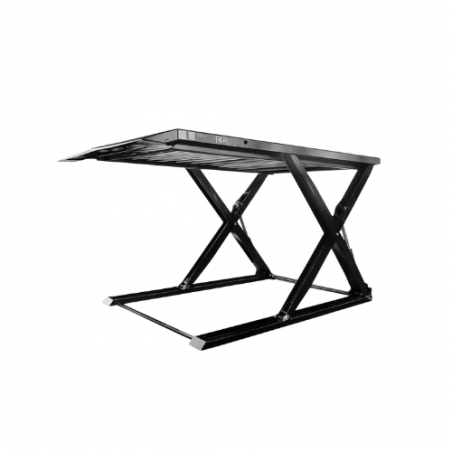

Two-Level Scissor Parking Lift – Model 2SC 2000

A modern solution for two-level parking, ensuring stability, easy installation, and minimal foundation requirements. Designed for user convenience and intensive use.
Key Features:
Dynamic mechanical locks on both sides
No special concrete foundation required
Automatic lock release
No additional supports under platform
Dual-cylinder drive
Reinforced structure
Hydraulic overload protection
Full-width platform with sloped entry
Outdoor installation possible with accessories
CE certified
Technical Specifications:
Lifting height: 2000 mm
Capacity: 2000 kg
Platform length: 4010 mm
Motor: 2.2 kW
Power supply: 110–450 V, 1/3 phase, 24 V
Time: ~45 s / ~35 s
Max. vehicle size: 5000 × 1900 × 1950 mm
Finish: Powder coating (RAL 7016; RAL 3020)
