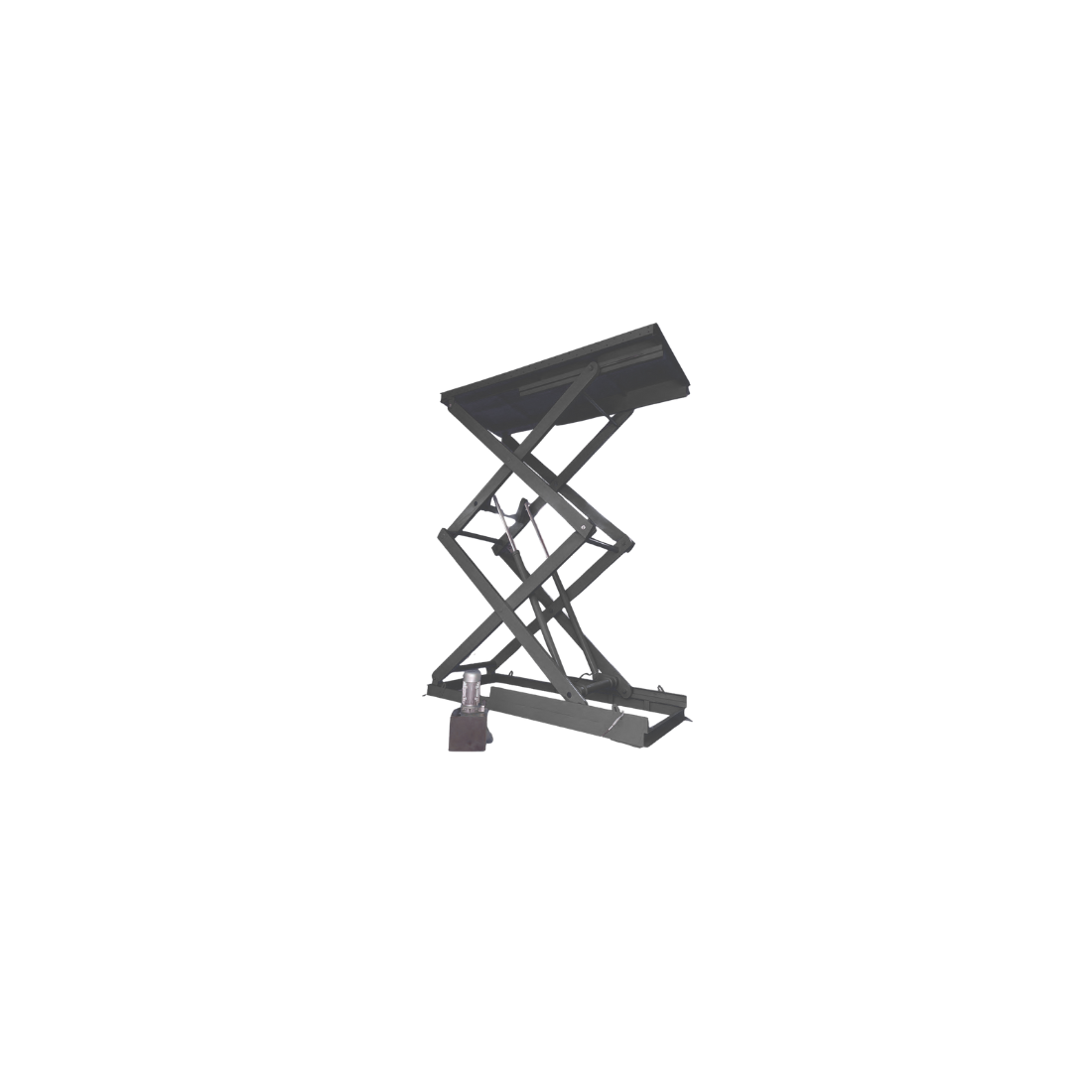

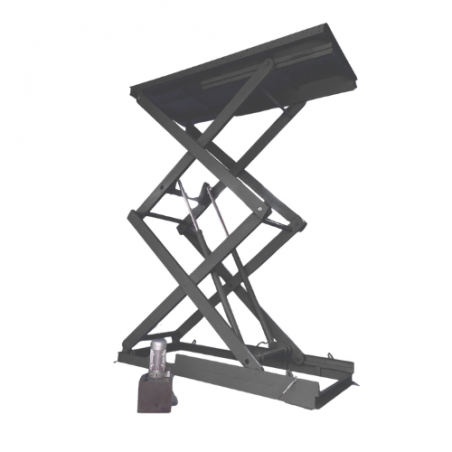

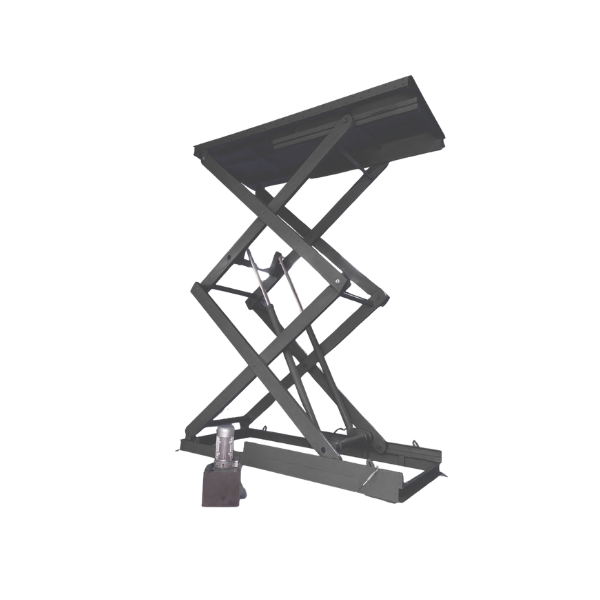

Scissor Type Lift Model SF 2000

The SF model is a scissor-type lift designed for efficient vertical movement of vehicles or cargo between different levels. A single wide platform allows installation in pits, shafts, or limited spaces. The structure can be customised according to individual specifications, making the lift suitable for garages, workshops, warehouses, and commercial facilities.
Key advantages:
• Rigid and durable construction ensures stable operation.
• Reliable hydraulic system designed for frequent use.
• Low initial height and wide maximum lifting range.
• Platform manufactured according to customer requirements.
• High-quality steel with powder-coated finish.
• CE certified.
Technical data:
• Lifting height: 2000–10000 mm
• Lifting capacity: 3000 kg
• Platform size: 2000 × 6500 mm
• Power supply: 110–450 V, 50/60 Hz, 3-phase; motor power: 5.5 / 7.5 kW
• Lifting time: ~3.5 min (depending on load)
• Maximum vehicle dimensions: 5000 × 1900 × 2050 mm
• Finish: powder coating (RAL 7016 / RAL 3020)
