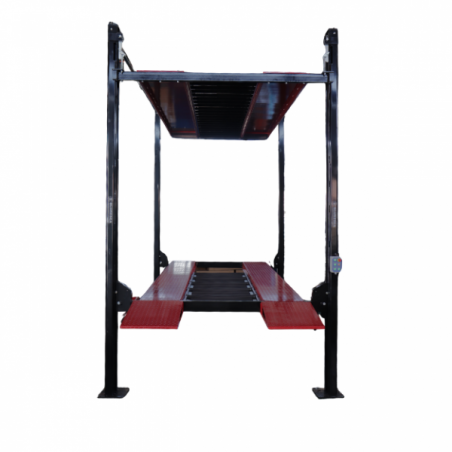

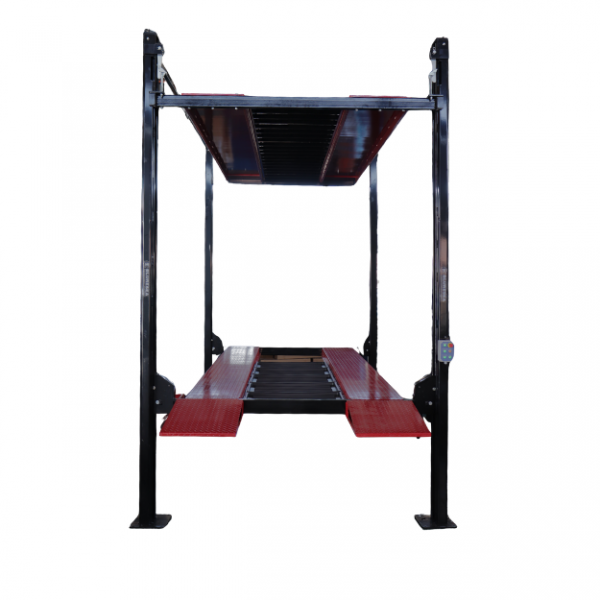

Three-Level Four-Post Parking Lift Model 3F 2.5T (3F 2500)

The 3F model is a robust three-level, four-post lift designed for efficient parking of up to three vehicles. Each platform can lift up to 2500 kg, with adjustable heights to accommodate different vehicle sizes. The lift operates using a hydraulic cylinder and steel rope system, ensuring reliable performance and safety.
Key Features:
Comprehensive mechanical locks for secure positioning at various heights.
Emergency stop button prevents accidental activation.
Electromagnetic lock release for safe and convenient operation.
Ribbed steel platforms and ramps provide enhanced anti-slip resistance.
Reinforced structure designed for heavy-duty automotive use.
Hydraulic overload protection extends service life.
Suitable for outdoor use with optional configurations (contact us for details).
CE Certified.
Technical Specifications:
Lifting height: 1800 mm / 2100 mm
Capacity: 2000 kg / 2500 kg
Platform length: 4000 mm
Motor power: 2.2 kW
Power supply: 110–450 V, 50/60 Hz, single or three-phase, 24 V
Lifting / lowering time: ~80 s / ~60 s (depending on load)
Max. vehicle size: 5000 × 1900 × 1550 / 2050 mm
Finish: Powder coating (Color codes – RAL 7016; RAL 3020)
