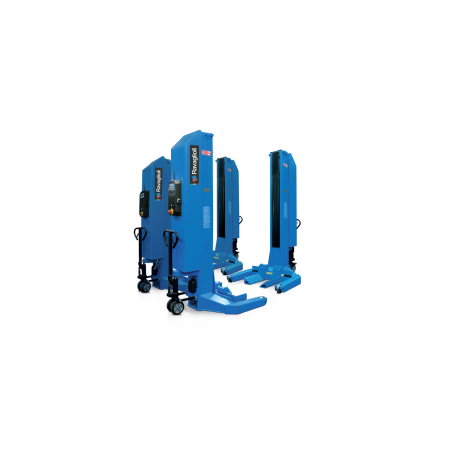

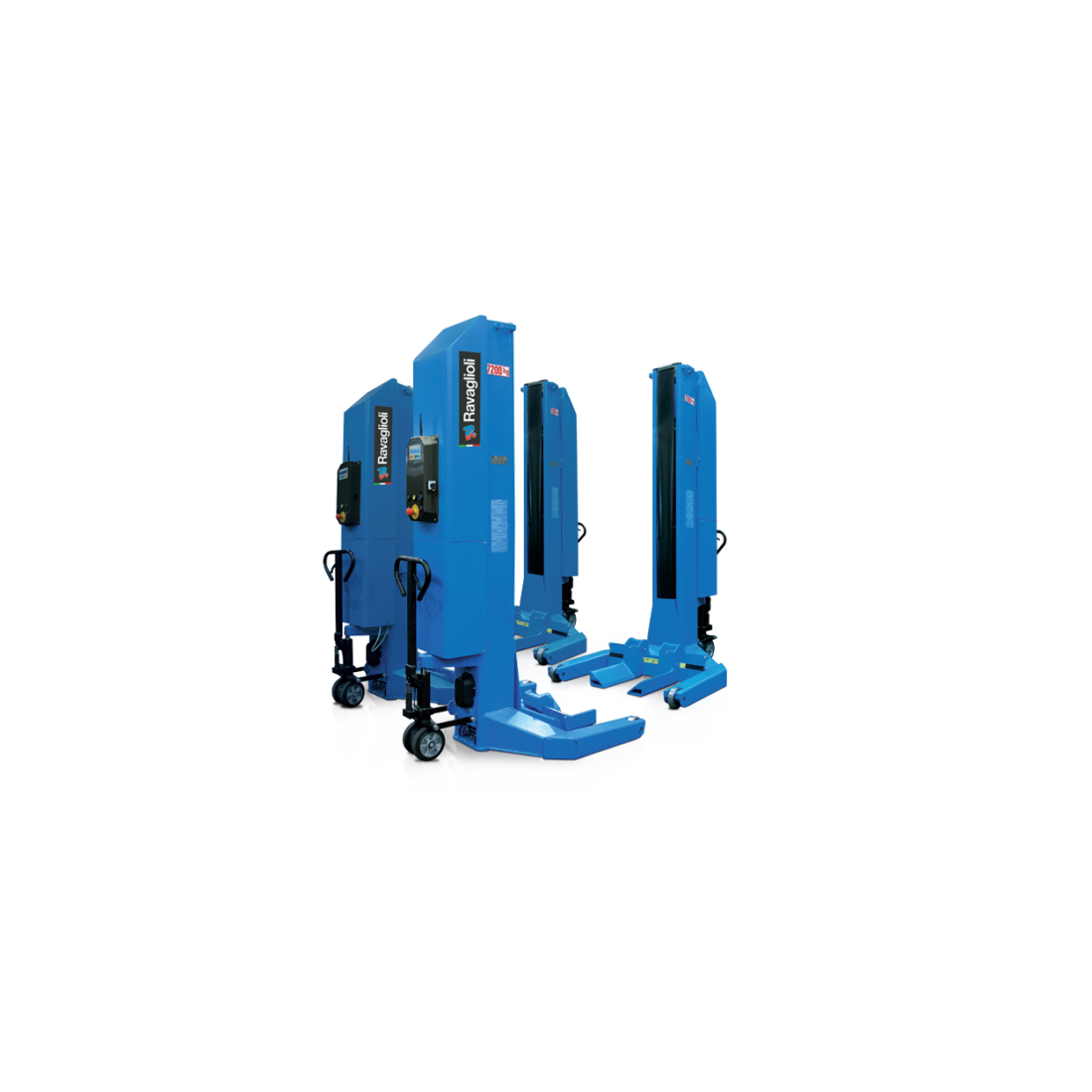

Electro-hydraulic 6-column mobile lift RAV305H.6WS Ravaglioli

Reference: RAV305H.6WS
€50,474.67 Tax incl.
€41,714.60 Tax excl.

Delivery time 1 day

Product Information

The mobile column lift is a powerful and reliable solution for lifting heavy vehicles, ensuring stability and safety during operation. With a robust steel base and transport wheels, it provides maximum durability and ease of movement. Designed for efficiency, this lift features a maintenance-free battery system, allowing multiple lifting cycles without the need for constant recharging.
Technical Specifications:
Maximum load per column: 5,500 kg x 6
Motor power: 0.8 kW
Weight per column: 600 kg x 6
Lifting time: 120 s
Lowering time: 45 s
Maximum tire diameter: 1,200 mm
Minimum tire diameter: 500 mm
Minimum rim diameter: 580 mm
Large and sturdy base ensures maximum stability under load
Steel transport wheels for easy mobility
Battery System:
2 maintenance-free gel batteries per column
20 lifting cycles at full load on a single charge
