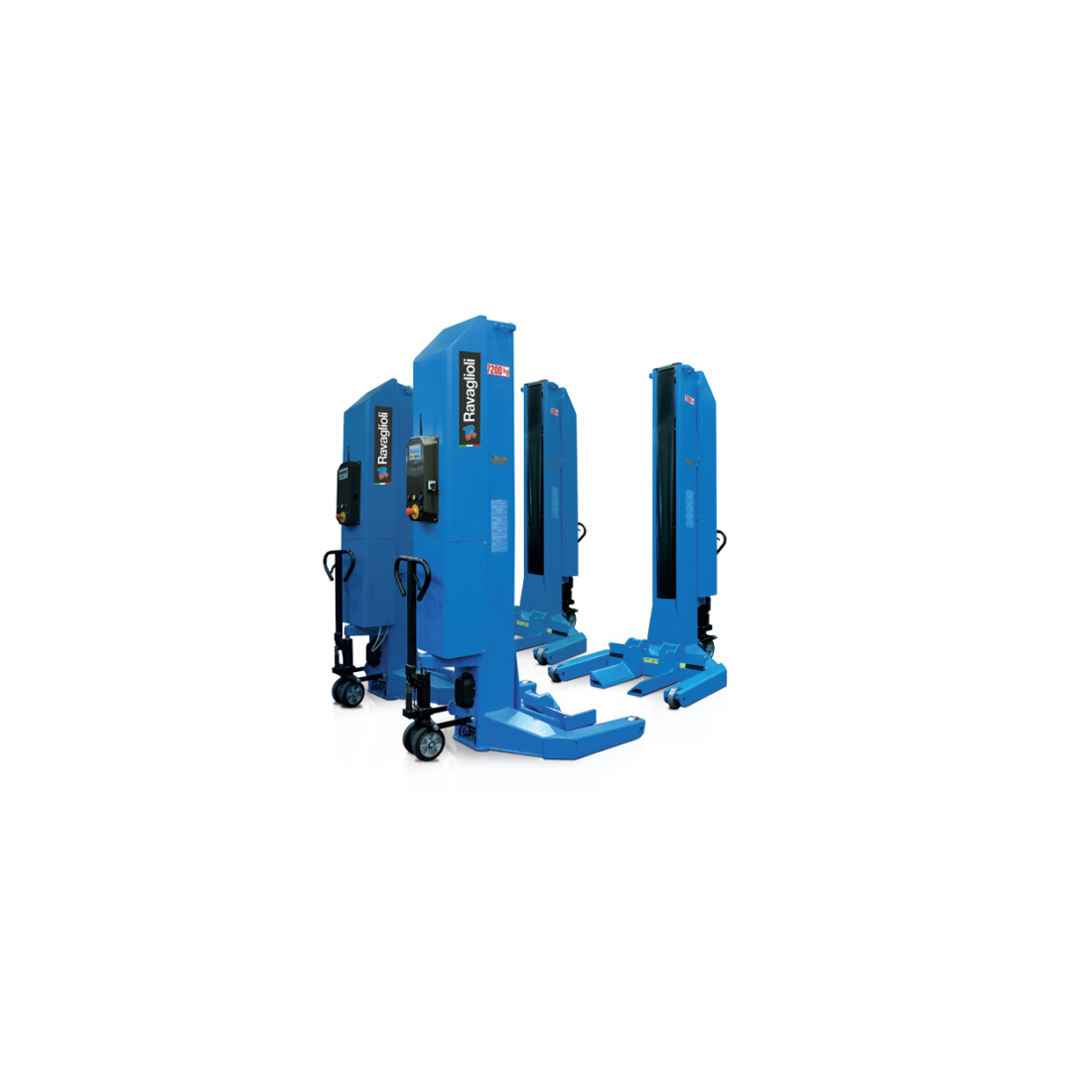

Electro-hydraulic 4-mobile column lift 4 x 5.5 T, RAV305H.4WS, RAVAGLIOLI

Reference: RAV305H.4WS
€36,159.46 Tax incl.
€29,883.85 Tax excl.

Delivery time 1 day

Product set

Product Price Quantity Total
[EP 60 D] Electro-hydraulic... [EP 60 D] Electro-hydraulic press, 60 T, EP 60 D, COMPAC [EP 60 D] €10,489.49 1 €10,489.49
Hydraulic press, 16 T, FP... Hydraulic press, 16 T, FP 16, COMPAC €1,813.79 1 €1,813.79

Product Information

The mobile column lift is a versatile solution for lifting various vehicles, ensuring easy access to the vehicle and allowing for effortless tire and brake maintenance. Dual overload protection and a mechanical locking system guarantee maximum safety. The lift operates using a wireless 2.4 GHz connection between columns with automatic channel selection and display indication. Its intuitive controls make operation simple, while the built-in control panel on each column provides added convenience during use. The lift runs on rechargeable batteries.
Technical Specifications:
Column communication: Wireless
Number of lifting units: 4
Lifting capacity: 22,000 kg
Lifting capacity per column: 5,500 kg
Lifting height: 1,761 mm
Lifting time: 120 s
Lowering time: 45 s
Minimum wheel diameter: 500 mm
Maximum wheel diameter: 1,200 mm
Motor power per cylinder: 0.8 kW
Weight per column: 600 kg
Surface coating: Powder-coated
Dimensions: Width: 1,107 mm, Depth: 1,215 mm, Height: 2,692 mm
Space requirement (width): 1,200 mm
Space requirement (height): 3,775 mm
