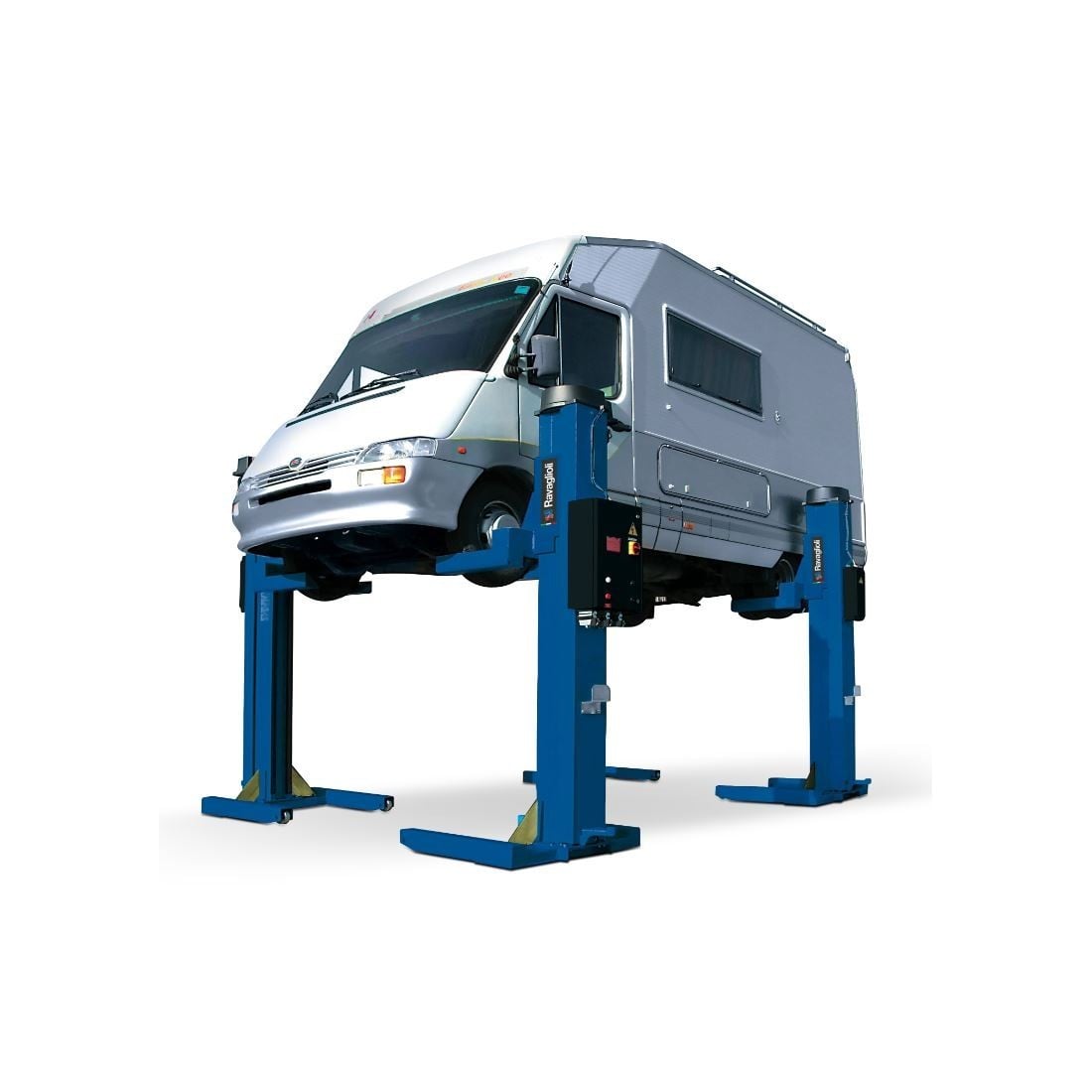

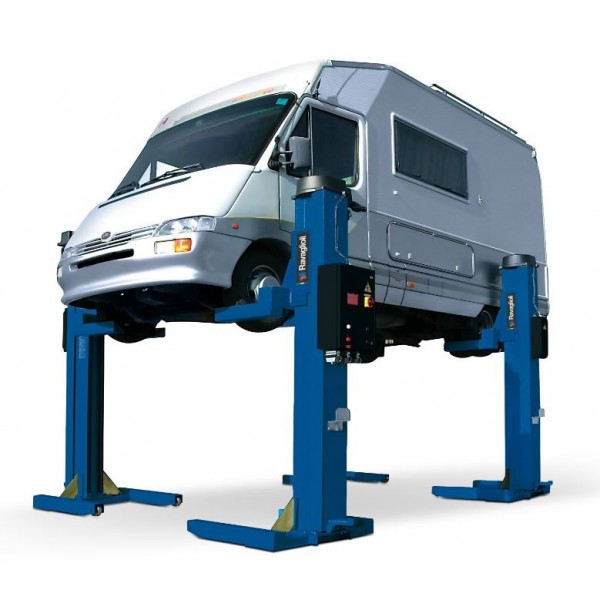

Mobile lifting columns RAV212N (12,000 kg) – 4-column set, Ravaglioli

Electromechanical mobile column lifts designed for trucks and buses. Suitable for use both in workshops and outdoors.
Technical information:
Lift type: 4-column electromechanical mobile column lift
Model: RAV212N
Lifting capacity per column: 3,000 kg
Total lifting capacity: 12,000 kg
Minimum wheel diameter: 500 mm
Maximum wheel diameter: 1,200 mm
Lifting time: approx. 60 s
Maximum lifting height: 1,800 mm
Column height: 2,705 mm
Control type: electromechanical
Synchronization: electronic column synchronization
Application: suitable for indoor and outdoor use
Mobility: each column equipped with wheels for easy transport
Power supply: 400 V / 50 Hz
Motor power: 3.5 kW
Country of origin: made in Italy
Warranty: 12 months
