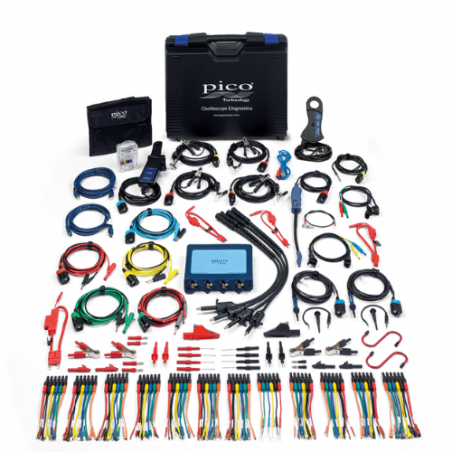

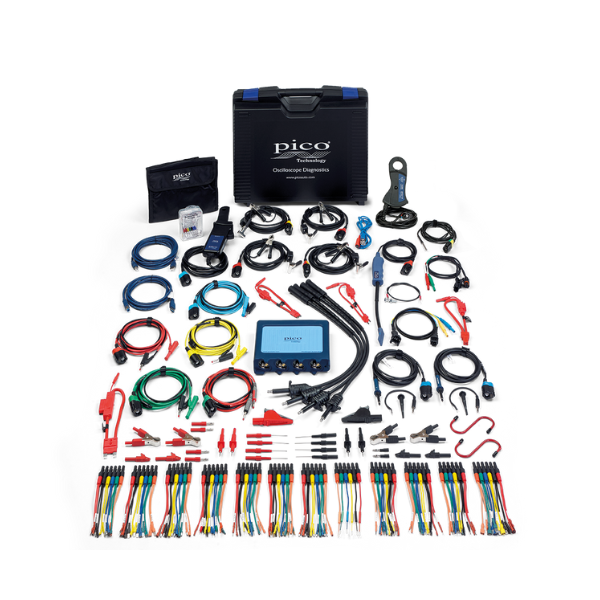

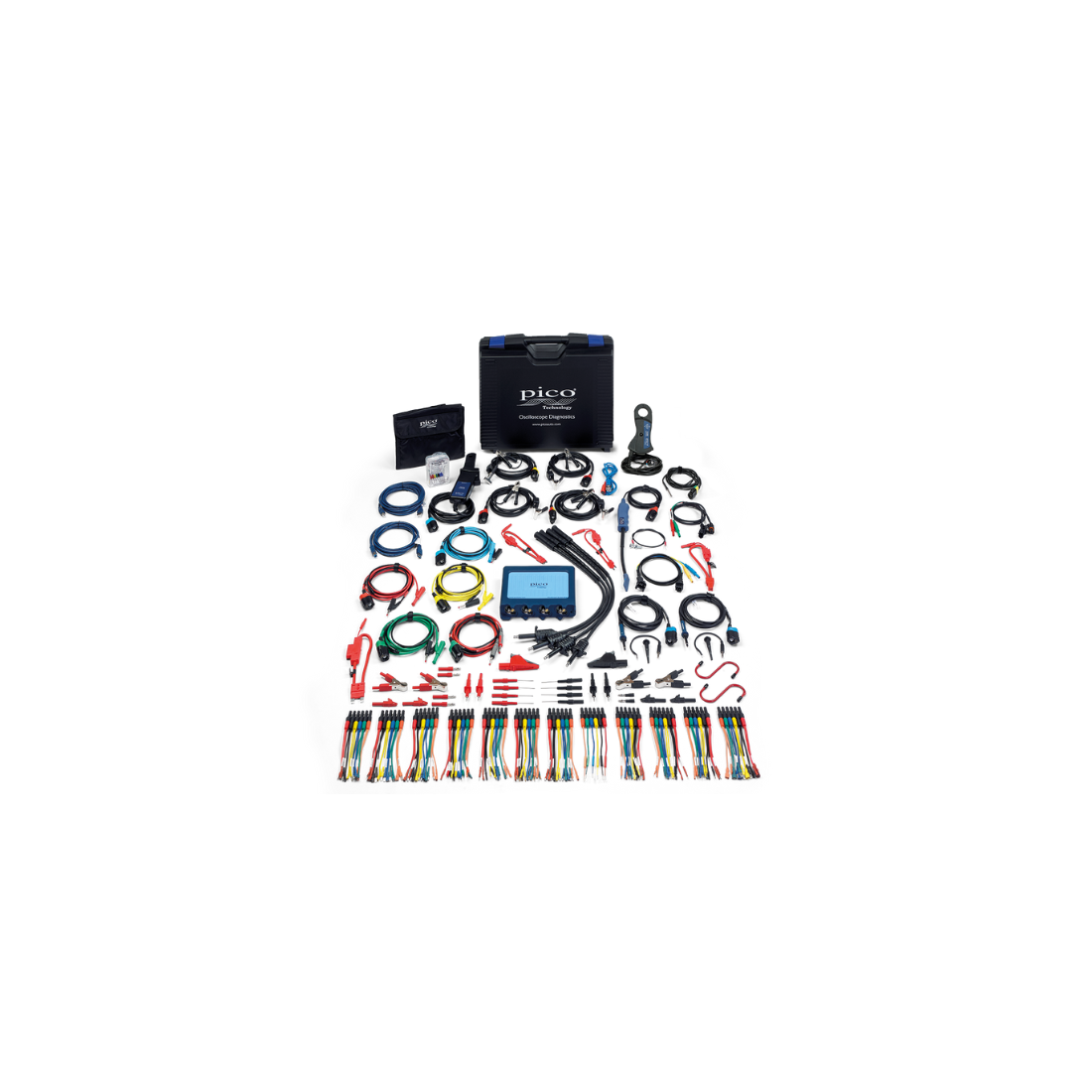

PicoScope 4425A 4-channel advanced diagnostic kit, PQ180, Pico Technology

Pico PQ180 ADVANCED Diagnostic Kit is a professional 4-channel oscilloscope-based solution designed for advanced diagnosis of automotive and commercial vehicle electrical and electronic systems. The kit is built around the PicoScope 4425A module, delivering high measurement accuracy and performance for both everyday workshop use and training environments.
PicoBNC+™ technology enables automatic probe recognition, probe power supply, and fast system setup. The kit is suitable for both beginners and experienced technicians, supporting everything from basic testing to advanced NVH analysis and vehicle network diagnostics.
The system is compatible with PicoScope Automotive and PicoDiagnostics software, which is continuously updated with no subscription fees.
Short technical information:
• Number of channels: 4
• Input ranges: ±50 mV to ±200 V
• Sampling rate: up to 400 MS/s
• Internal memory: 512 MB
• Supported networks: CAN, CAN FD, FlexRay
• PC connection: USB 2.0 / USB 3.0
• NVH diagnostics support
• Compatible with Pico and third-party BNC probes
