Pico Milliohm and Motor Tester Starter Kit, PQ326, Pico Technology

Pico Low-Resistance (Milliohm) and Electric Motor Testing Starter Kit, PQ326 is designed for professional low-resistance and electric motor winding testing across transportation, industrial, energy, and special-purpose applications. The kit is built around the MT03A low-resistance (milliohm) and electric motor testing device, enabling a complete 3-phase motor winding resistance test in less than one minute with high measurement accuracy.

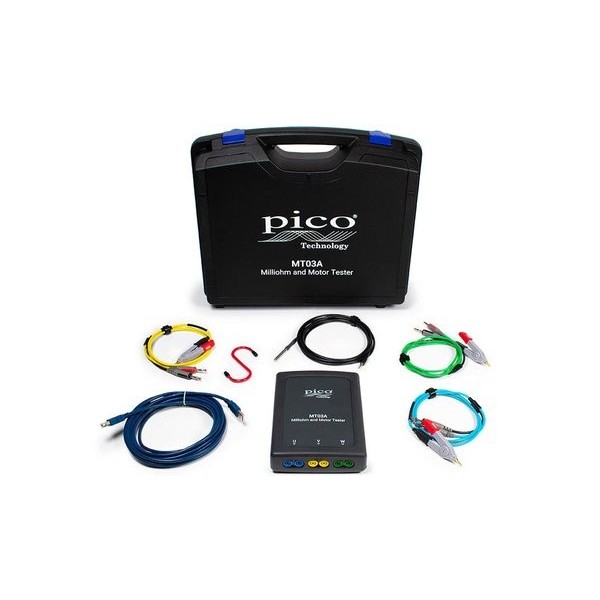

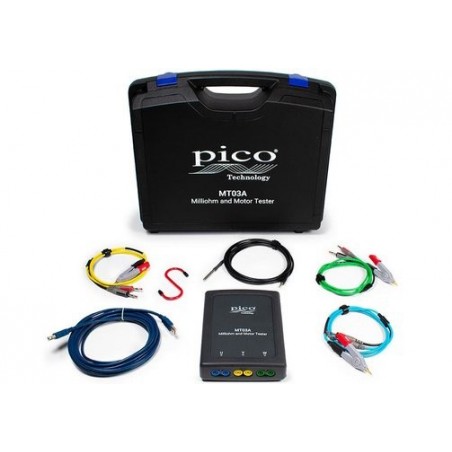

The included Kelvin-type test leads and wide-range temperature probe ensure precise, repeatable measurement results with automatic temperature compensation. The testing equipment is supplied in a robust carry case, allowing safe storage and convenient use in workshop or field environments.
Short technical information:
• Resistance measurement range: up to 2 Ω
• Resistance resolution: 10 µΩ
• Minimum test current: 200 mA
• Temperature measurement range: –40 °C to +125 °C
• Input protection: ±30 V
• PC connection: USB
