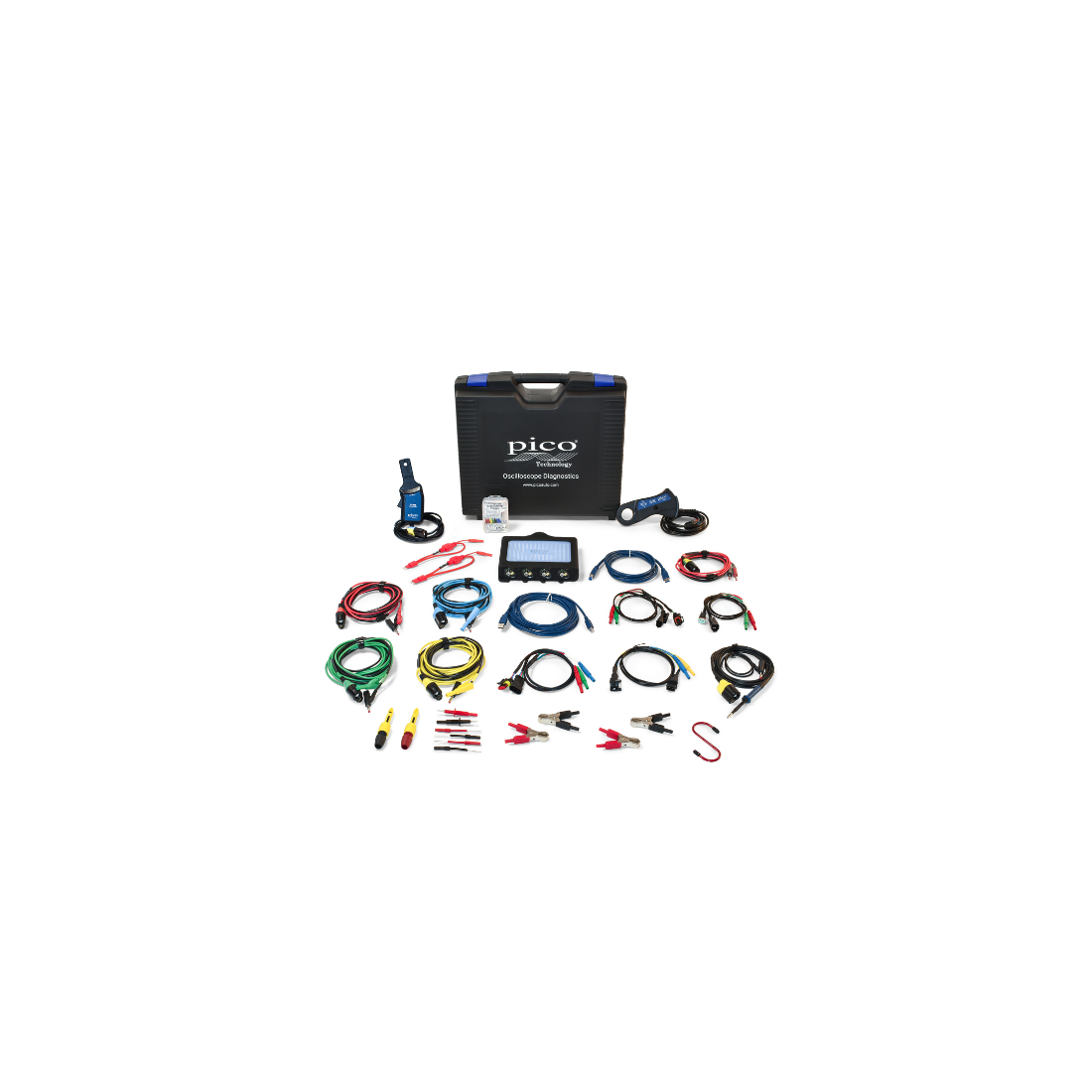

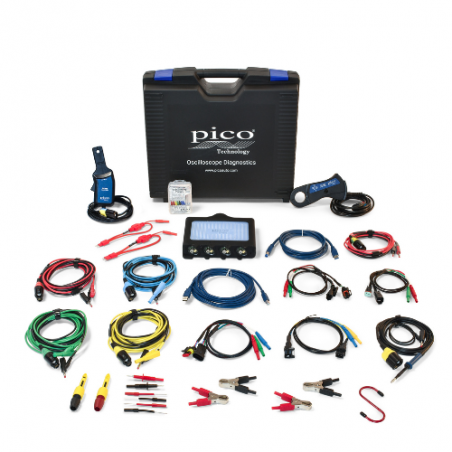

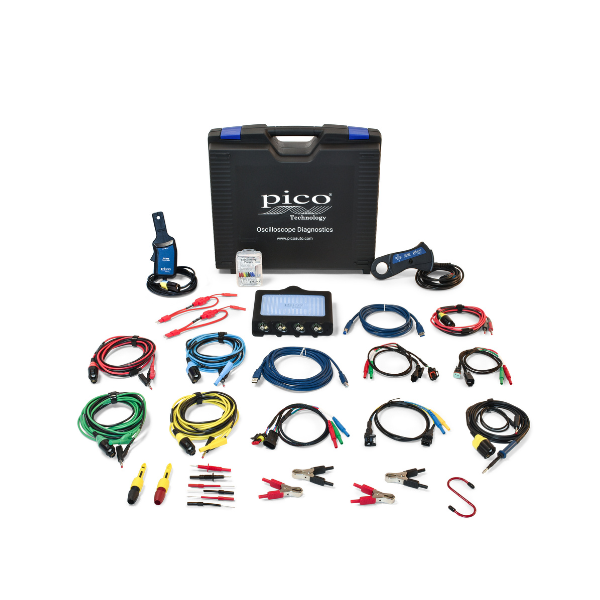

PicoScope 4425A Off-Highway diagnostic kit, PQ324, Pico Technology

PicoScope 4425A Off-Highway Diagnostic Kit is designed for professional diagnostics of heavy-duty and special-purpose machinery operating off public roads, such as construction, agricultural, forestry, industrial, and mining equipment. The kit is suitable for trucks, tractors, excavators, loaders, combine harvesters, and similar machines that typically use 24 V electrical systems and high-current circuits.
The kit is built around a modified 4-channel PicoScope 4425A oscilloscope module with additional protection to withstand demanding off-highway working environments. Specially selected accessories allow fast, non-intrusive testing of electrical systems, engine management, hydraulics, and J1939 communication networks.
The kit is compatible with PicoScope Automotive software and dedicated HD-OH guided tests, enabling structured diagnostics of 24 V batteries, engines, Common Rail fuel systems, Denoxtronic systems, and hydraulic components, with no subscription fees.
Short technical information:
• Channels: 4
• Input ranges: ±50 mV to ±200 V
• Sampling rate: up to 400 MS/s
• 24 V systems and high-current diagnostics
• J1939 communication support
