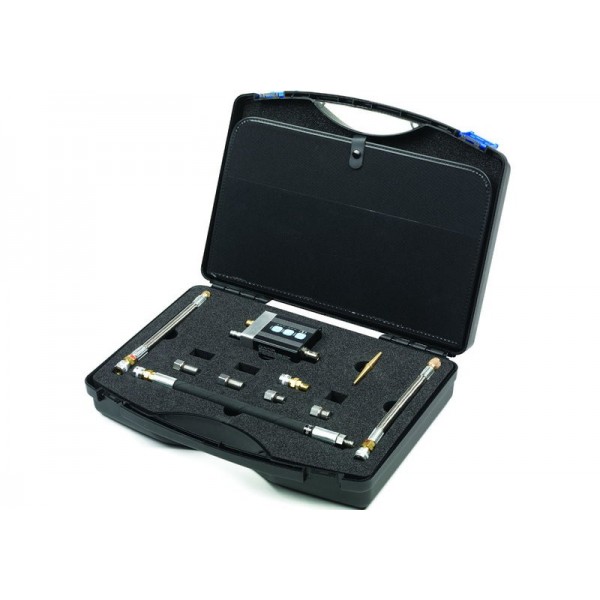

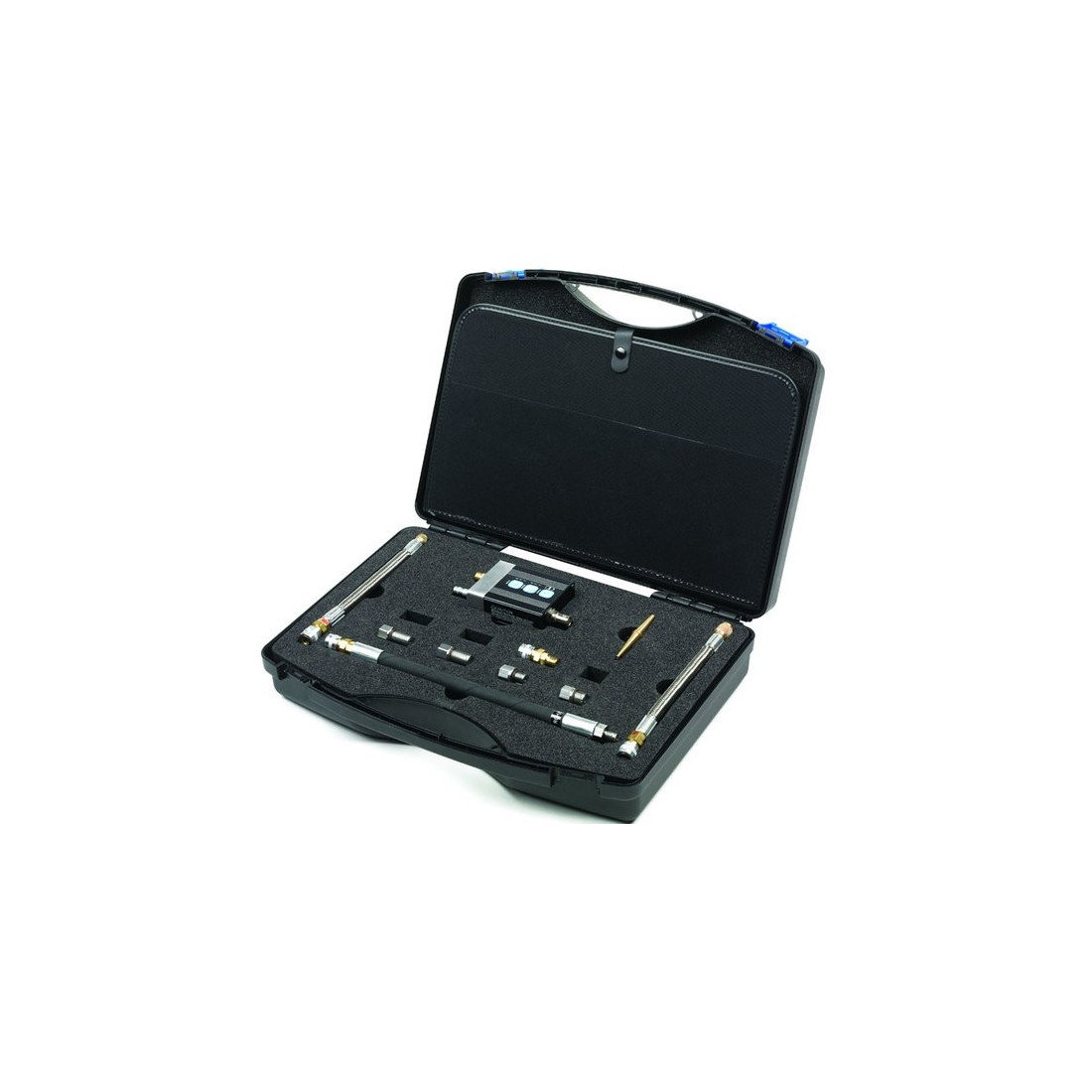

WPS500X Pressure Transducer Kit with Carry Case and Foam Insert, PQ052, Pico Technology

WPS500X Pressure Transducer Kit with Carry Case and Foam Insert, PQ052, Pico Technology is a professional pressure measurement solution for automotive diagnostics, designed for analysing dynamic and static pressure signals using an oscilloscope. The kit is intended for work on engine, fuel, vacuum, intake and exhaust systems where high measurement speed and high signal resolution are required.
The WPS500X enables real-time monitoring of pressure changes and pulsations, making it particularly suitable for advanced mechanical system diagnostics. The robust carry case with a precisely cut foam insert ensures safe, organised and convenient storage of all components in a workshop environment.
Technical information:
Measurement type: automotive pressure transducer for oscilloscope use.
Maximum pressure range: up to 500 psi (approx. 34.5 bar).
Minimum detectable pressure change: approx. 0.07 psi (5 mbar).
Response time: approx. 100 µs (0–90%).
Measurement modes: vacuum, low pressure and high pressure.
Calibration: automatic zeroing.
Additional features: integrated pressure release valve, signal zoom analysis.
Compatibility: PicoScope and other oscilloscopes with BNC input.
