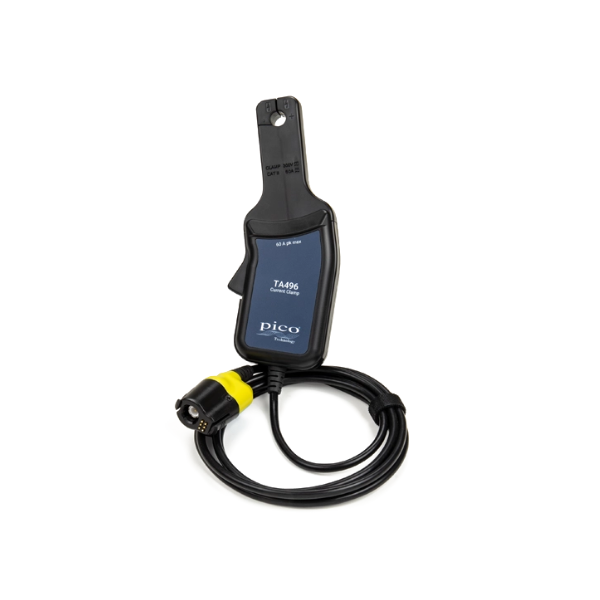

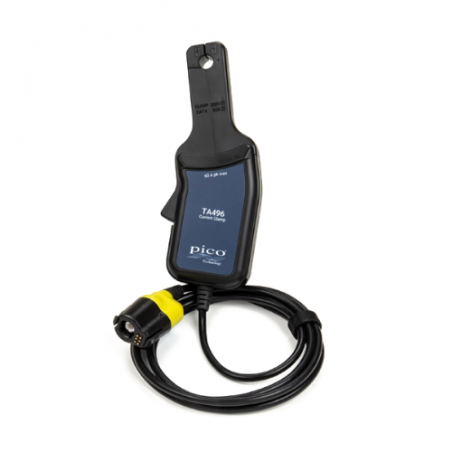

PicoBNC+ compact 60 A AC/DC current clamp, TA496, Pico Technology

PicoBNC+ TA496 60 A AC/DC compact current clamp is designed for accurate low-current measurements in automotive diagnostics, especially in tight and hard-to-reach areas. Its compact form factor fits comfortably in the hand, making it ideal for testing injectors, ignition coils, EGR and throttle actuators, fuel pumps, window motors, and wiper motors.
Equipped with PicoBNC+™ technology, the clamp is automatically recognized and configured when connected to a PicoScope oscilloscope, with automatic range selection and no batteries required. Power is supplied directly from the oscilloscope, and automatic zeroing ensures stable and reliable measurements. The clamp can also be used for battery current drain and lambda sensor signal analysis.

Short technical information:
• Current range: ±10 A / ±60 A AC/DC
• Frequency range: DC to 40 kHz
• Resolution: up to 5 mA
• Maximum voltage: CAT II 300 V
• Connection: PicoBNC+
• Power supply: via oscilloscope
