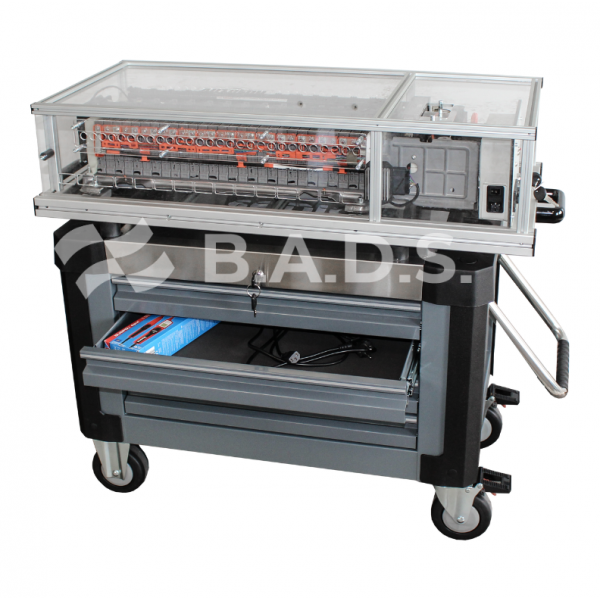

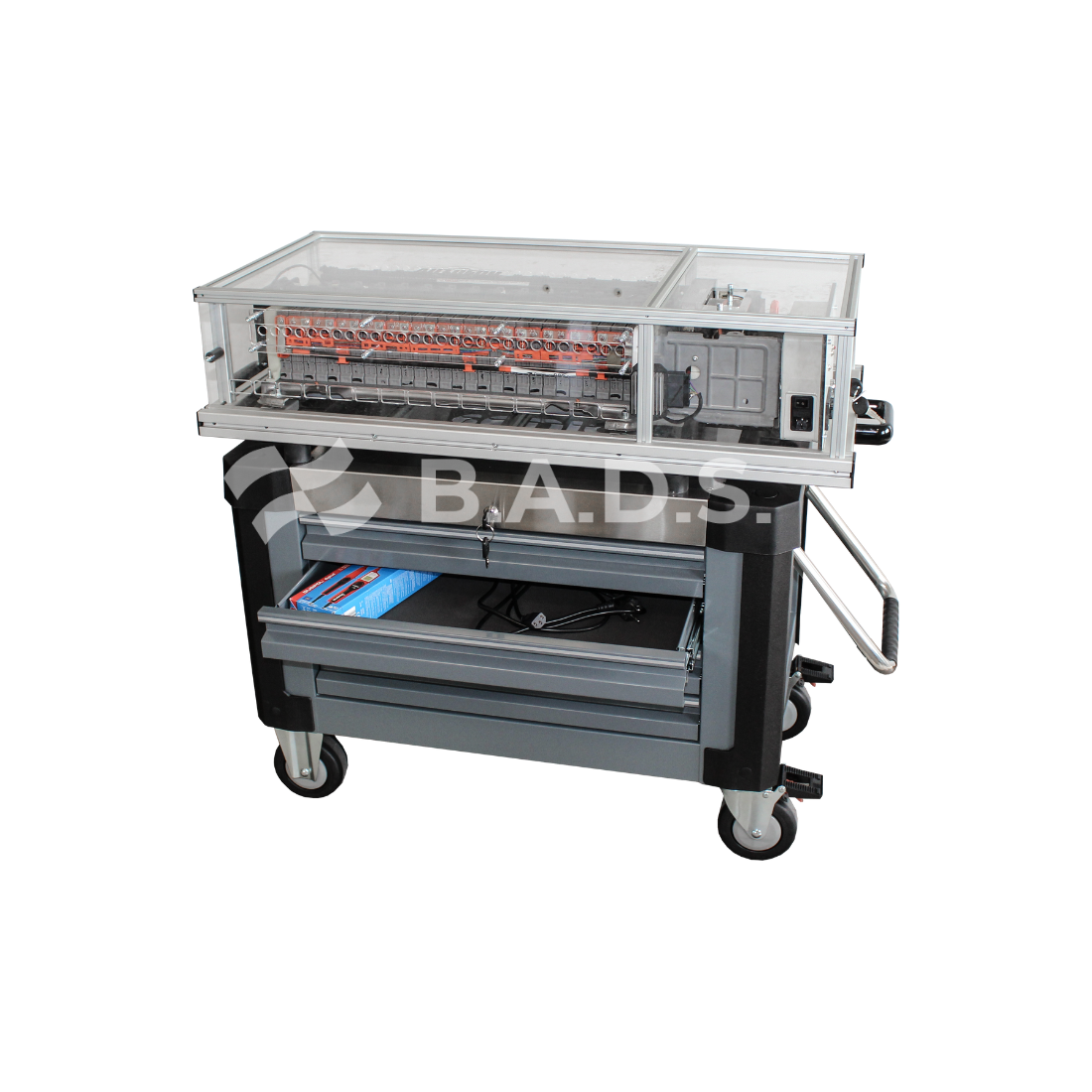

High Voltage Battery Educational Trainer on a trolley HYBBAT01-TR

High Voltage Battery Training Stand with Transport Trolley
Manufactured using original automotive components, this high-voltage device is designed for safe use in educational environments.
The structure provides a clear view of all components, including controllers, control units, battery blocks/cells, and other elements. The battery model features a high-voltage disconnect fuse, easily accessible for training purposes.

Equipped with a Ni-MH type battery, this training stand is designed for safe preparation, repair, and maintenance of hybrid and electric high-voltage vehicle systems. The training board allows safe demonstration and practice of fuse activation and deactivation.

Specifications:

Dimensions: 960 x 455 x 255 mm
Weight: 49 kg
Power Supply: 230 V
Battery Type: Ni-MH battery pack with 168 cells (1.2 V each), nominal voltage 201.6 V
Battery Control Functions: Current sensor, System Main Relay (SMR), Battery ECU for monitoring and management
Mounted on a transport trolley
AEHVS01 High Voltage Safety Equipment Kit
Includes protective gloves, digital voltage tester, safety glasses, protective tape, warning triangle, double-sided warning sign, and a multimeter for working with high-voltage vehicles.
