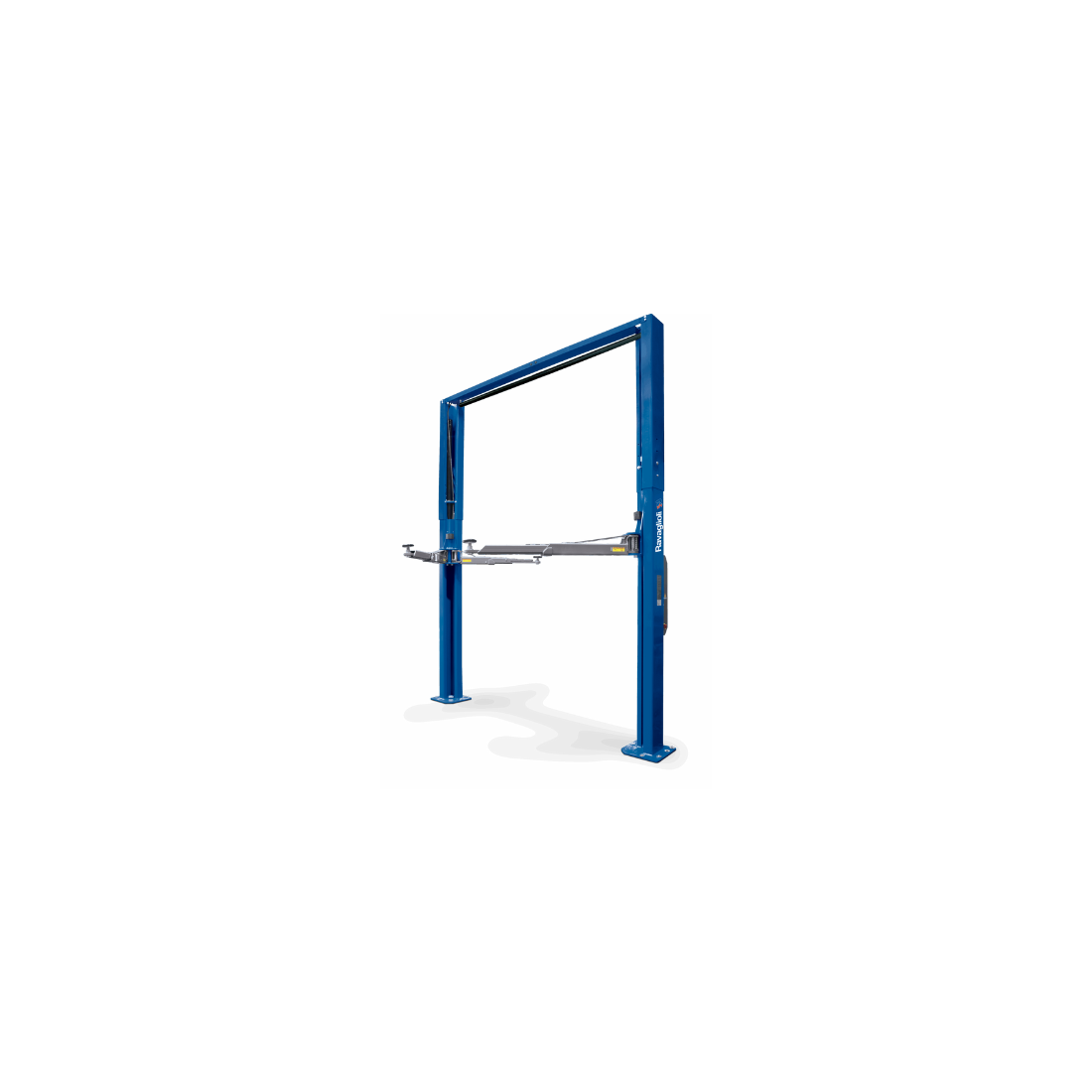

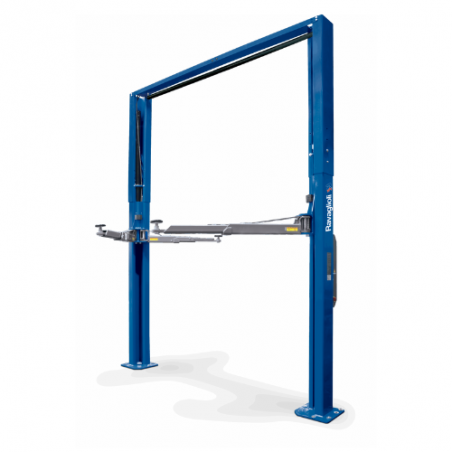

KPH35RM Medium Sports Car – Two-Post Electro-Hydraulic Lift (RAV.KPH35.197276), Ravaglioli

The KPH35RM Medium Sports Car is a Horizon-series two-post electro-hydraulic lift specially designed for sports and low-profile vehicles. It offers a lifting capacity of 3,500 kg, lower-profile asymmetrical telescopic arms, dual control panels, and an Energy Kit for fast and flexible setup, even in tight spaces. The lift features cable-free hydraulic synchronization, automatic arm locking, and a mechanical harpoon lock for enhanced reliability and safety.
Technical specifications
Lifting capacity: 3,500 kg
Lifting height: 2,009 mm
Pad height: 80–125 mm
Lifting / lowering time: 32 s / 30 s
Drive-through width: 2,456 mm
Column spacing (inner / outer): 2,700 / 3,162 mm
Column height: 2,735 mm; min room height: 4,250 mm
Installation heights: 3,940 / 4,055 / 4,170 mm
Arms: telescopic, low-profile; front 585–1,195 mm, rear 585–1,195 mm
Synchronization: hydraulic, cable-free
Controls: dual push-button panels
Safety: automatic arm locking, harpoon lock, mechanical sync protection
Cylinders: integrated, maintenance-free
Motor / power supply: 2.6 kW / 400 V, 3-phase, 50 Hz
