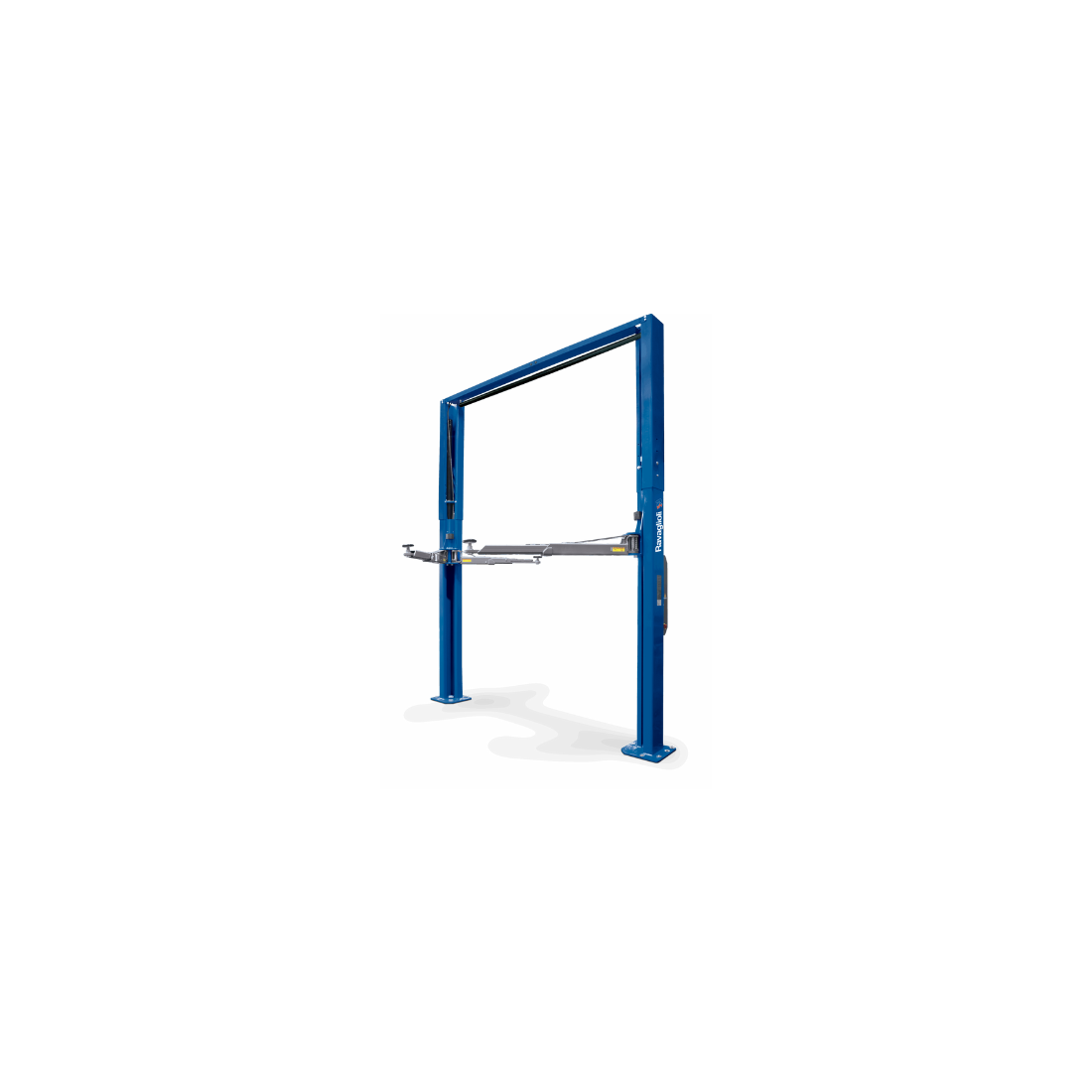

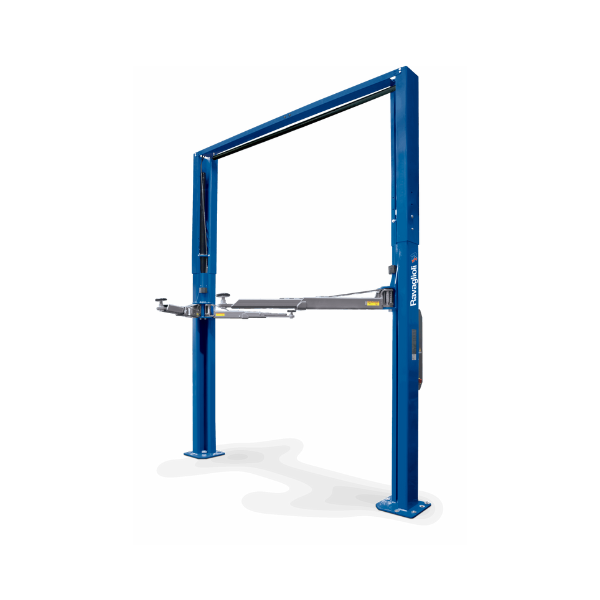

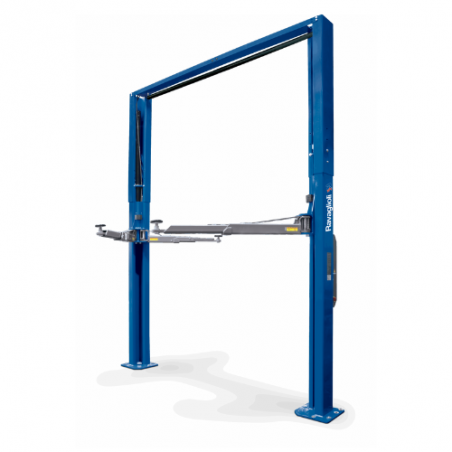

KPH35M Medium – two-post electro-hydraulic lift, Ravaglioli, RAV.KPH35.197252

The KPH35M Medium is a two-post electro-hydraulic lift designed for lifting passenger and light commercial vehicles up to 3,500 kg. It features dual control panels, cable-free hydraulic synchronization, automatic arm locking during lowering, and robust mechanical safety. Wide arm adjustment and multiple installation heights allow for flexible use in different workshop layouts and with various vehicle types.
Technical specifications
Lifting capacity: 3,500 kg
Lifting height: 2,011 mm
Pad height: 102–161 mm
Lifting / lowering time: 32 / 30 s
Drive-through width: 2,456 mm
Column spacing (inner / outer): 2,700 / 3,162 mm
Column height: 2,735 mm; min. room height: 4,250 mm
Installation height options: 3,940 / 4,055 / 4,170 mm
Arms: telescopic, asymmetrical; front 550–1,105 mm, rear 876–1,473 mm
Synchronization: hydraulic, cable-free
Controls: dual push-button panels
Safety: automatic arm locking, harpoon lock, mechanical sync protection
Cylinders: integrated, maintenance-free
Motor / power supply: 2.6 kW / 400 V, 3-phase, 50 Hz
