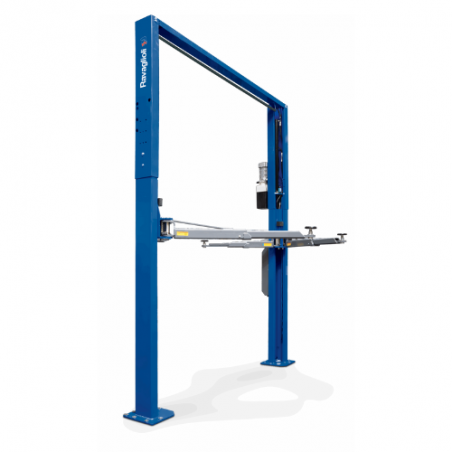

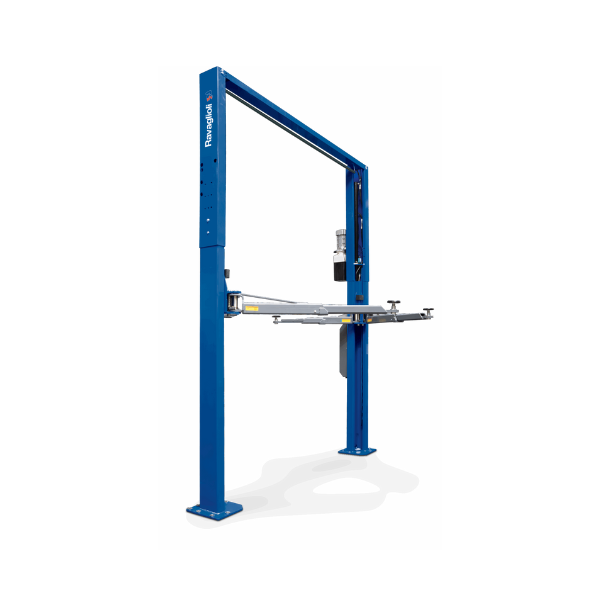

Ravaglioli KPH35 Standard – Two-Post Electro-Hydraulic Lift, Ravaglioli, RAV.KPH35.197245

The KPH35 Standard is a modern two-post electro-hydraulic lift designed for lifting passenger and light commercial vehicles up to 3,500 kg. Its robust structure features a cable-free hydraulic synchronization system, maintenance-free cylinders integrated into both posts, automatic mechanical arm locking, and a simple push-button control panel. Three different installation heights allow adaptation to various workshop ceilings, while a wide arm adjustment range ensures compatibility with various vehicle sizes.
Technical specifications
Lifting capacity: 3,500 kg
Lifting height: 2,011 mm
Minimum pad height: 102 mm
Maximum pad height: 161 mm
Lifting time: 32 s
Lowering time: 30 s
Drive-through width: 2,456 mm
Distance between columns (internal/external): 2,700 / 3,162 mm
Column height: 2,735 mm
Minimum ceiling height for installation: 4,250 mm
Installation height options: 3,940 mm / 4,055 mm / 4,170 mm
Arm type: telescopic, asymmetrical
Front arm length: 550–1,105 mm
Rear arm length: 876–1,473 mm
Synchronization: hydraulic, cable-free
Cylinders: integrated, maintenance-free
Safety system: automatic mechanical arm locking
Control: push-button panel with limit switch
Motor power: 2.6 kW
Power supply: 400 V / 50 Hz / 3 Phases
