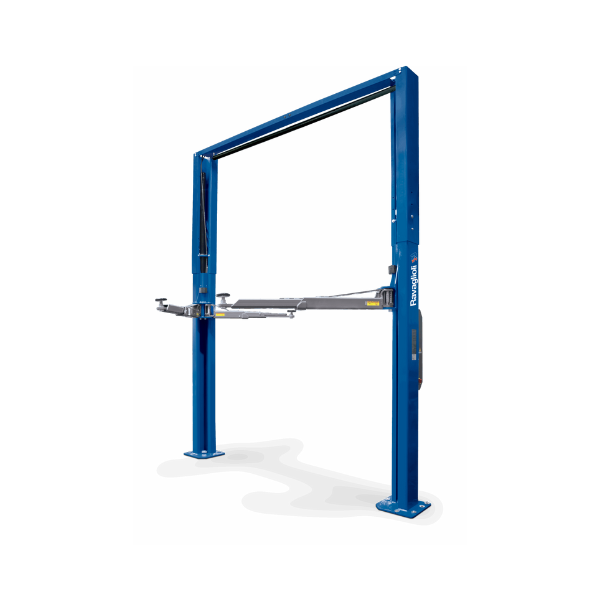

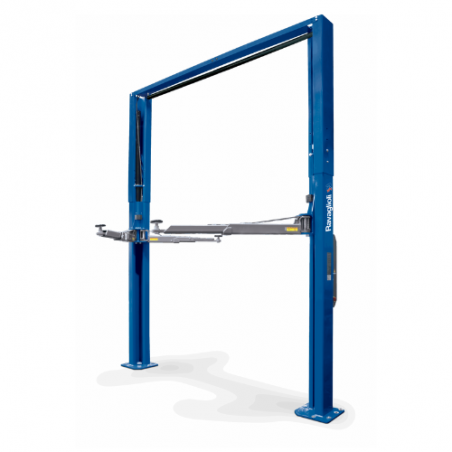

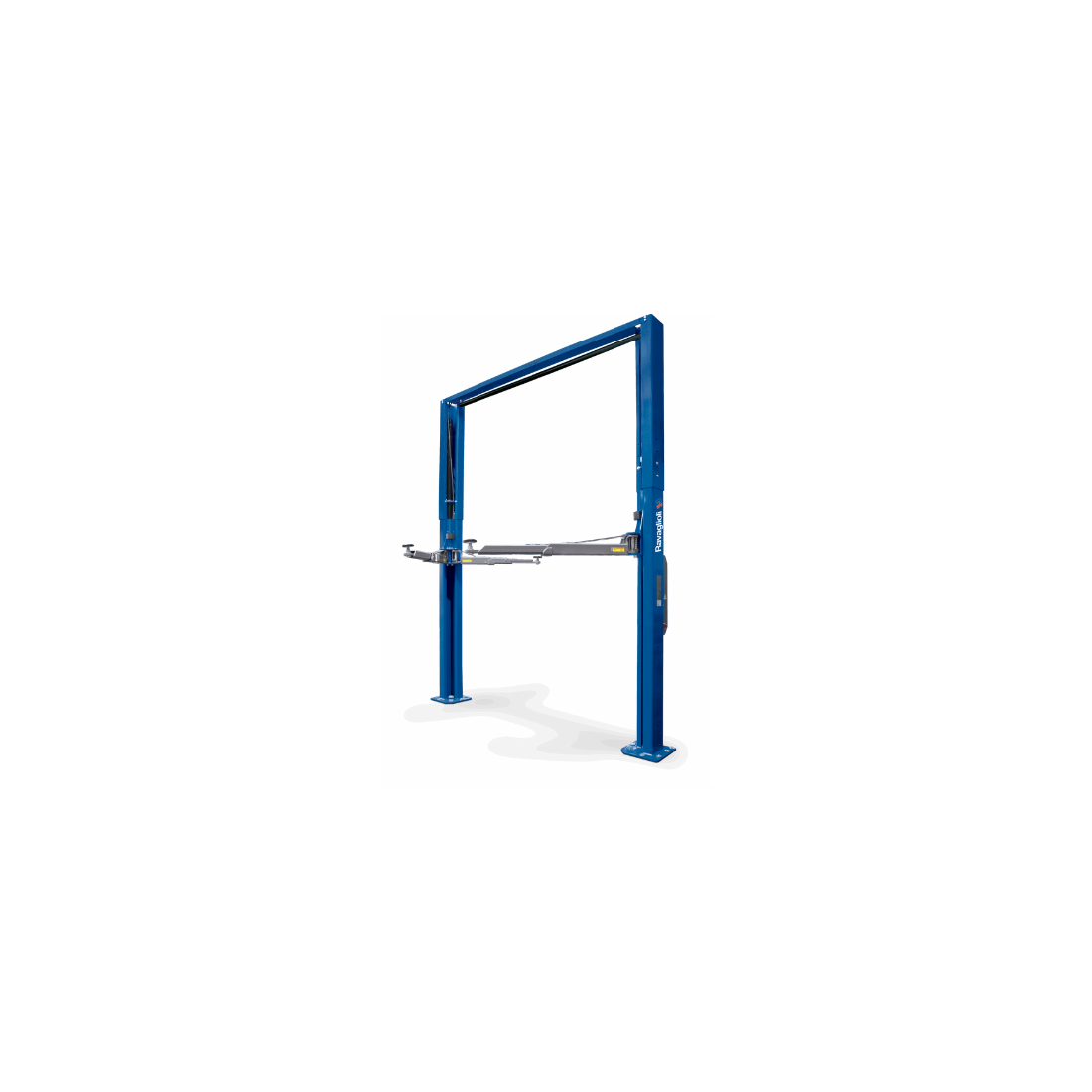

KPH35EVP Premium Electric Vehicles – two-post electro-hydraulic lift RAV.KPH35.197283, Ravaglioli

The KPH35EVP is a Horizon-series electro-hydraulic two-post lift with a 3,500 kg capacity, designed for electric vehicles. It incorporates low-profile asymmetrical EV arms and an Energy Kit for safe battery pack access. Featuring dual push-button control panels, cable-free hydraulic synchronization, automatic arm locking, and a mechanical harpoon lock, this model offers maximum safety. Internal cylinder placement protects against external impact, while adjustable column spacing provides flexibility for space-limited workshops and quick installation setup.
Technical specifications
Lifting capacity: 3,500 kg
Lifting height: 2,011 mm
Pad height: 96–156 mm
Lifting / lowering time: 32 s / 30 s
Drive-through width: 2,456 mm
Column spacing (inner / outer): 2,700 / 3,162 mm
Column height: 2,735 mm; min. room height: 4,250 mm
Installation heights: 3,940 / 4,055 / 4,170 mm
Arms: telescopic, asymmetrical EV type
Front arm length: 668–1,143 mm
Rear arm length: 686–1,474 mm
Synchronization: hydraulic, cable-free
Controls: dual push-button panels
Safety: automatic arm locking, harpoon lock, mechanical sync protection
Cylinders: integrated, maintenance-free
Motor / power supply: 2.6 kW / 400 V, 3-phase, 50 Hz
