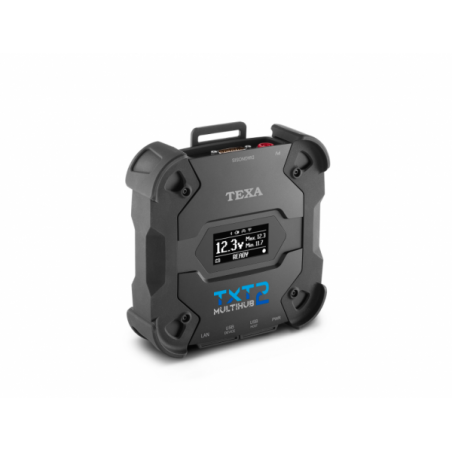

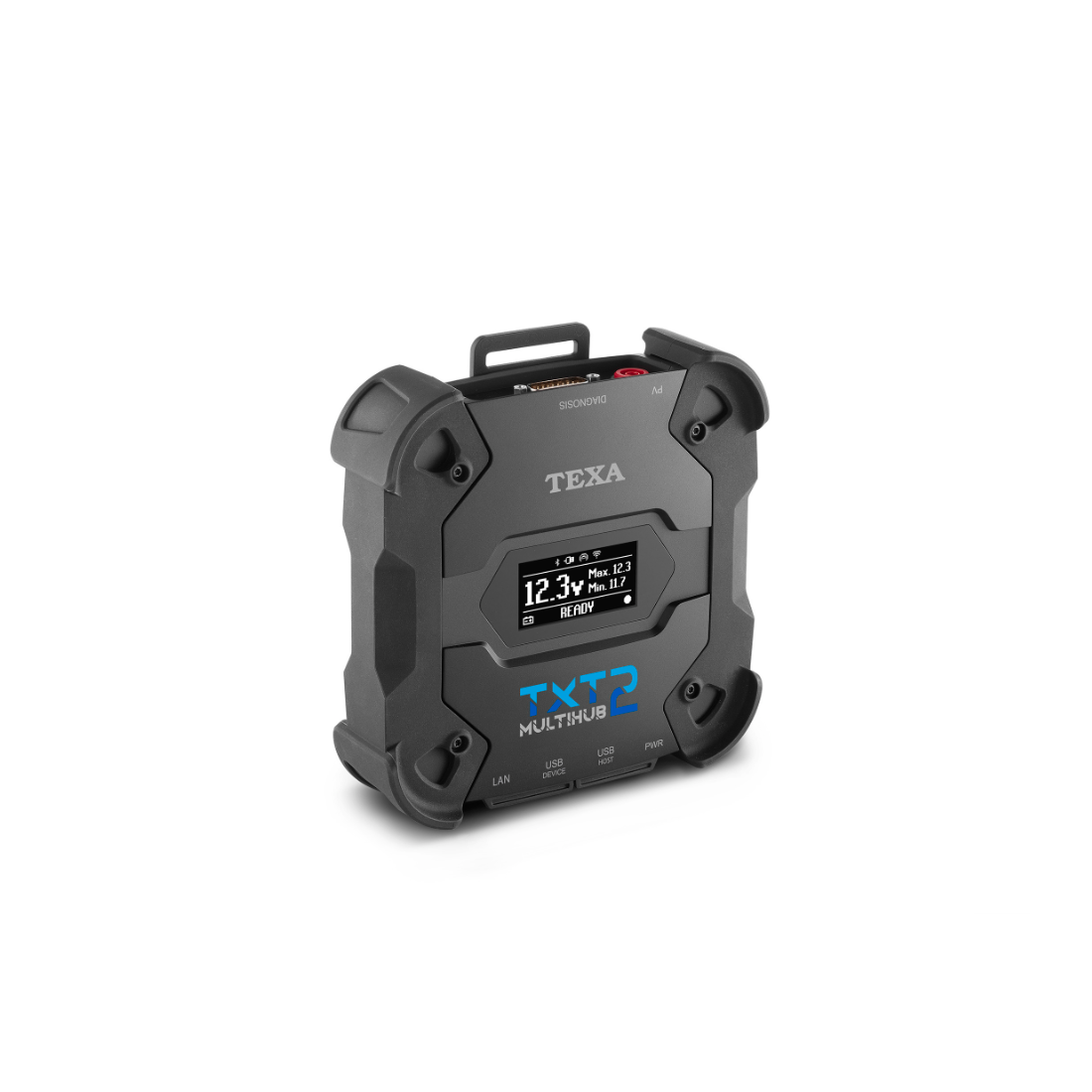

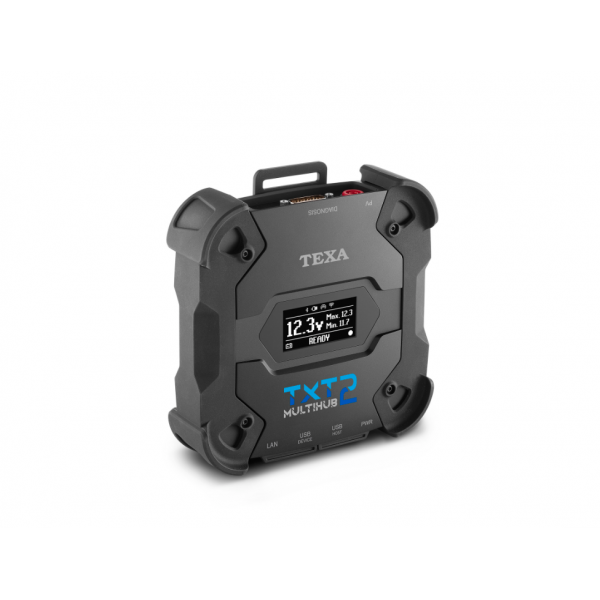

Diagnostic Interface TEXA NAVIGATOR TXT MULTIHUB 2, D195A0

The NAVIGATOR TXT MULTIHUB 2 diagnostic module is a professional, multifunctional vehicle diagnostic device designed for use with various types of transport, including passenger cars, trucks, motorcycles, agricultural and construction machinery, and marine vessels.
Key technical specifications:
Power supply: 12–24 V (from vehicle battery)
Current consumption: 1 A @ 12 V / 0.5 A @ 24 V
Main processor: iMX6, 1 GHz
Memory: RAM: 512 MB; Internal: 8 GB eMMC
Connectivity: Wi-Fi (IEEE 802.11 b/g/n); Bluetooth (BDR/EDR/LE)
Interfaces: USB 2.0 (host and device); Ethernet (for DoIP diagnostics)
Diagnostic connector: DSUB-26HD (ISO 22900-1)
Display: Integrated 2.42″ OLED display (64 × 128 resolution); real-time battery voltage and operating status display
Operating temperature: 0 to +50 °C
Storage temperature: –20 to +60 °C
Humidity: 10–80% (non-condensing)
Weight: approx. 600 g
Protection rating: IP53 (dust and splash resistant)
Durability: Shock-resistant (MIL-STD 810G compliant)
Supported protocols:
CAN, CAN FD (up to 4 channels)
DoIP (ISO 13400)
Pass-Thru (SAE J2534-1/2)
ISO 9141-2, ISO 14230
SAE J1850, J1708, and others
