RAVTD6000TB.3 – portable CCD wheel aligner RAV.TD600.702036, Ravaglioli

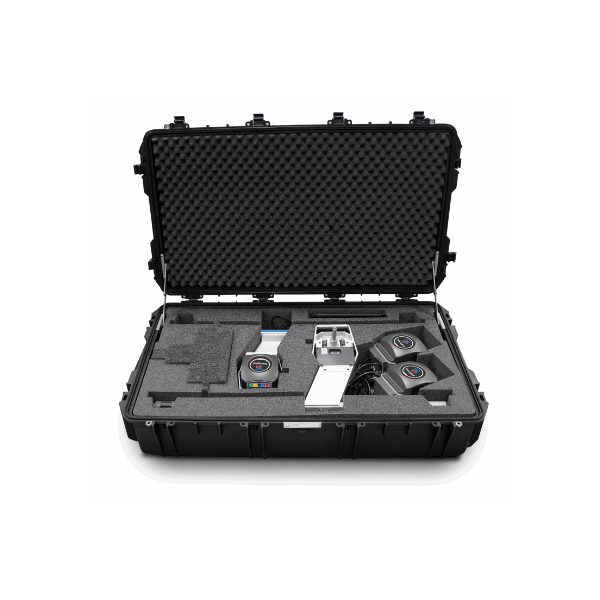

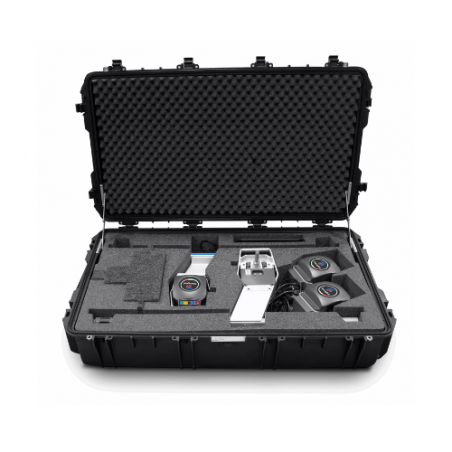

Mobile CCD wheel aligner designed for heavy-duty vehicles such as trucks, buses, trailers, and motorhomes. The compact system is stored in two rugged IP67 wheeled cases and includes 6 low-profile CCD sensors, 3-point STDA92 clamps, cylinder adapters, and a 12″ Windows tablet with drop protection, IP65 rating, and wireless connectivity.
Infrared communication is used between measuring heads and Bluetooth connects to the tablet, enabling fast and precise multi-axle alignment. The software supports guided workflows, automatic report generation, and access to a multi-brand vehicle database. The transport cases are chemical- and temperature-resistant (–33 °C to +90 °C), fully made in Italy, and designed for workshop mobility.
Technical specifications:
Measuring system: 6-sensor CCD
Data transfer: Infrared (head-to-head), Bluetooth (to tablet)
Measurement ranges:
– Steered angle / Total toe / Turning angle diff.: ±20°
– Camber: ±10° | Caster & SAI: ±18°
– Setback / Thrust angle / Toe-out on turns: ±5°
Wheel size: 12″ to 28″ | Max. wheel Ø: 1,220 mm | Max. wheelbase: 4,500 mm
Tablet: 12″ LCD (1200×1920), 8 GB RAM, <800 g, IP65, drop resistance up to 1.2 m
Case features: IP67, self-lubricating wheels, extreme temperature tolerance
Power supply: 230 V, 50–60 Hz
Total system weight: 133 kg
