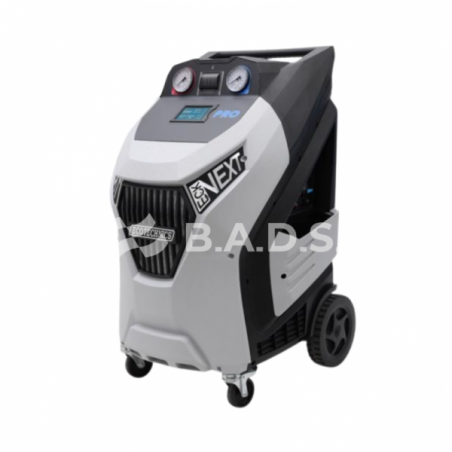

A/C Charging Station ECK NEXT PRO, Ecotechnics

ECK NEXT PRO is designed for working with different refrigerant types – R134a or HFO1234yf. This fully automatic A/C charging station is equipped with an additional oil/tracer container and an integrated cylinder heater for increased efficiency. The Hybrid function comes as standard, allowing the flushing of service hoses and internal circuits, essential for servicing systems with an electric compressor.
Key Features:
Fully automatic A/C system for refrigerant recovery, recycling, and charging
5” color touchscreen display – easy and intuitive navigation
Energy-saving 12V solenoid valve technology
Automatic leak detection during the vacuum phase
Integrated Hybrid function – for service hose and internal circuit flushing
Additional oil and UV tracer management system – using hermetic or refillable containers
Large side pockets – for convenient storage of longer hoses
Internal cylinder heater – ensures optimal refrigerant charging
Wi-Fi connectivity available upon request – for seamless software updates
Complete database – includes passenger cars, commercial, and agricultural vehicles
Technical Specifications:
Refrigerants: R134a or HFO1234yf
Vacuum pump: 51 l/min, vacuum level 0.2 mbar
Compressor: 1/3 HP
Recovery speed: 300 g/min (liquid phase)
Internal refrigerant tank: 12 l (refillable)
Operating temperature: 11–49 °C
Power supply: 220-240V 50/60 Hz
Dimensions / weight: 67 x 68 x 108 cm, 63 kg
