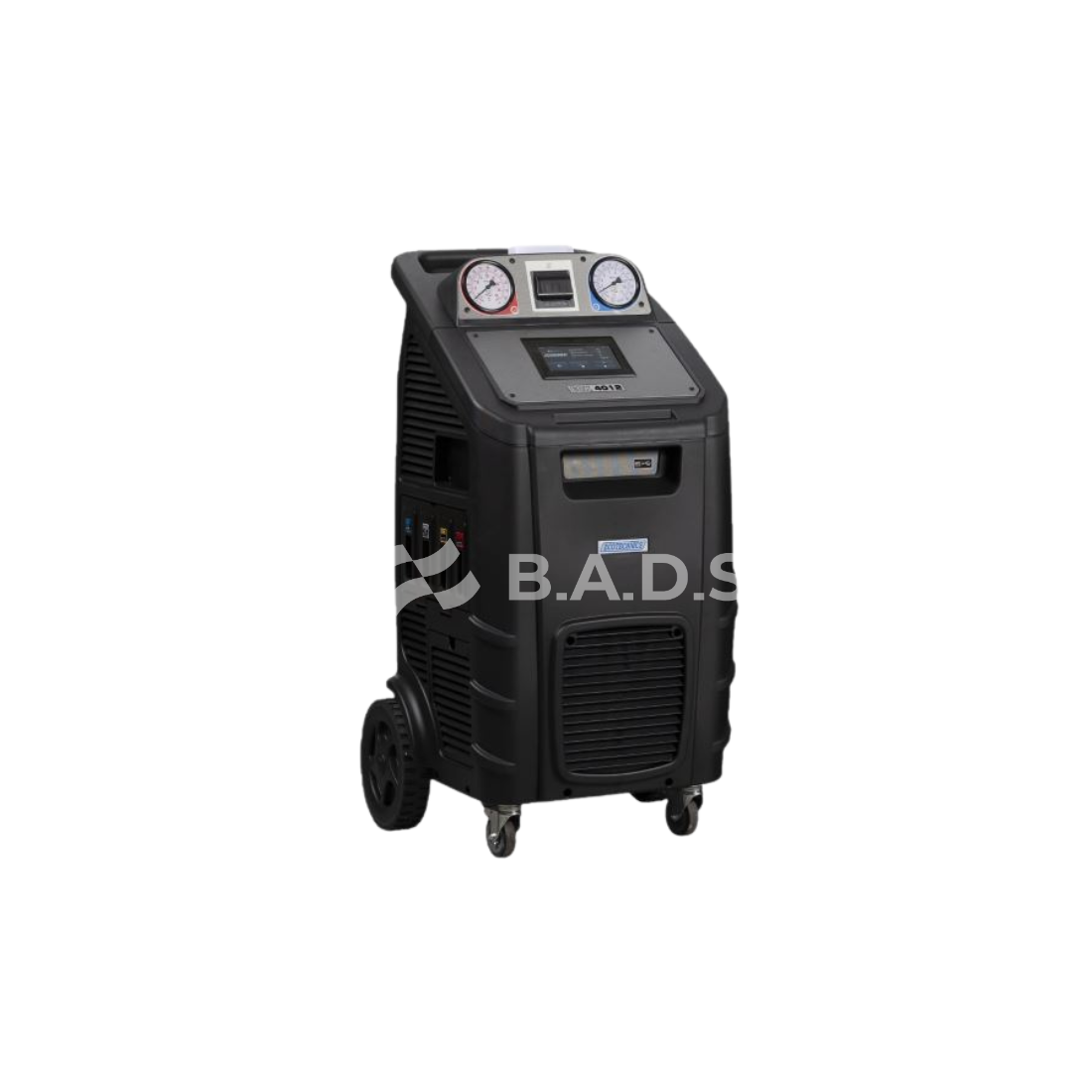

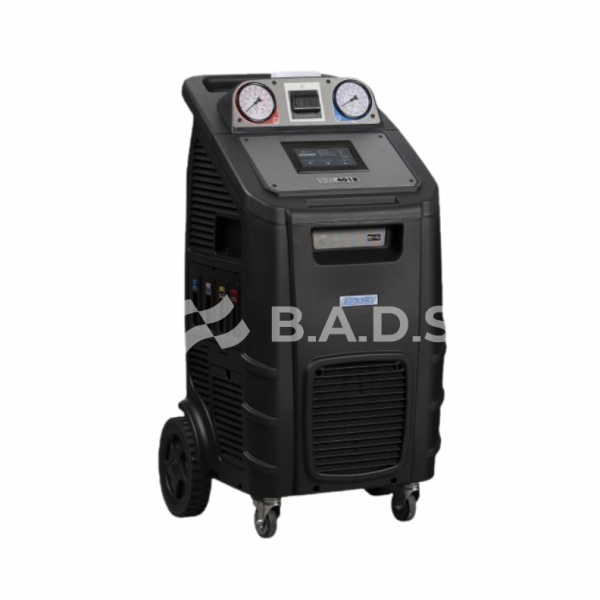

A/C Charging Station ECK 4012, Ecotechnics

The ECK 4012 is a top-tier air conditioning service unit, designed with cutting-edge technology and high-quality components for optimal performance and ease of use. Its 7” touchscreen display ensures intuitive navigation, while the refrigerant configuration is set upon the first activation, making it a future-proof solution for workshops.
Key Features:
Fully automatic recovery, recycling, and recharging for R134a or HFO1234yf
Refrigerant selection upon activation (R134a or HFO kit)
Hybrid function for flushing service hoses and internal circuits
Automatic non-condensable gas purge for efficiency
Wi-Fi connectivity and built-in thermal printer
Nitrogen or hydrogen/nitrogen pressure test for leak detection
12L refillable refrigerant tank and 100 l/min vacuum pump
Technical Specifications:
Vacuum pump: 100 l/min, 0.1 mbar
Recovery speed: 300 g/min (liquid phase)
Oil & dye management: Hermetic containers (2+1)
Operating temperature: 11–49°C
Power supply: 220-240V, 50/60 Hz
Weight: 90 kg
