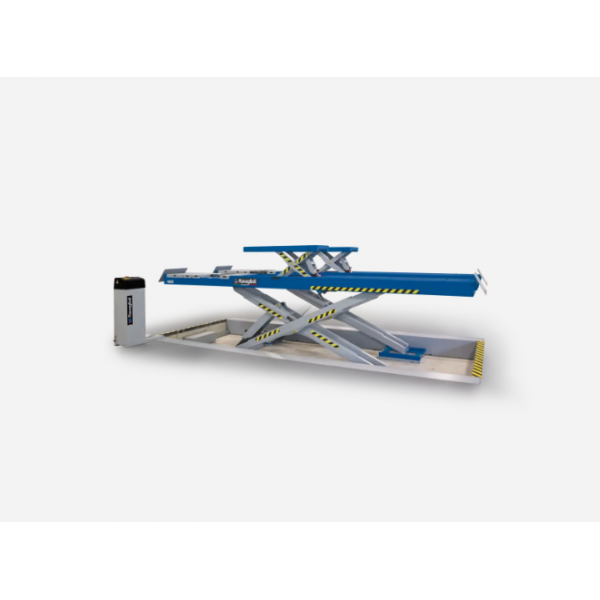

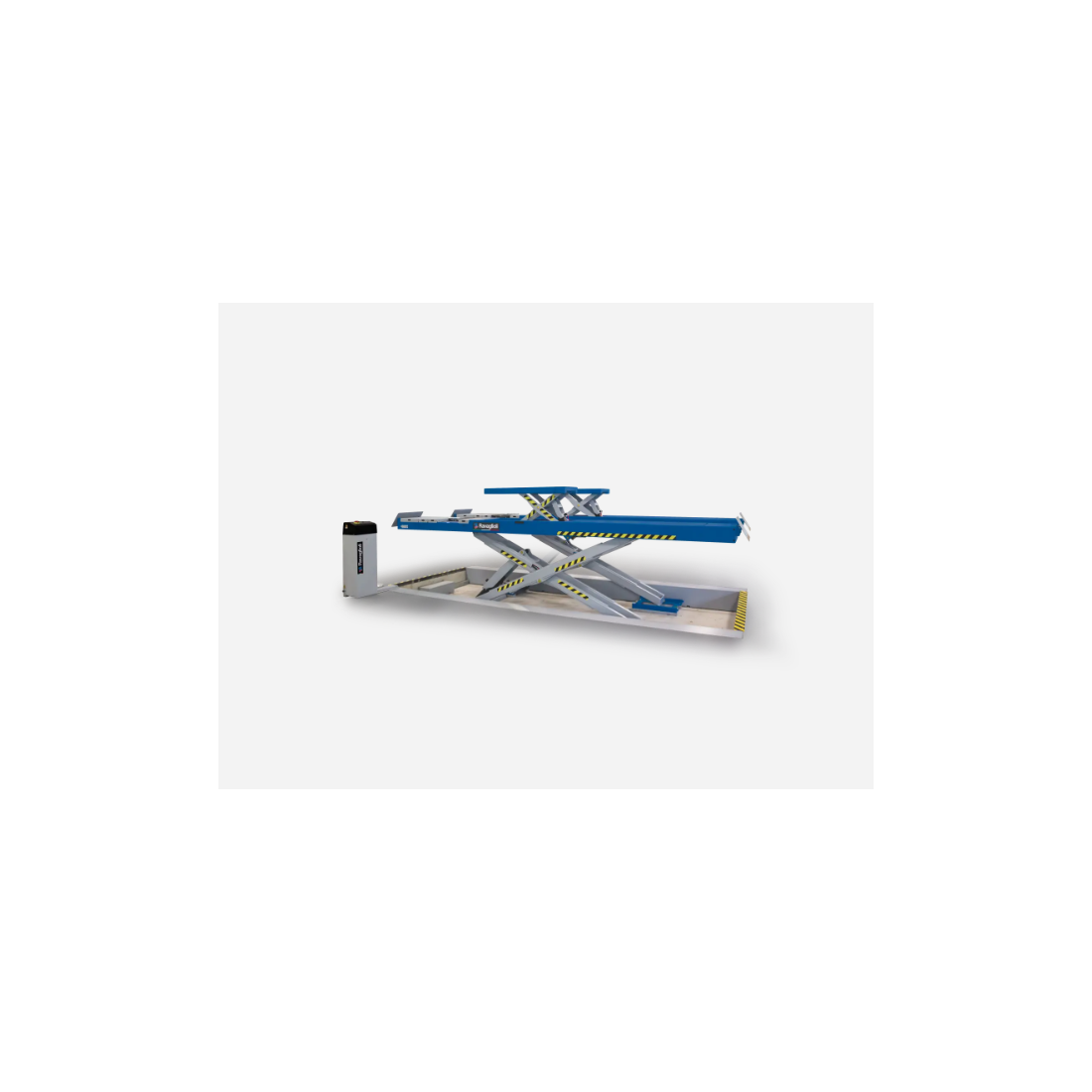

Electro-hydraulic scissor lift with a lifting capacity of 5T, equipped with a wheel-free jack and platforms for wheel alignment

Lifts with big platforms, structured and designed for maximum stability also when loaded with large vehicles.
with platforms for wheel alignment and with wheel-free jack,inground. TEq-Link
Wheel alignment: optional
Play detector not possible.
Technical Specifications:
Maximum lifting height: 2100 mm
Lifting time: 47 s
Lowering time: 40 s
Maximum lift height from the floor: 1805 mm
Air pressure: 280 bar
Motor power: 3,5 kW
Capacity of wheel free lift: 4T
Platform width: 650 mm
Platform length: 5500 mm
Space between platforms: 900 mm
Power supply: 230 V | 50 Hz
Total length: 5500 mm
Total width: 2200 mm
Weight: 1783 kg
Installation depth: 295 mm
