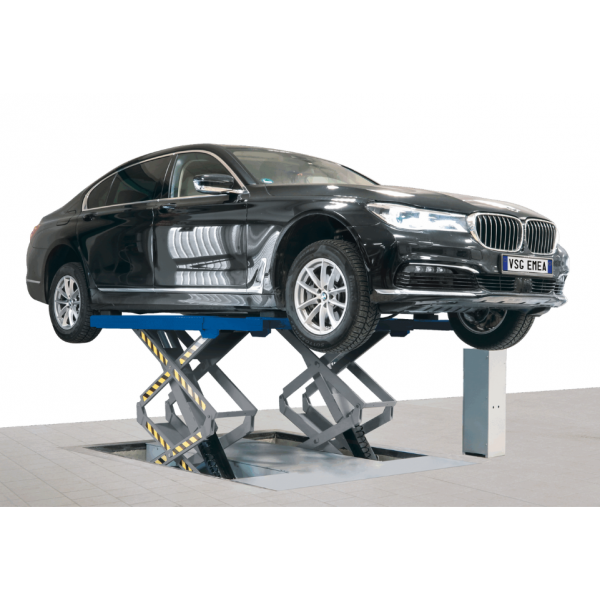

Double electro-hydraulic scissor lift, in-ground installation, 3.5t RAVAGLIOLI RAV510I, RAV.510IX.196255

Play detector,wheel free lift, wheel alignment- not possible
Extensible platforms to reach pick up points of the more demanding vehicles.
Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is in standing position
Technical Specifications:
Lifting Height: 1825 mm
Lifting and lowering time: 41 s
Drive-on-height: 265 mm
Length of platforms: 1900 mm
Platform Width: 510 mm
Distance Between Platforms: 800 mm-900 mm
Motor Power: 2.6 kW
Power supply: 230/400 V | 50 Hz
Length: 1940 mm
Width: 1920 mm
