G3.150WS 22” Full HD LCD monitor, RAV.G3150.201430, RAVAGLIOLI

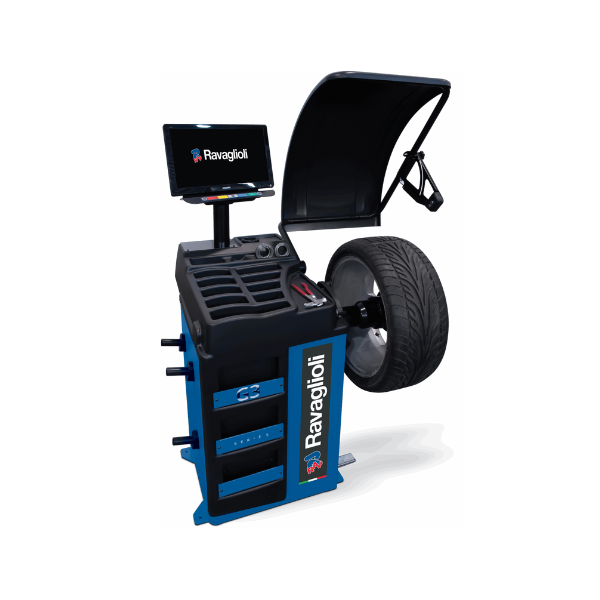

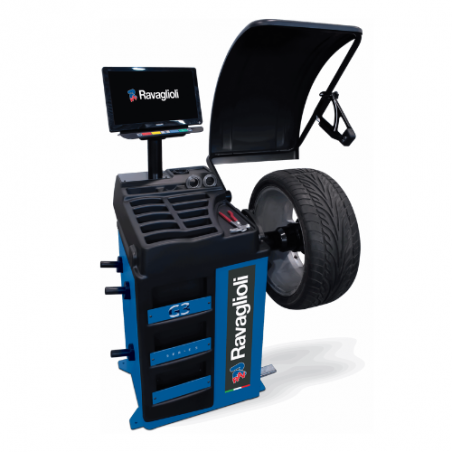

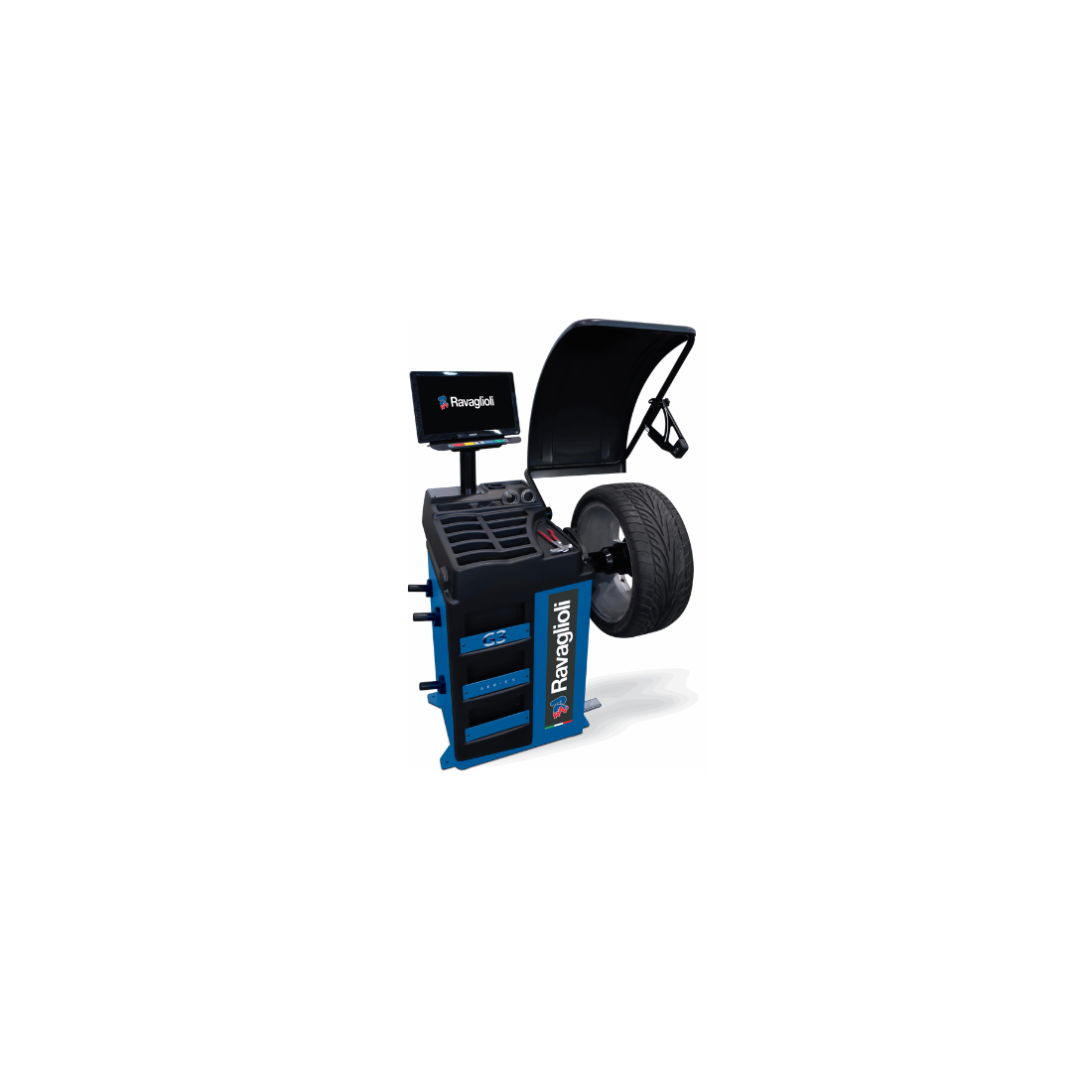

RAV.G3.150WS is an electronic wheel balancer with a microprocessor, designed for passenger car and commercial vehicle wheels. The unit features a robust construction, fast work cycle, and high balancing accuracy. Automatic wheel positioning in both external and internal unbalance positions, semi-automatic distance and diameter measurement, a convenient 22″ screen, and a clear control interface allow the operator to work quickly and precisely.
Among its key features are a laser marking system for accurate placement of adhesive weights, integrated LED lighting for work in low-light conditions, the “Eco-Weight” mode to reduce weight consumption, and compatibility with the TEq-Link system for connectivity and data transmission.
Technical specifications:
Measuring mode – semi-automatic data entry.
Measuring speed – less than 100 rpm.
Measuring time – 6 s.
Accuracy – ±1 g.

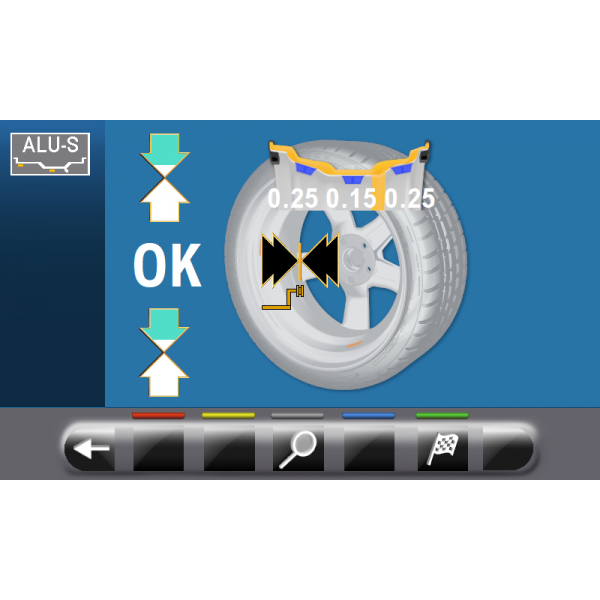

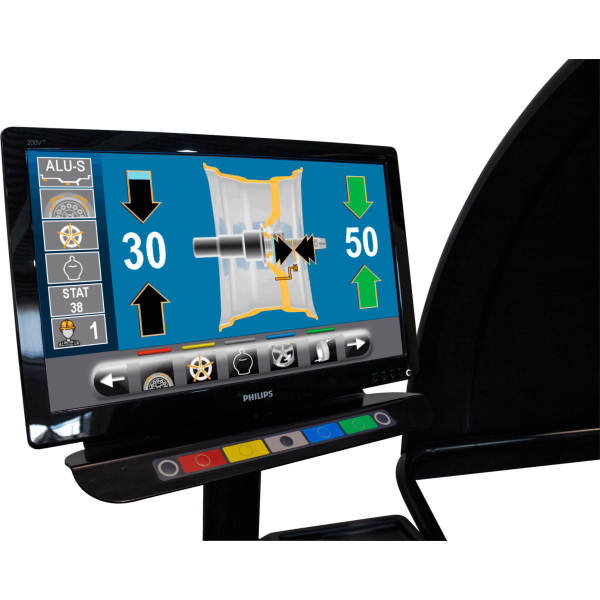

Display – 22″ LCD.
Rim width – 1.5″–22″.
Rim diameter – 10″–26″.
Maximum wheel diameter – 1090 mm.
Maximum wheel weight – 70 kg.
Power supply – 220–240 V, 50–60 Hz, single phase.
Machine weight – 145 kg.
Dimensions – width 1256 mm, depth 898 mm, height 1695 mm.
