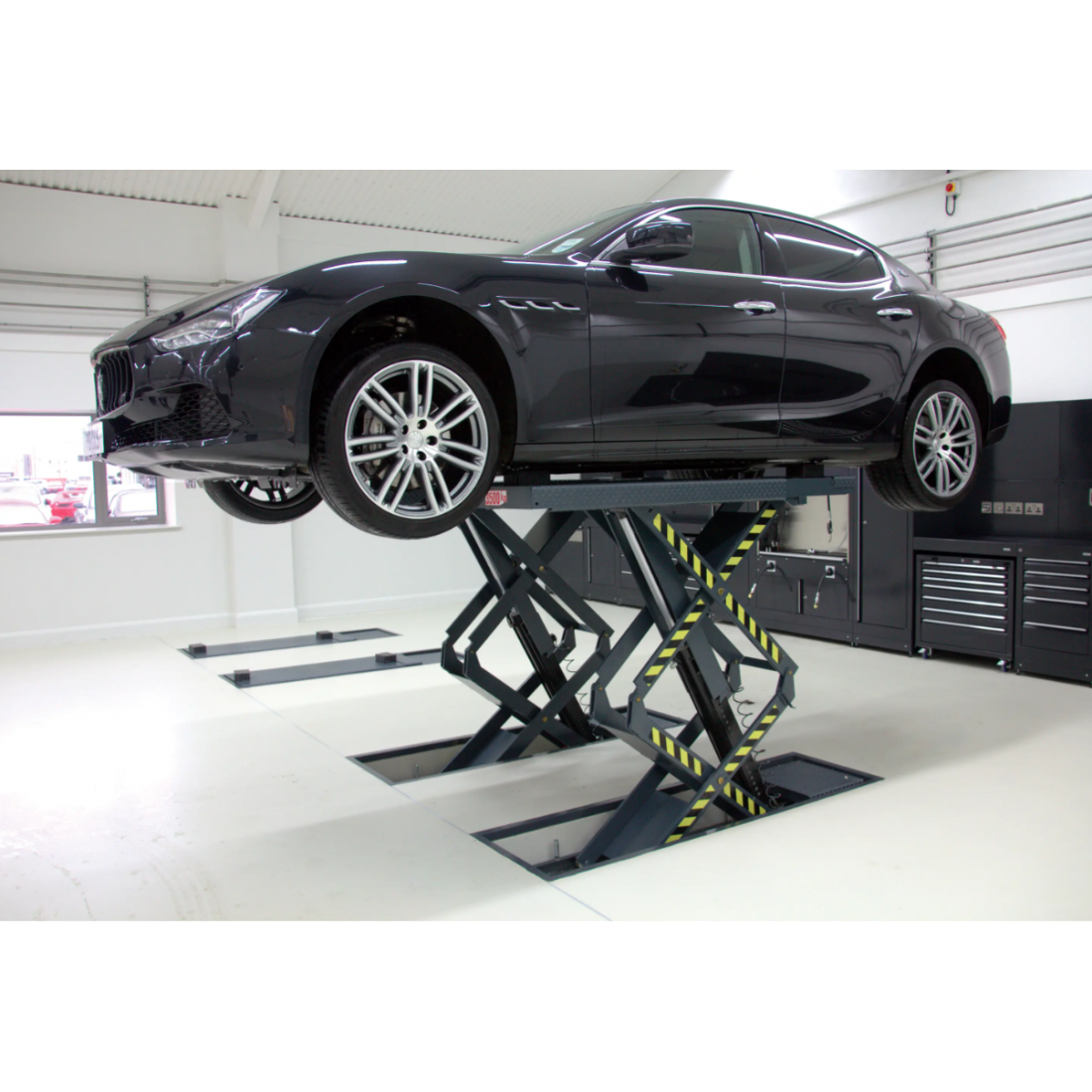

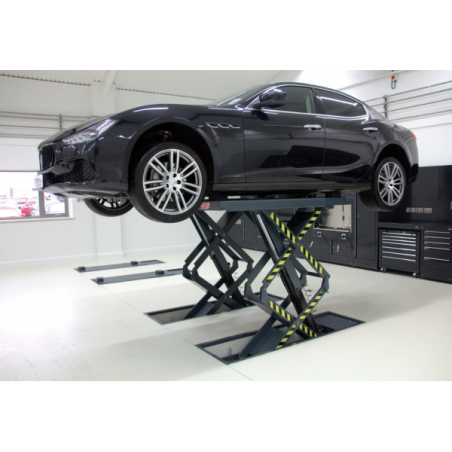

Double electro-hydraulic scissor lift 3,5T 400-230/3/60Hz, RAV509IF, RAV.509IF.196354, RAVAGLIOLI
Double electro-hydraulic scissor lift 3,5T 400-230/3/60Hz, RAV509IF, RAV.509IF.196354, RAVAGLIOLI

Double electro-hydraulic scissor lift 3,5T 400-230/3/60Hz, RAV509IF, RAV.509IF.196354, RAVAGLIOLI

Reference: RAV.509IF.196354
€8,716.65 Tax incl.
€7,203.84 Tax excl.

Delivery time: 1 day to 1 month, depending on stock.

Have questions?

+37067440662 [email protected]
Get individual offer

Product Information

Fixed length of platforms for easy use. The best solution for a rational workshop.
Space-saving when lift is all raised
Completely free floor space when lift is fully lowered.
Technical Specifications:
Lifting Height: 1825 mm
Lifting and lowering time: 41 s
Drive-on-height: 255 mm
Length of platforms: 1580 mm
Platform Width: 510 mm
Distance Between Platforms: 850 mm
Motor Power: 2.6 kW
Weight: 815 kg
Power supply: 230/400 V | 60 Hz 3ph
Length: 1610 mm
Width: 1920 mm
Play detector,wheel free lift, wheel alignment- not possible
