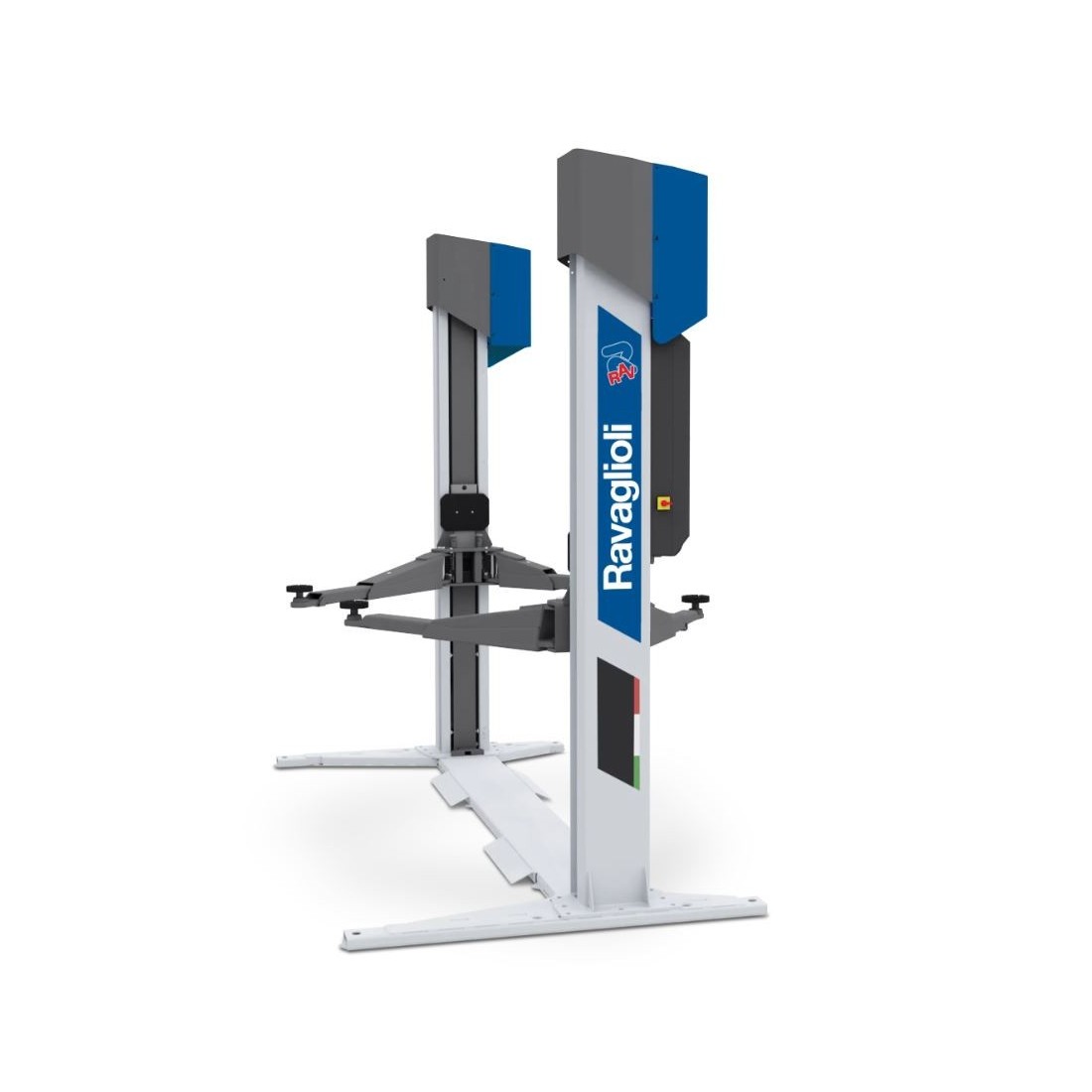

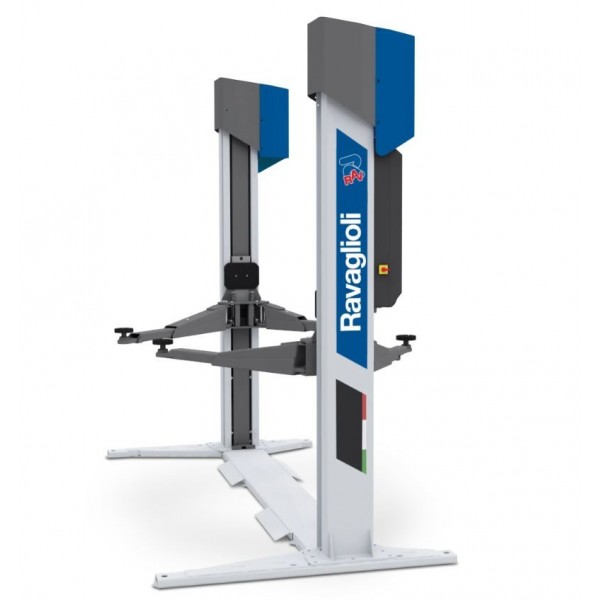

2-post electromechanical lift 3.2T, self-supporting base KPS32, RAV.KPS32.198686, RAVAGLIOLI

Advantages: Control: push buttons.Teq-Link.
Load-bearing base: installation also possible on floors having levelness problems or insufficient capacity parameters and cement thickness. (*Please refer to the manual for installation requirements.)
Lowered load-bearing platform: H 50 mm.
This 3.2-ton lifting capacity lift has asymmetric lifting arms: short arms with 3 segments, long arms with 2 segments.
Technical specifications:
Maximum lifting height: 1883 mm
Lifting time: 42 s
Adjustable lifting pad height: 110 - 176 mm
Drive-through width: 2468 mm
Required minimum ceiling height: 4050 mm
Clear span between: 2685 mm
Arm configuration: asymmetrical
Front lifting arm length: 541 - 950 mm
Rear lifting arm length: 815 - 1215 mm
Motor power: 2x2.6 kW
Lift width: 3336 mm
Lift height: 2833 mm
Power supply: 400/3/50Hz
Weight: 850kg.
