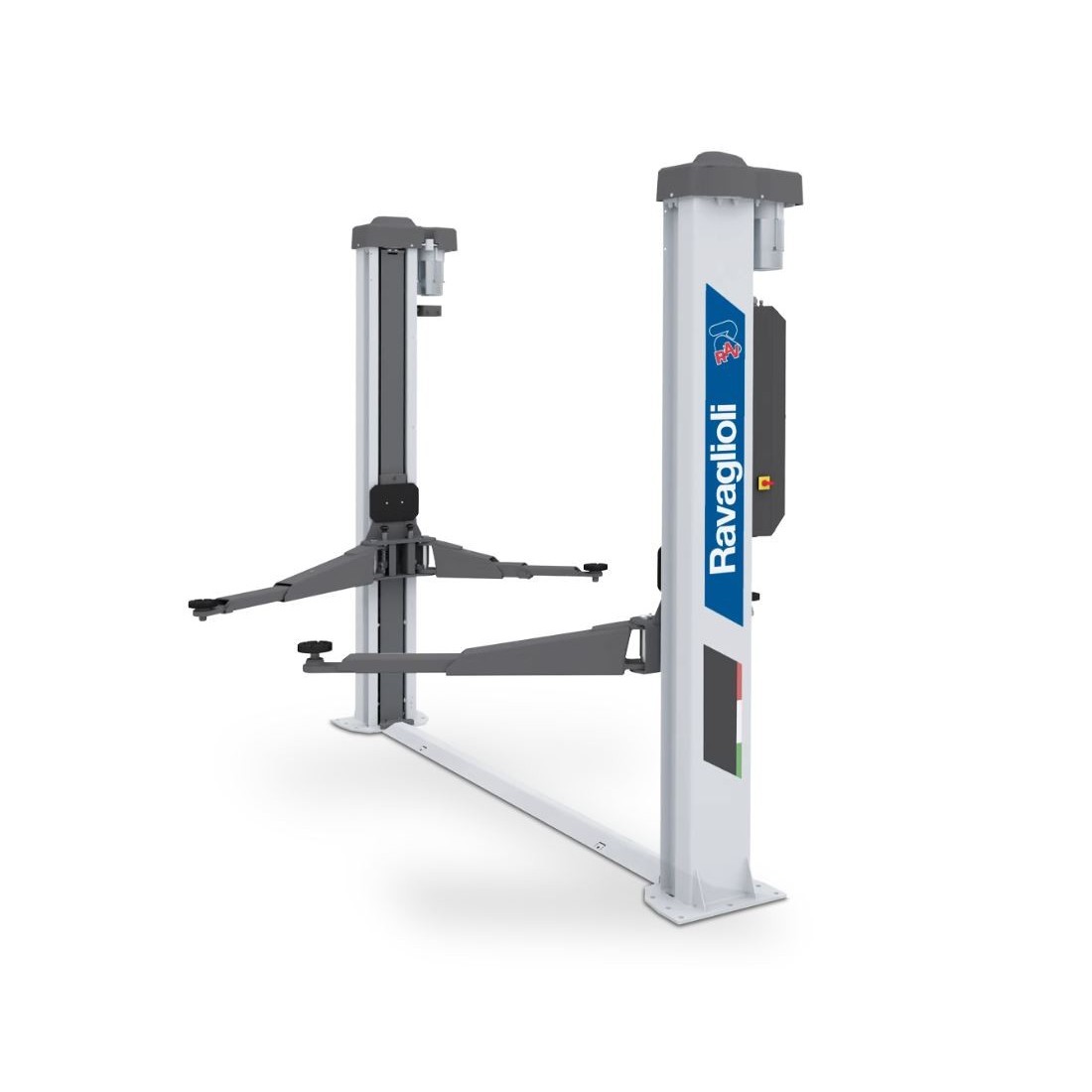

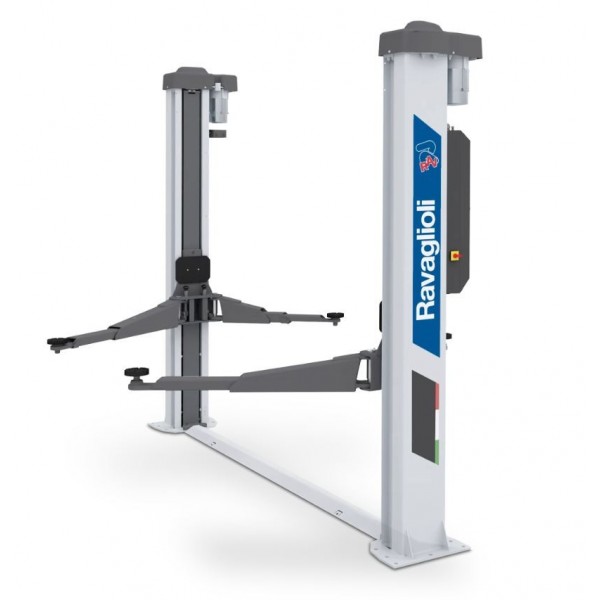

2-post electromechanical lift 3.2T KPC32, RAV.KPC32.198709, RAVAGLIOLI

Advantages: Control: switch.
Base with smaller size that reduces the work area space.Electronic synchronization.Innovative DNA: long-standing high-quality components and tested for 20000 cycles
This 3.2-ton lifting capacity lift has asymmetric lifting arms: short arms with 3 segments, long arms with 2 segments.
Technical specifications:
Maximum lifting height: 1883 mm
Lifting time: 42 s
Adjustable lifting pad height: 90 - 120 mm
Drive-through width: 2468 mm
Required minimum ceiling height: 4050 mm
Arm configuration: asymmetrical
Front lifting arm length: 511 - 914 mm
Rear lifting arm length: 805 - 1203 mm
Motor power: 2x2.6 kW
Lift width: 3318 mm
Lift height: 2756 mm
Power supply: 400/3/50Hz
Weight: 650kg.
