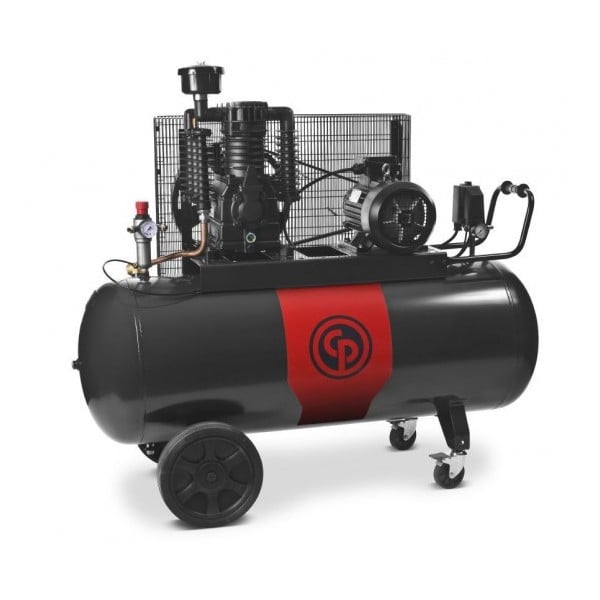

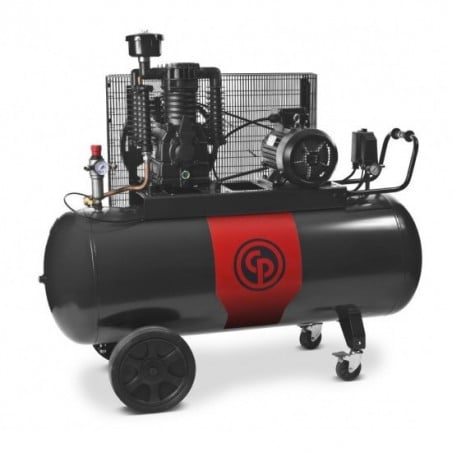

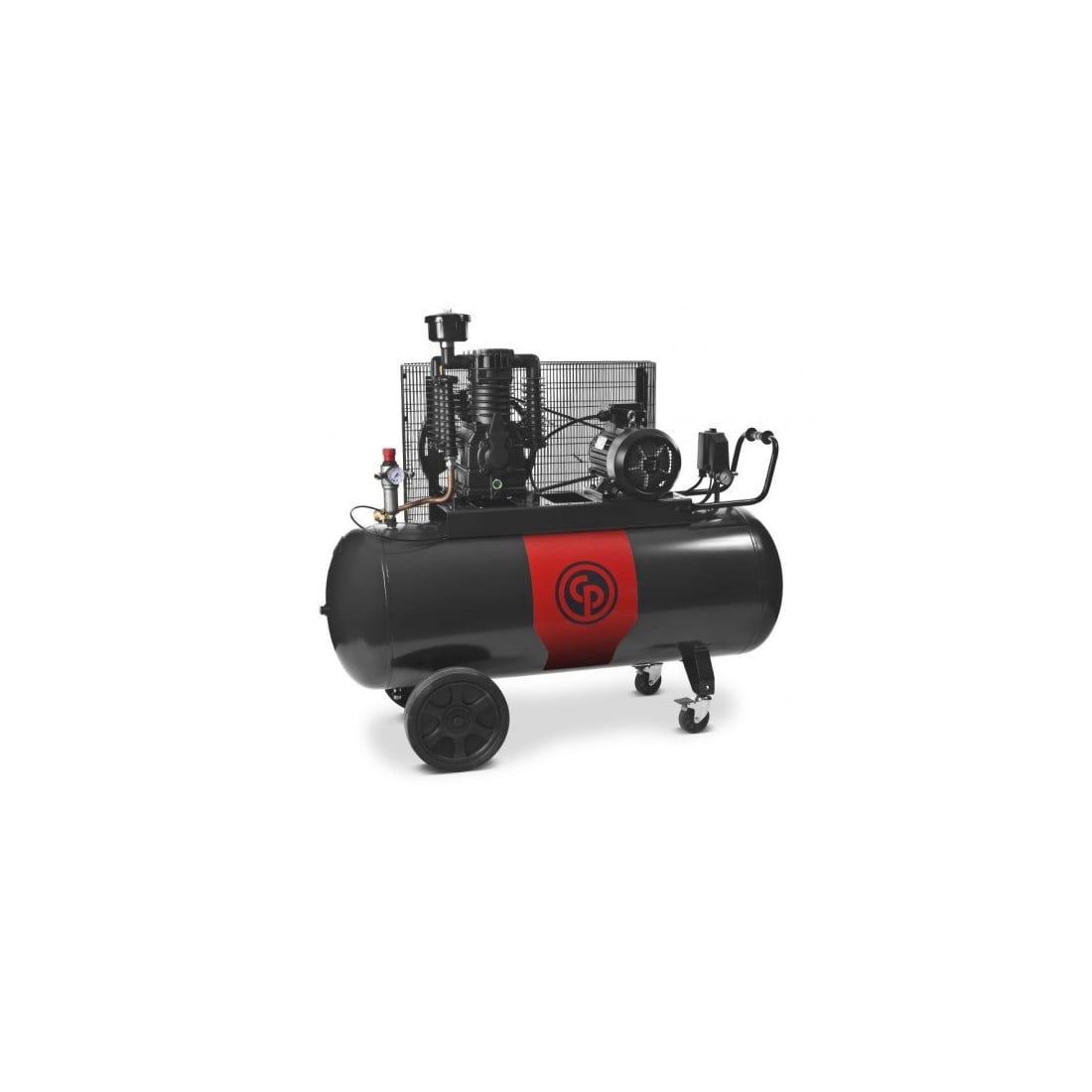

Piston compressor CPRD 8270 NS39 MT CHICAGO PNEUMATIC (4116022863, CHICAGO PNEUMATIC)

This is a high-performance piston compressor designed for professional use in medium to large workshops, automotive service centers, and maintenance facilities. The CPRD series is engineered to deliver higher air output and stable operation at elevated pressures, making it suitable for intensive daily applications.

This model is equipped with an NS39 compressor pump and a belt-driven system, ensuring efficient power transmission and long service life. The two-stage compression technology allows increased air delivery while maintaining a constant working pressure of 11 bar, even during continuous operation.

The robust construction, metal belt guard, and efficient cooling system with large cooling surfaces help reduce operating temperatures and extend component lifespan. The MT-type mobile frame allows the compressor to be easily moved around the workplace while maintaining stability during operation.

Technical information:
Maximum working pressure: 11 bar
Air output: 827 l/min (29.2 cfm)
Motor power: 7.5 HP / 5.5 kW
Noise level: 75 dB(A)
Receiver capacity: 270 l
Compressor type: piston, belt-driven
