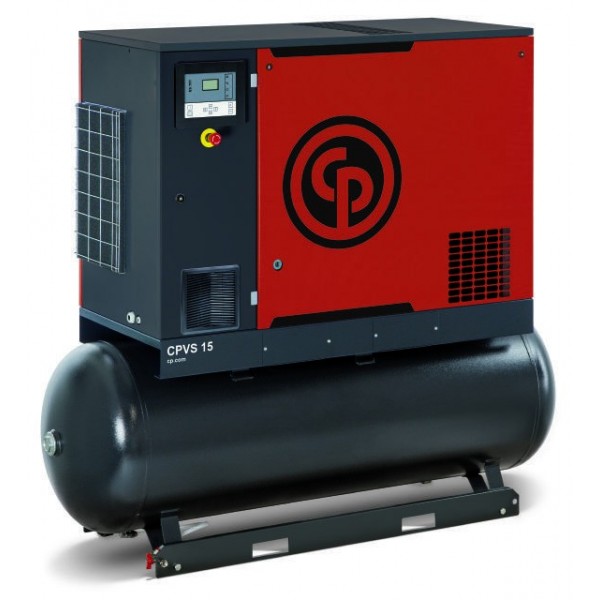

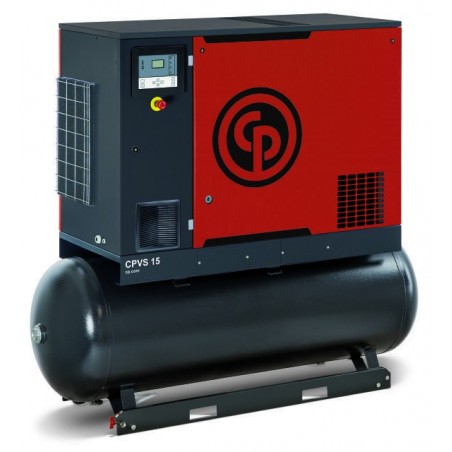

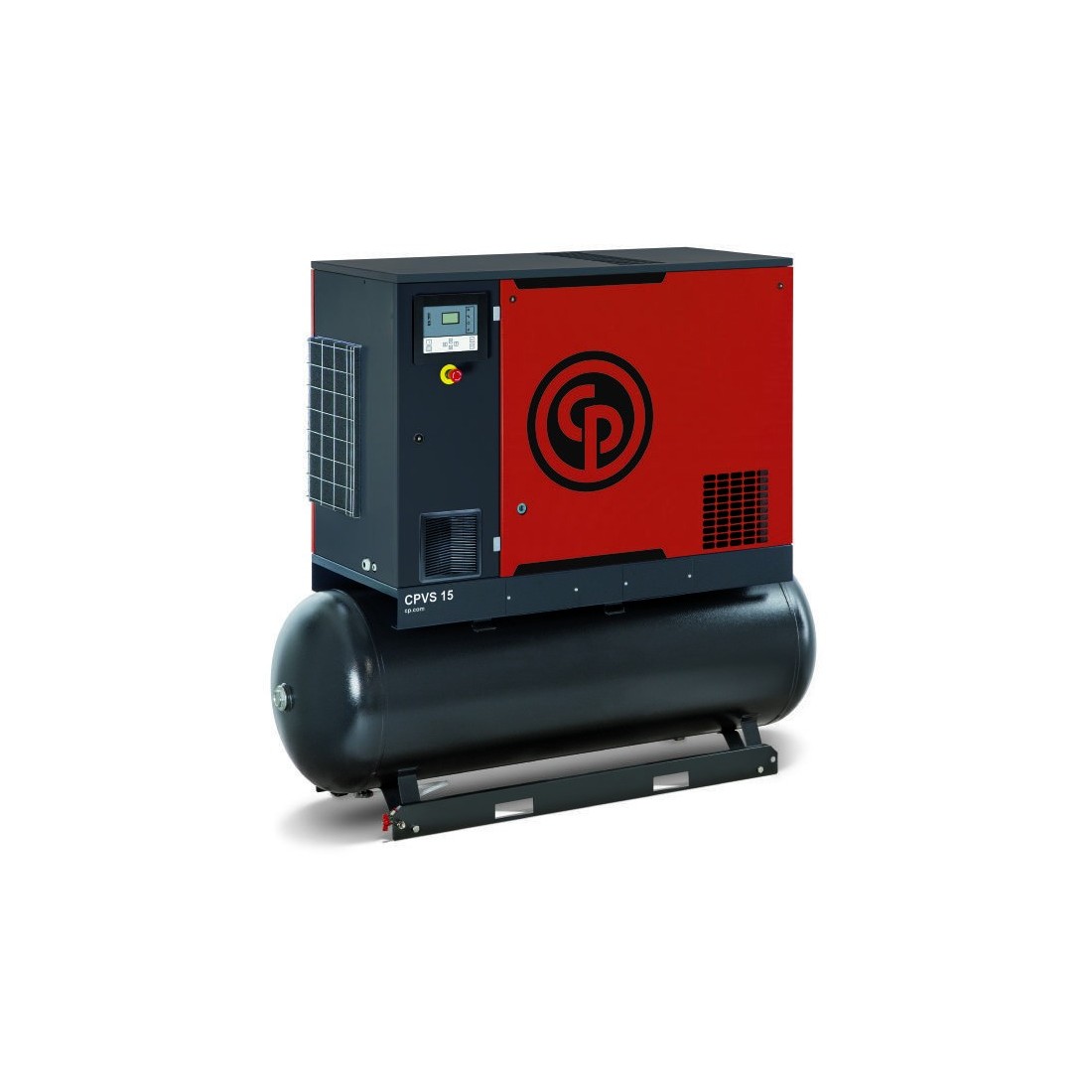

Screw inverter air compressor with collector CPVSd 10 270, 4152018549, CHICAGO PNEUMATIC

This is a professional variable speed rotary screw air compressor with an integrated 270-liter air receiver, designed for efficient and economical operation in industrial environments, automotive service centers, and maintenance facilities. The CPVSd series is engineered to automatically adapt to changing air demand and provide a stable compressed air supply with reduced energy consumption.
The CPVSd 10 270 uses variable speed direct drive technology, allowing the compressor to deliver only the amount of air actually required by the system. This helps reduce electricity consumption by up to 30%, maintain constant pressure, and avoid unloaded operation. The direct drive design also reduces mechanical wear and maintenance requirements.
The integrated 270-liter air receiver provides sufficient air storage, stabilizes system pressure, and allows the compressor to operate more efficiently under fluctuating load conditions. The compact design enables easy integration into existing compressed air systems.
Technical information:
Power: 10 HP (approx. 7.5 kW)
Air output: approx. 9–43 acfm (approx. 15–73 m³/h), depending on pressure
Pressure range: 5–12.5 bar; air receiver: 270 l
Controller: ES4000 Advanced, graphic
Noise level: approx. 64 dB(A)
