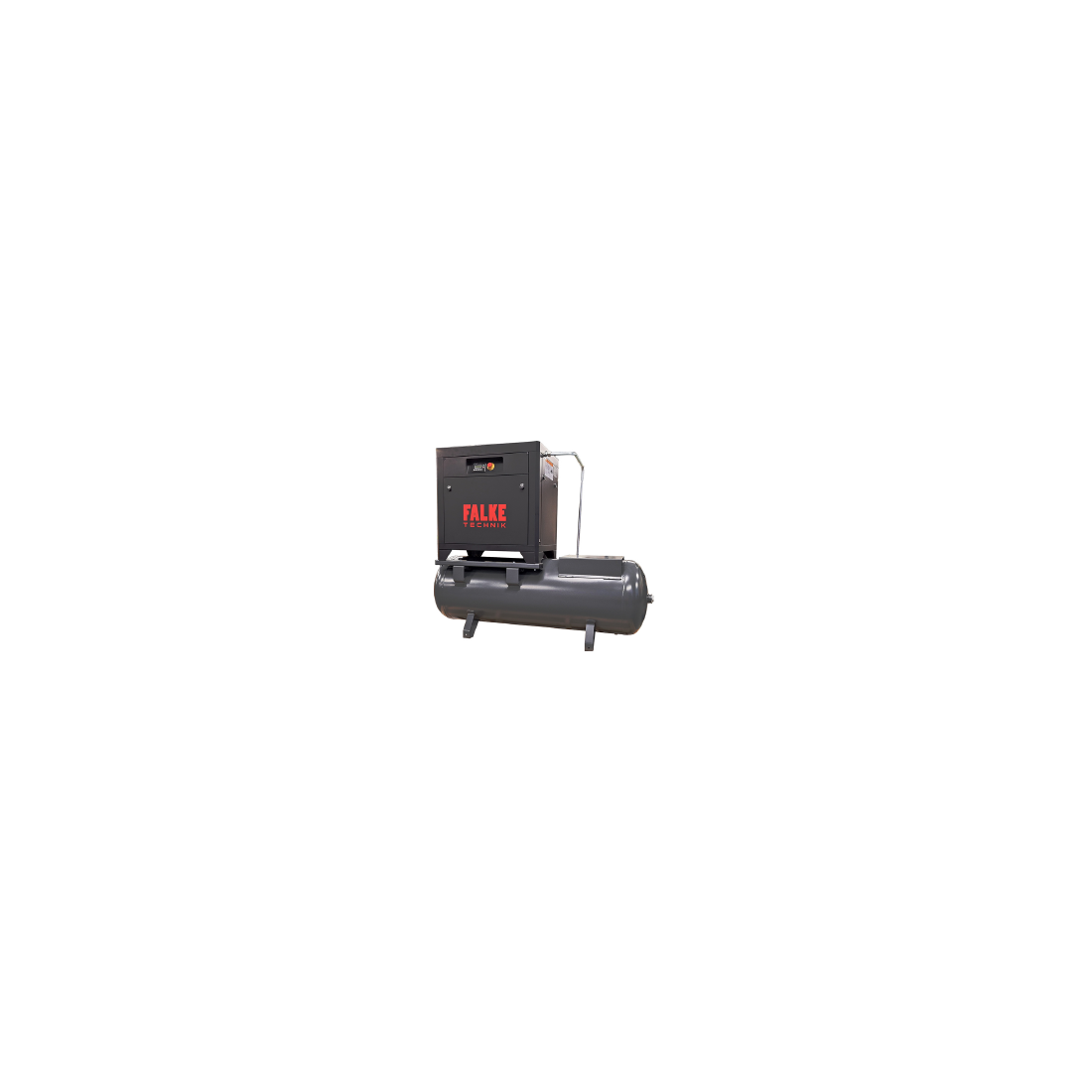

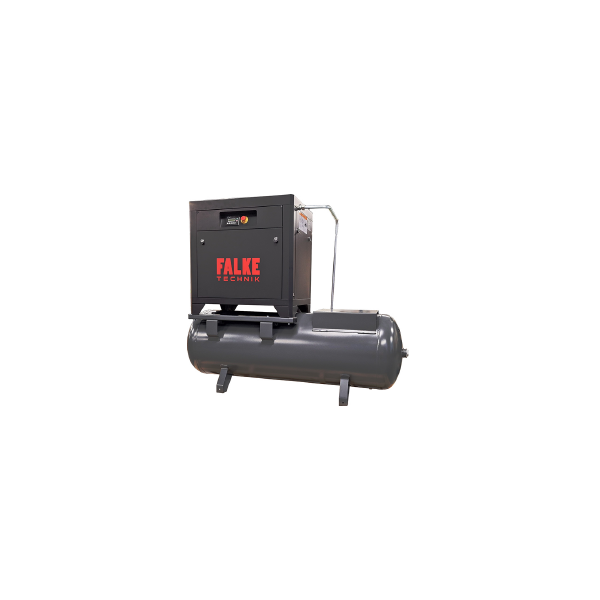

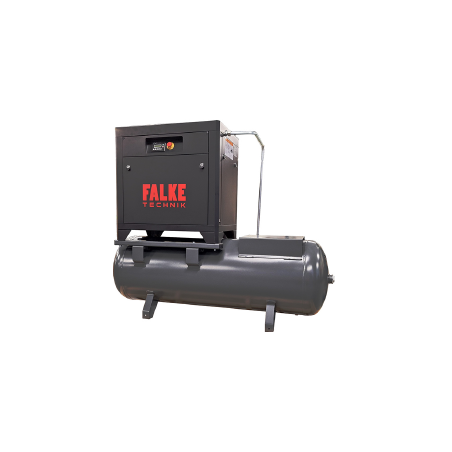

Screw Air Compressor FKTG 7.5 I, Walter Kompressortechnik

FKTG 7.5 I is a screw compressor with a 500 L receiver, designed for continuous operation at pressures up to 13 bar. The motor (5.5 kW / 7.5 HP) meets the IE3 efficiency class, delivering 90.1% efficiency, IP55 protection, and a speed of 2920 rpm.
The unit provides an air delivery of 0.55 m³/min with a low noise level of only 66 dB(A), making it suitable for both industrial applications and workshops. The oil cooling system (12 L capacity) ensures reliable performance, supported by an airflow of 2500 m³/h. Power is transmitted through a robust belt drive system.
It is equipped with the Falke Controller 5050, enabling precise control of operating parameters. The compressed air connection is G 3/4".
Dimensions of the compressor: 1970 × 710 × 1600 mm, weight – 390 kg. It is designed to operate in ambient temperatures from +2 °C to +45 °C. Power supply: 400 V / 3 phase / 50 Hz, with a 40 A protection fuse and a 4 × 6 mm² power cable.
Warranty – 2 years. To maintain coverage, regular paid service inspections must be carried out in accordance with the warranty card requirements.
