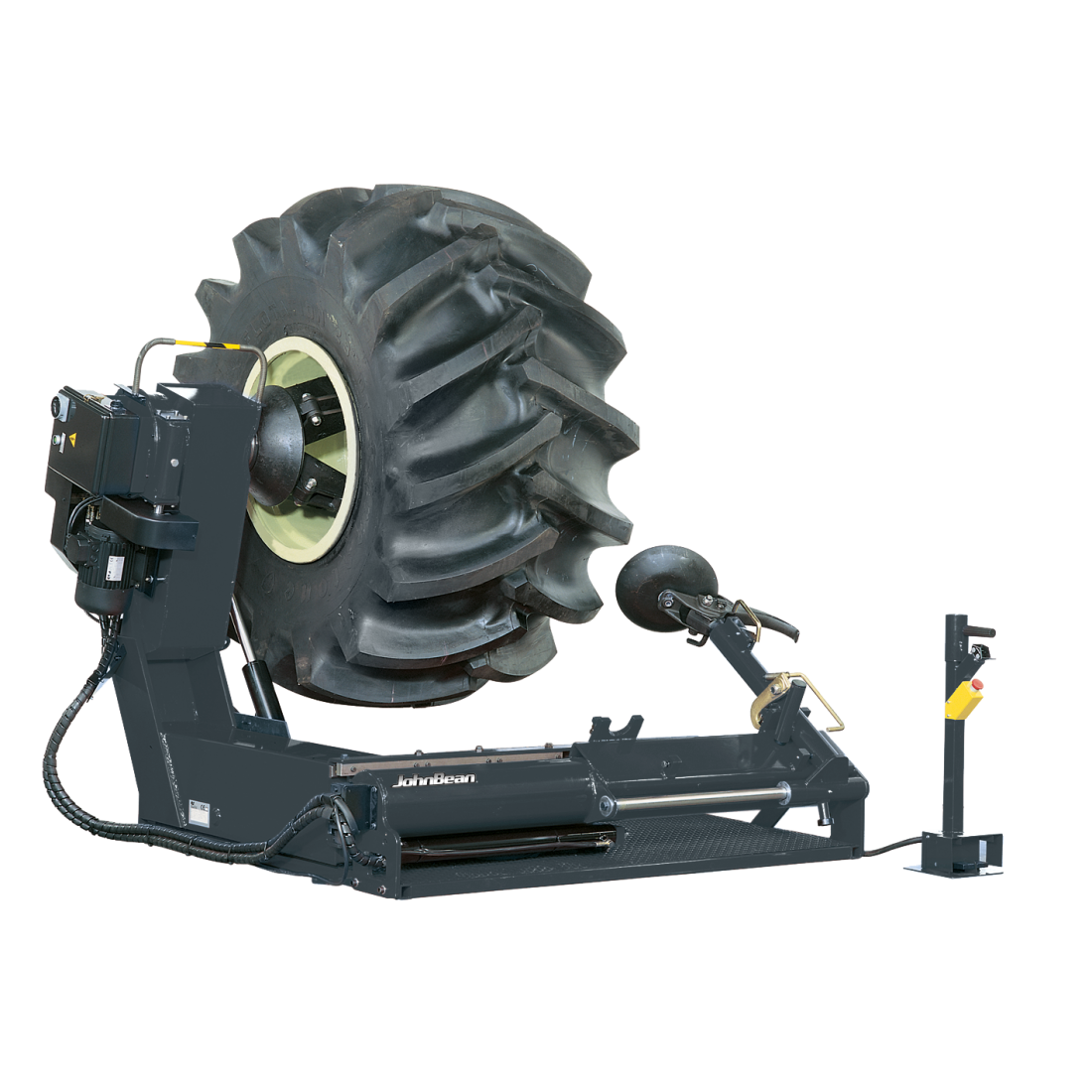

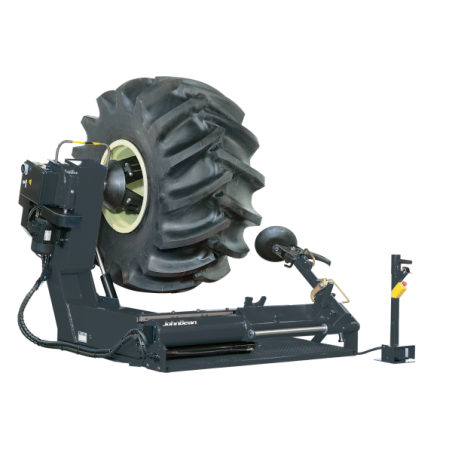

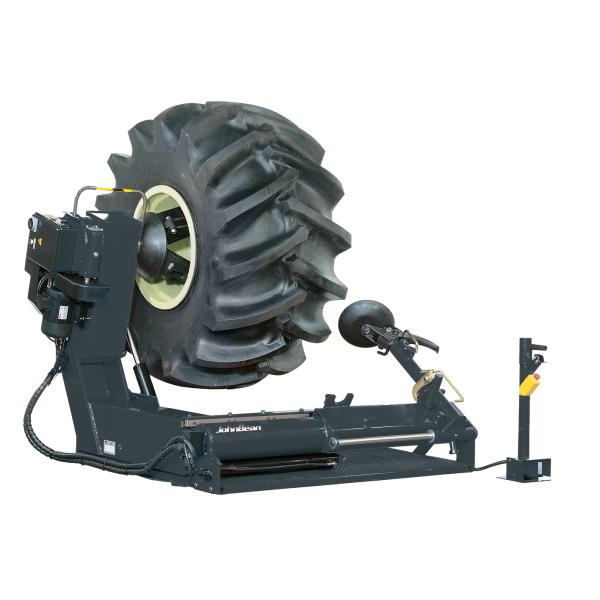

Truck Tire Fitting Machine T8056, JOHN BEAN (6024008)

Single-Operator Control:
A wired remote control console allows a single technician to safely perform all mounting operations.
Hydraulic Four-Jaw Self-Centering Chuck:
Ensures firm and precise wheel clamping.
Bidirectional, Two-Speed Rotation:
4 or 8 RPM, allowing speed adjustment based on the task.
Integrated Bead Breaker with Tilt Mechanism:
Facilitates bead separation and ensures optimal disc positioning.
Safety Valve:
Prevents the chuck from opening in the event of an unexpected drop in hydraulic pressure.
Technical Specifications:
Maximum Wheel Diameter: 235 cm
Maximum Tire Width: 110 cm
Maximum Wheel Weight: 1,500 kg
Clamping Range: 32″ (81 cm) standard; up to 56″ (142 cm) with additional adapters
Power Supply: 400 V, 3-phase, 50 Hz
Dimensions (H × W × D): 148 × 210 × 210 cm
Weight: approx. 945 kg

Included Equipment:
Standard tire levers (20″ / 50 cm)
Long tire mounting lever
Wave Plus tire mounting lever
Jaw protection kit
Clamping cone
