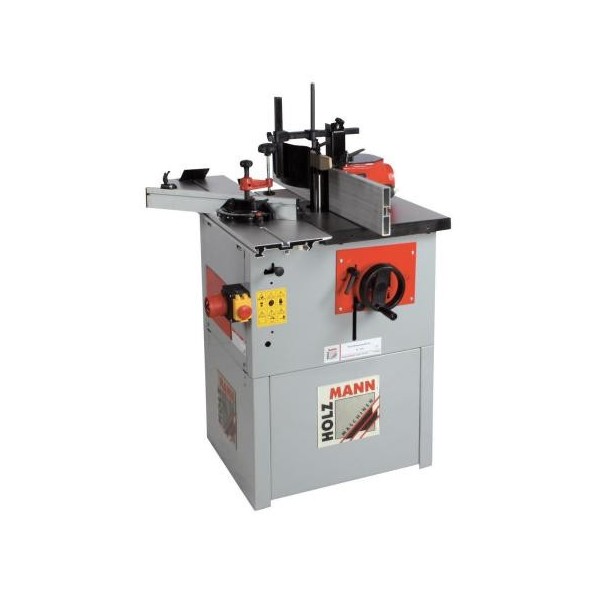

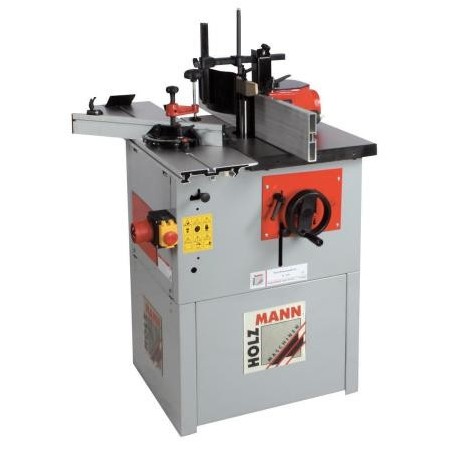

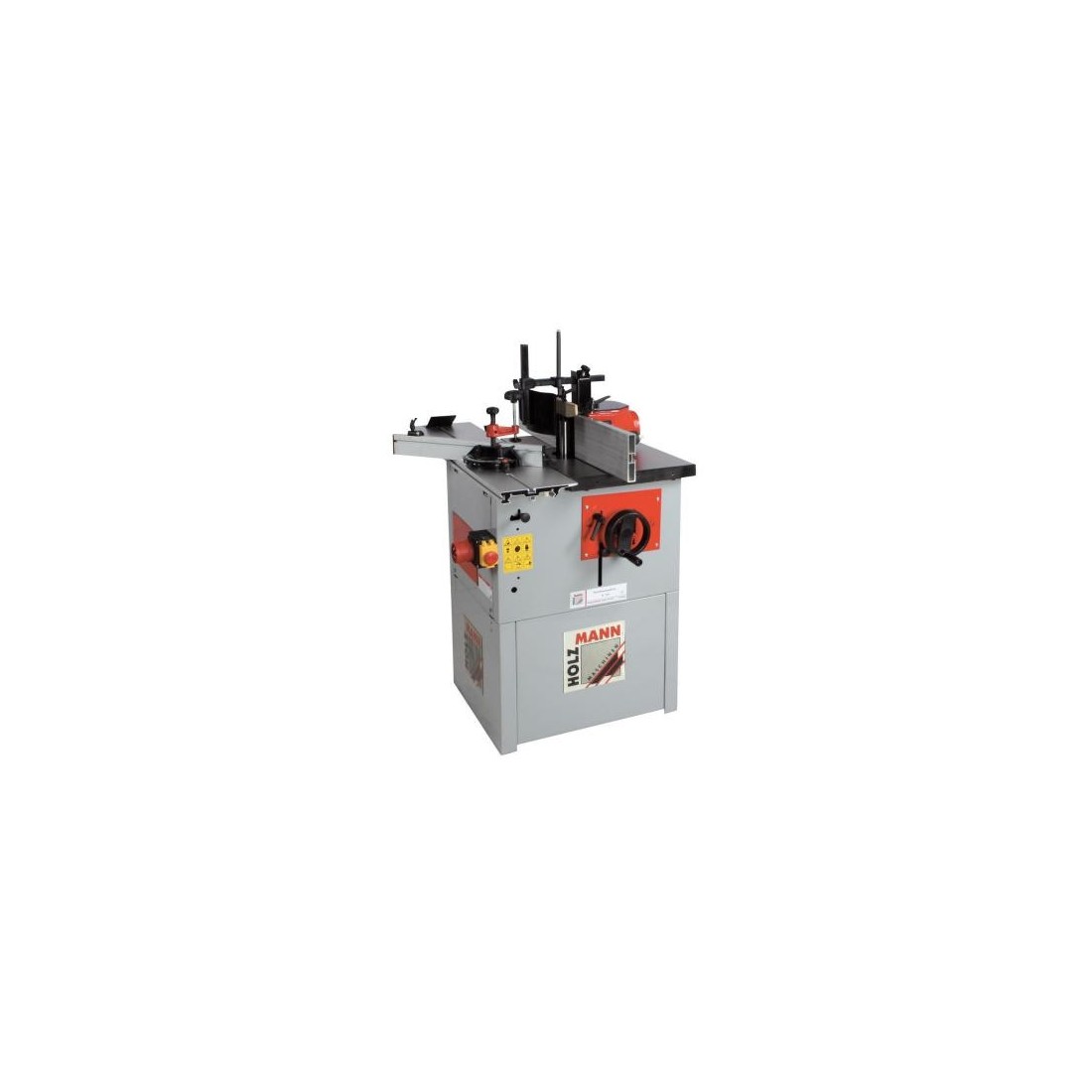

Spindle shaper FS160L_230V, Holzmann

This is a compact woodworking spindle shaper designed for precise profiling, edge shaping and general milling operations in joinery workshops. The machine is ideal for users who need high functionality while saving workspace.
The shaper features a solid cast iron table for maximum stability and accuracy, combined with a long aluminium sliding table that ensures smooth and controlled workpiece feeding. A dynamically balanced spindle guarantees clean and consistent cutting results.
The machine is supplied with an exchangeable spindle and a Ø12 mm router collet, allowing the use of router bits in addition to standard shaper cutters. The adjustable mitre fence tilts left and right up to 60°, making angled machining easy and precise.
All essential safety features are included: protective hood, emergency stop button and safety micro-switch.
Technical information:
Motor power S1: 1500 W; S6: 2100 W
Power supply: 230 V
Spindle speeds: 1400 / 4000 / 6000 / 9000 rpm
Table size: 600 × 400 mm; table height: 850 mm
Spindle diameter: Ø30 mm; stroke: 110 mm
Weight: 108 kg
