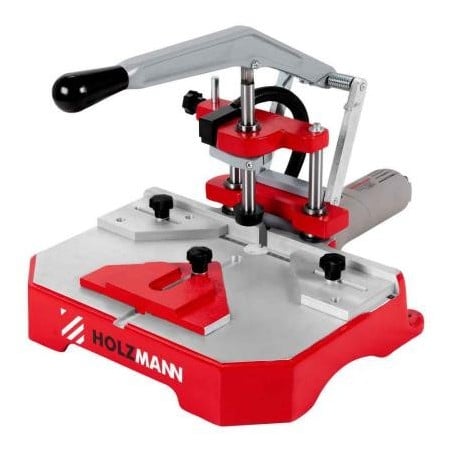

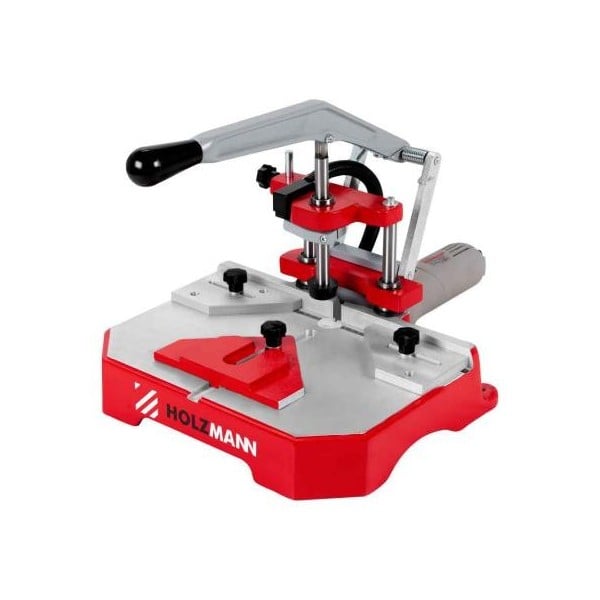

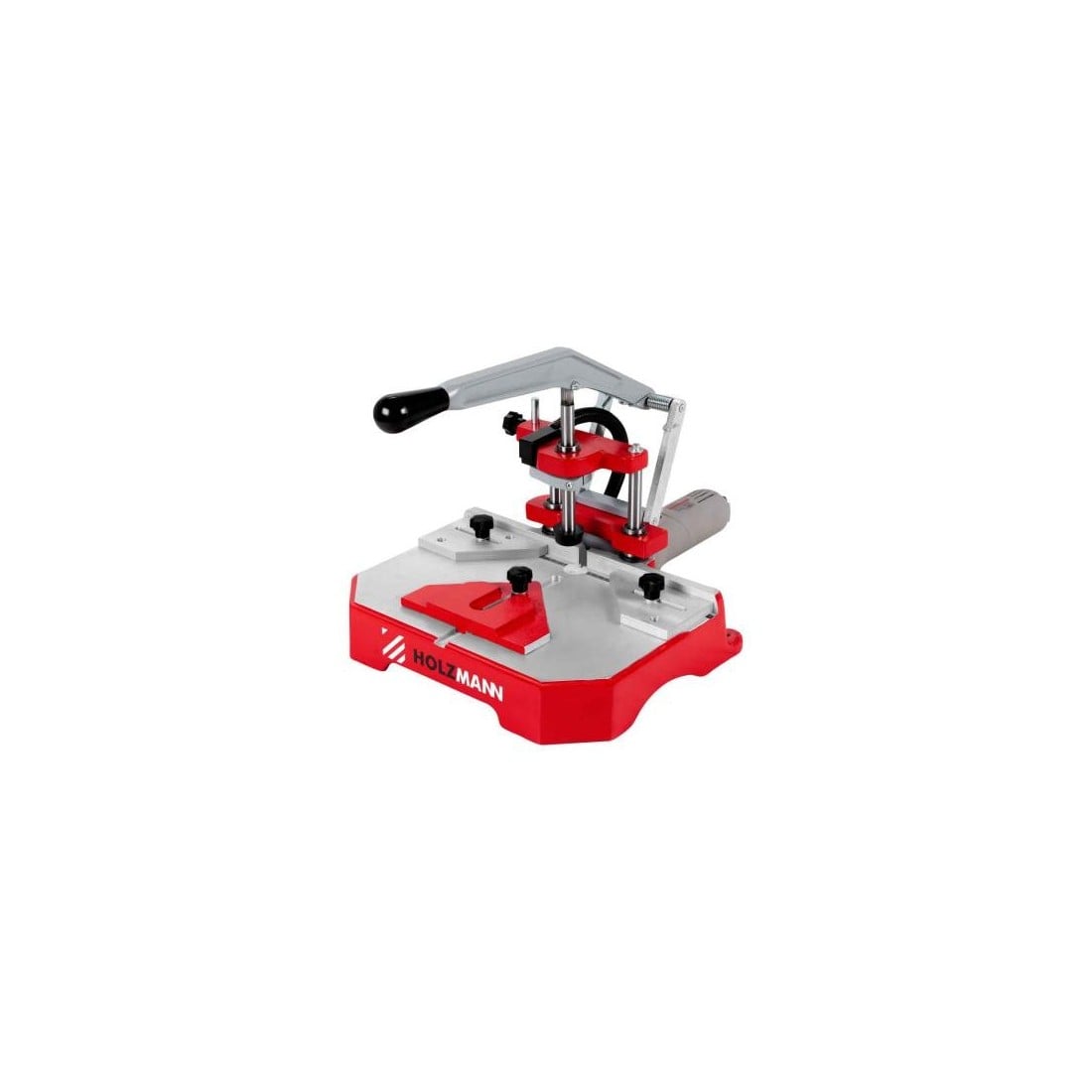

Single blade wooden coupling machine, KNF1_230V, Holzmann

KNF1_230V is a compact single-blade wooden joint milling machine designed for fast and precise production of keyway (dovetail/keyway) joints. The machine allows one joint to be milled per working cycle, making it ideal for the manufacture of frames, picture frames, window frames and other wooden constructions. The operating principle is simple: the joint is milled, the matching joint insert is placed, and the machined parts are joined together without the use of glue.

The machine is equipped with one milling spindle and manual workpiece clamping, ensuring stable and safe operation. Adjustable stops allow precise positioning of the workpieces, while the wide spindle speed range provides flexibility when working with different types of wood.

Main information:
– Type: single-blade wooden joint milling machine
– Application: production of joints for frames and other wooden parts
– Max. profile dimension: 185 mm
– Max. workpiece thickness: 95 mm
– Max. milling depth: 55 mm
– Milling spindle: 1 pc., speed 12,000–27,000 rpm
– Motor power / voltage: 600 W / 230 V, 50 Hz
– Table size: 380 × 220 mm
– Dimensions: 400 × 550 × 370 mm
