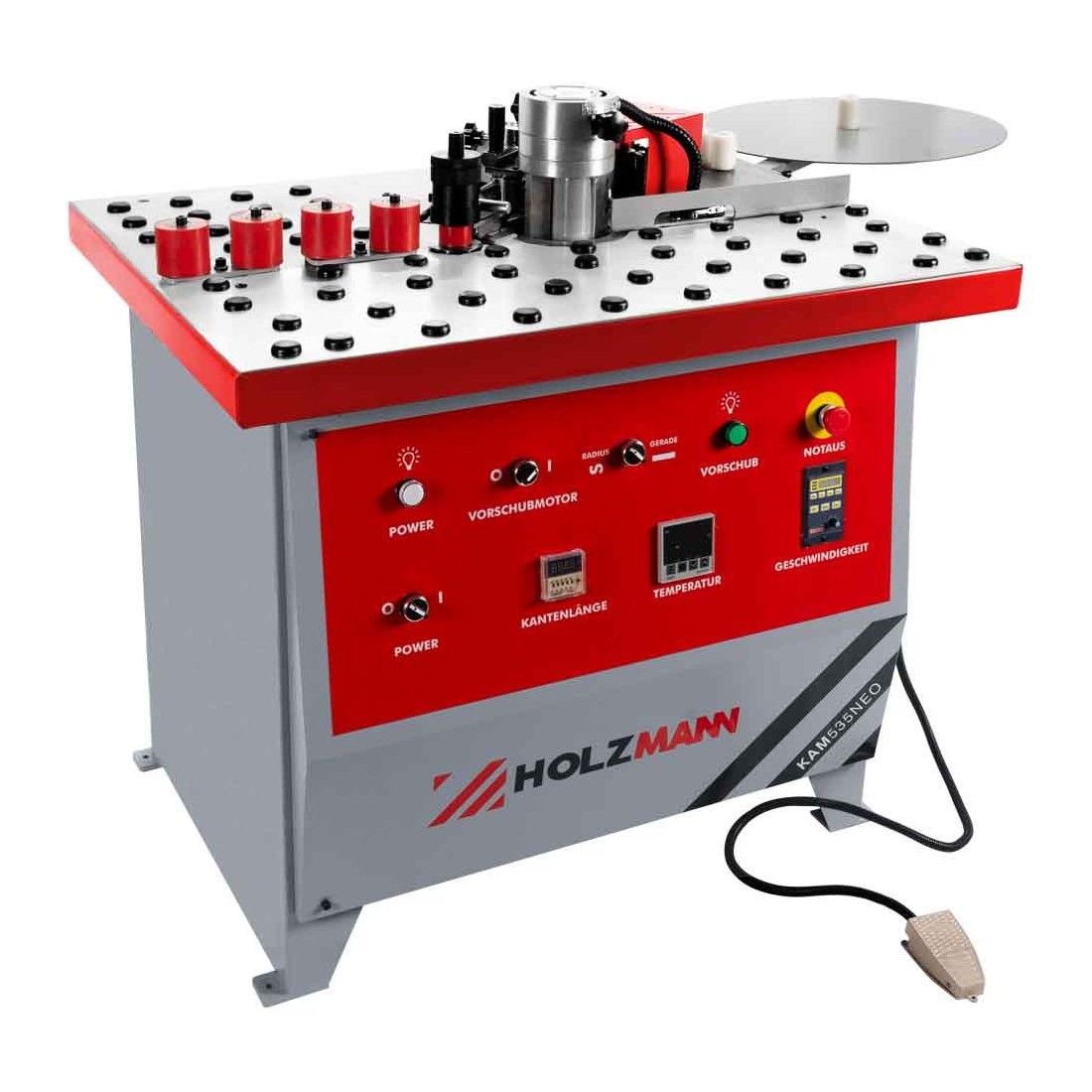

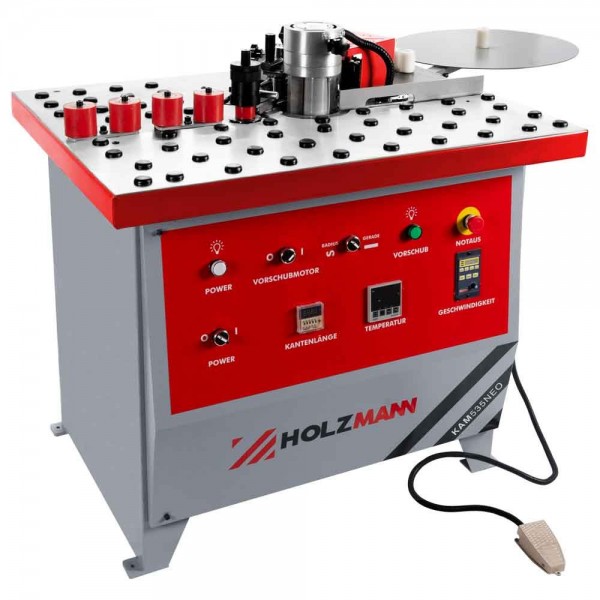

Edge banding machine, KAM535NEO_400V, Holzmann

KAM535NEO_400V is a semi-automatic edge banding machine designed for bonding both straight and curved edges in furniture manufacturing and professional workshops. The machine applies adhesive directly to the workpiece and the edge band from both sides, ensuring uniform and reliable bonding to laminate or edge banding materials. It features automatic edge length cut-off, electronically adjustable glue heating temperature, and variable feed speed, allowing easy adaptation to different materials and working conditions. The design is optimized for processing very tight curves, making the machine highly versatile.

Key information:
– Working type: straight and curved edges
– Edge band width / thickness: 13–54 mm / 0.3–3 mm
– Minimum curve radius: 20 mm
– Workpiece thickness: 10–50 mm
– Feed speed: 0–15 m/min (adjustable)
– Gluing temperature: electronically adjustable (~170 °C)
– Motor power / voltage: 250 W feed + 1750 W heater / 400 V, 3-phase
– Required air pressure: 4–5 bar
– Work table / height: 1000 × 700 mm / 850 mm
