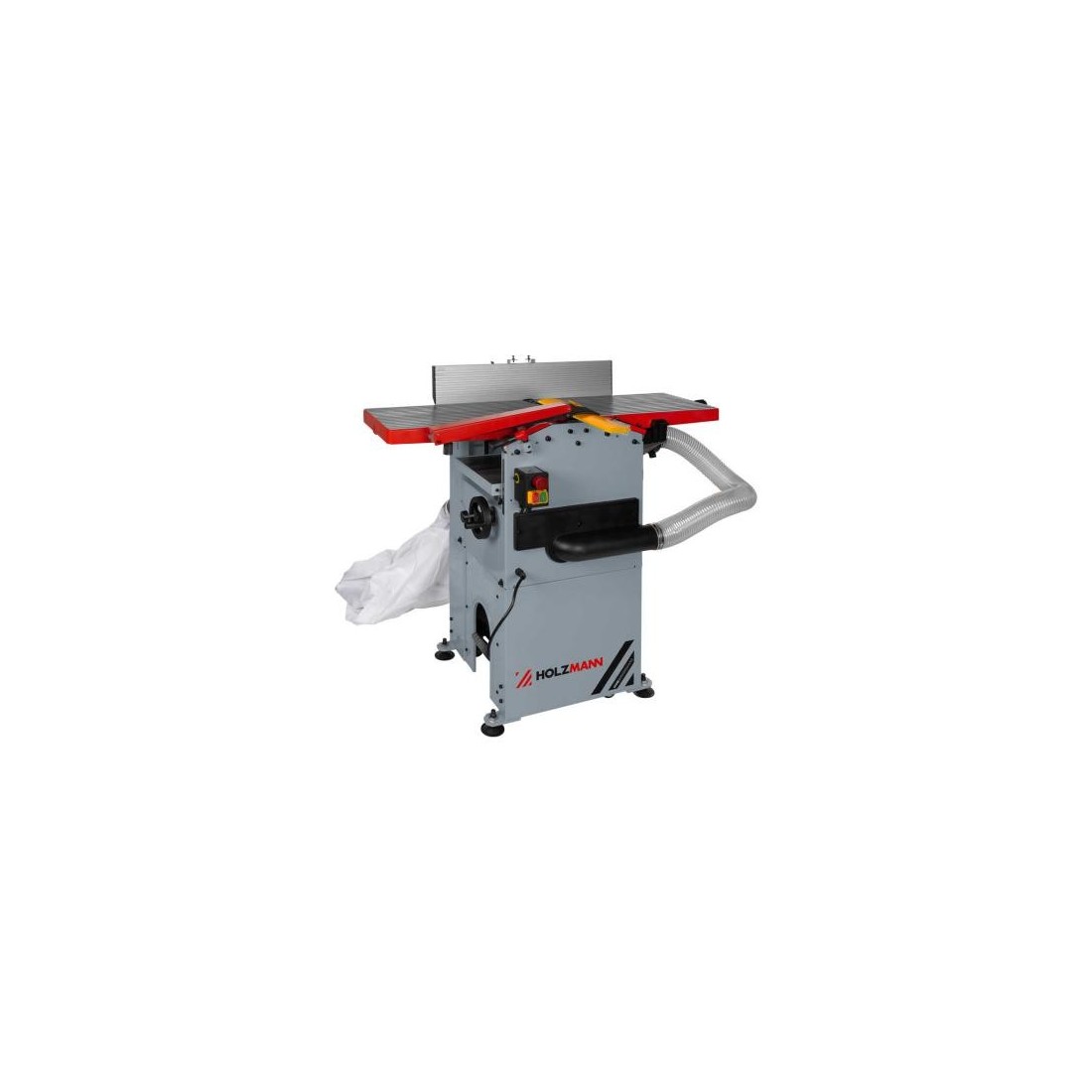

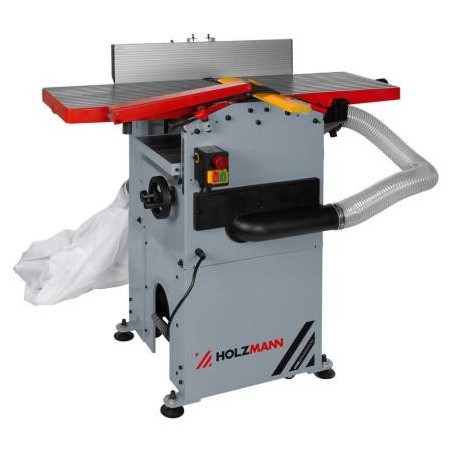

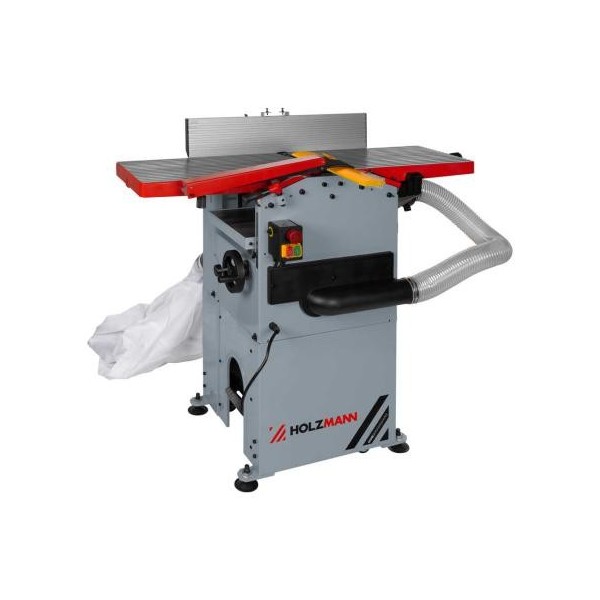

Combined planer and thicknesser, HOB305ABSSMW2_230V, Holzmann

HOB305ABSSMW2_230V is a combined planer–thicknesser equipped with an integrated dust extraction system and a spiral cutterhead. The built-in dust collection eliminates the need for a separate extractor, saving space and costs. Thanks to the integrated mobility device, the machine can be easily moved and stored after use, making it ideal for workshops with limited space.
The machine features a robust cast aluminium table, a tilting aluminium planing fence adjustable from 90° to 45°, and quick changeover between planing and thicknessing modes. The spiral cutterhead with replaceable inserts ensures smoother cutting, reduced noise, and improved surface finish, while the thicknessing feed drive can be disengaged as required.
Key information:
– Planing / thicknessing width: 305 mm; max. thicknessing height: 160 mm
– Planing / thicknessing table size: 1075 × 305 mm / 500 × 305 mm
– Max. cutting depth: planing up to 3 mm, thicknessing up to 1.6 mm
– Planing fence: 643 × 126 mm, tilting 90–45°
– Motor power / voltage: 1800 W / 230 V, 50 Hz
– Cutterhead speed / diameter: 6700 rpm / Ø62 mm
– Spiral cutterhead: 2 grooves, 28 inserts (15 × 15 × 2.5 mm)
– Feed speed: 6 m/min; dust port: Ø75 mm
– Dimensions / weight: 1140 × 780 × 1080 mm
