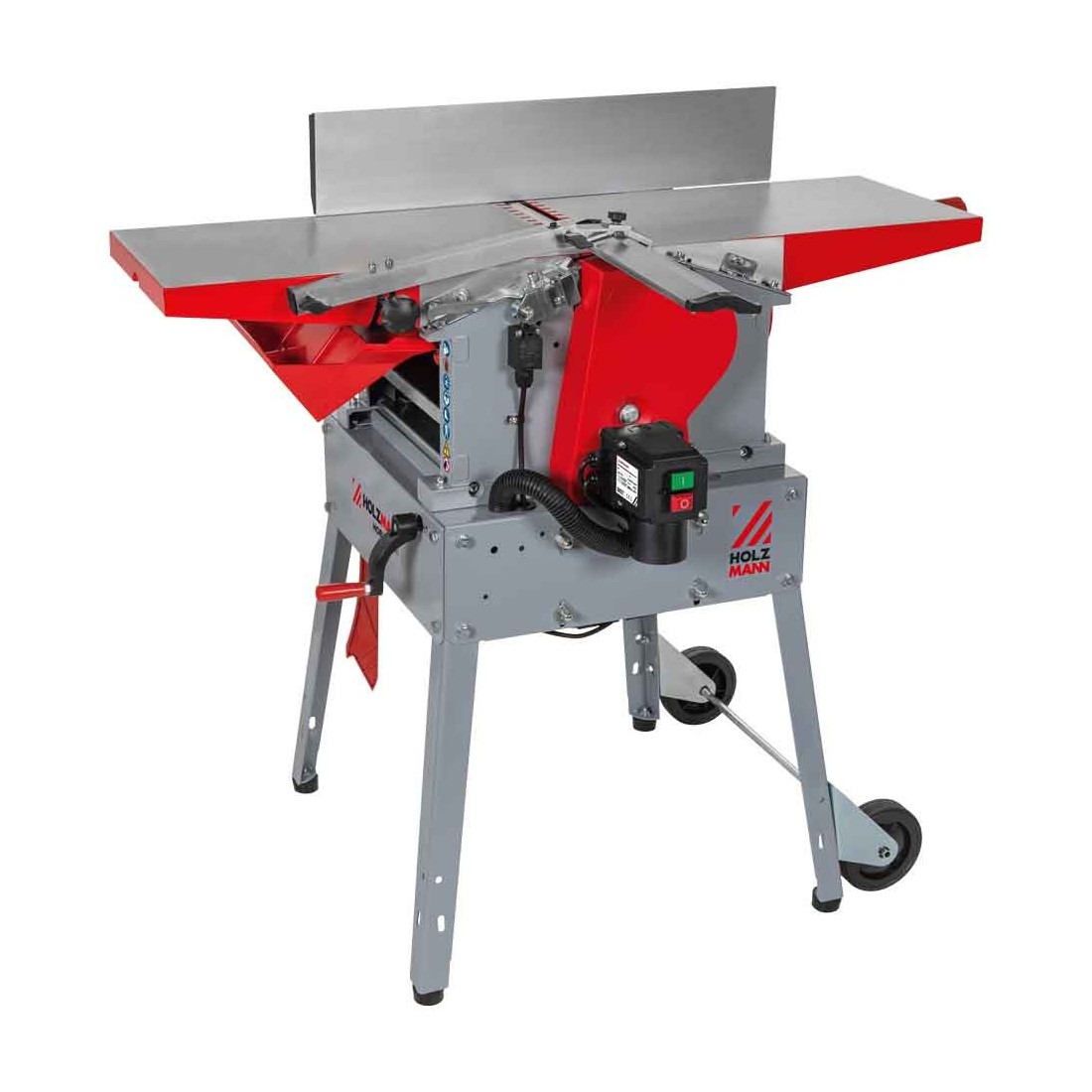

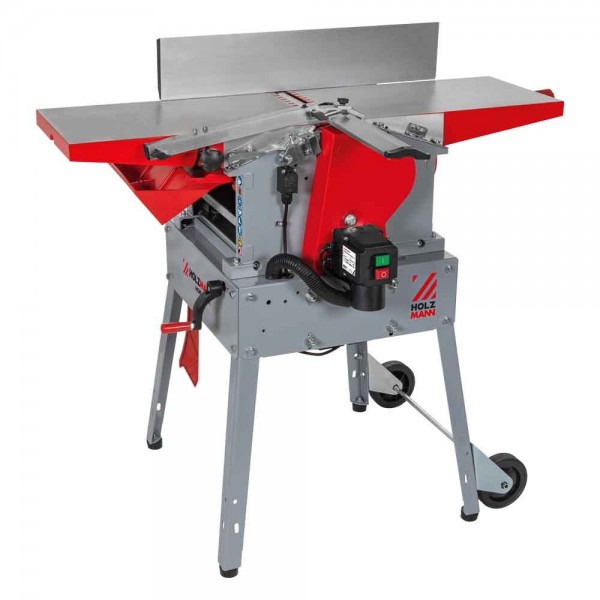

Planer thicknesser, HOB260MINI_230V, Holzmann

HOB260MINI_230V is a compact planer–thicknesser designed for surface planing and thicknessing of wood in a single machine. The 260 mm planing and thicknessing width allows convenient processing of boards, beams, and other wooden workpieces in workshops or smaller production environments. Simple and quick changeover between planing and thicknessing modes ensures an efficient workflow.
The machine features a solid grey cast iron thicknessing table, a tilting planing fence adjustable from 90° to 45°, and an integrated mobility device for easy repositioning within the workshop. Supplied reversible planer knives provide a clean cutting finish and extended service life.
Key information
– Planing / thicknessing width: 260 mm
– Max. cutting depth: 3 mm; max. thicknessing height: 160 mm
– Planing table size: 1040 × 260 mm
– Thicknessing table size: 400 × 260 mm
– Planing fence: 1100 × 150 mm, tilting 90–45°
– Motor power / voltage: 2200 W / 230 V, 50 Hz
– Cutterhead speed / knives: 6500 rpm, 2 pcs; feed speed: 5 m/min
– Dust extraction port: Ø100 mm
– Table height: 860 mm
