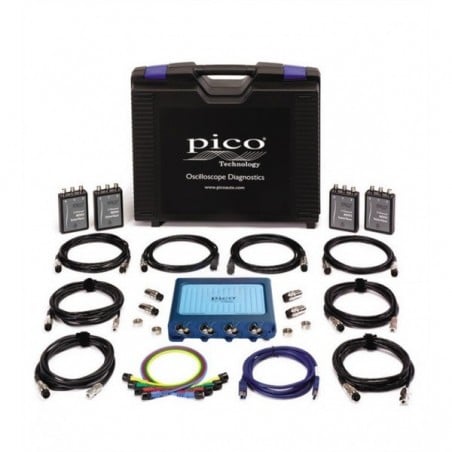

PicoScope 4425A NVH Essentials Advanced kit, PQ270, Pico Technology

The kit consists of a PicoScope 4425A 4-channel automotive oscilloscope and an NVH Advanced diagnostic kit, enabling detailed analysis of vibration and noise under real driving conditions and precise localisation of their sources.
Unlike the Standard version, the Advanced kit supports 4-axis measurements, using three reference axes and a fourth additional measurement point that can be moved to different locations on the vehicle. This makes it possible to accurately identify where vibration is strongest within the vehicle.
Diagnostics are performed using PicoDiagnostics NVH software, which presents data as bar graphs, frequency and 3D charts, RPM order and road speed views.
All components are supplied in a robust carry case, ensuring safe and organised storage in workshop environments.

Technical information:
Oscilloscope: PicoScope 4425A, 4 channels.
Sensors: MEMS accelerometers and NVH microphones.
Data recording: up to 500 s, saved directly to a PC.
Vibration frequency range: DC to 350 Hz.
Maximum measurable acceleration: ±5 g.
Compatibility: Automotive PicoScope.
