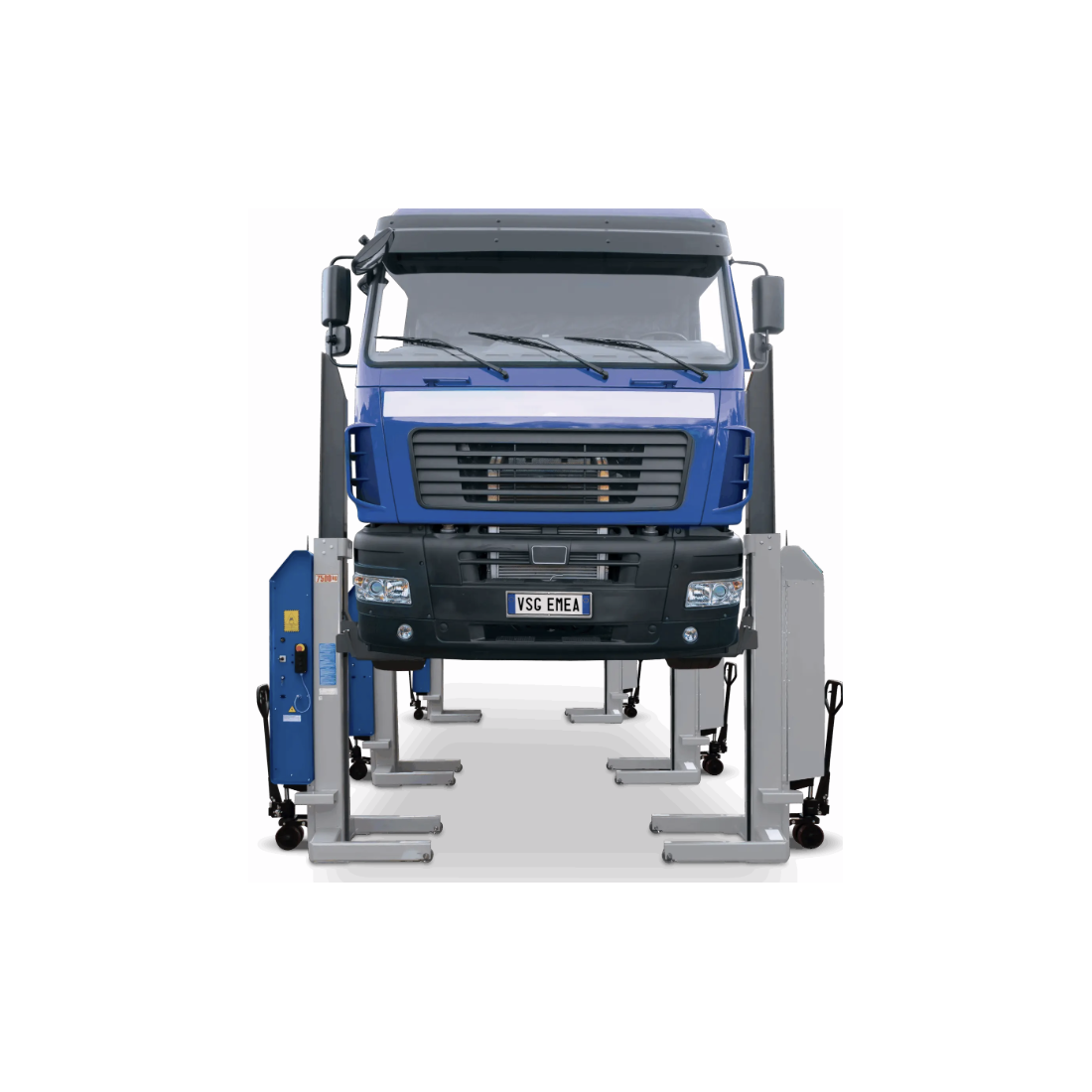

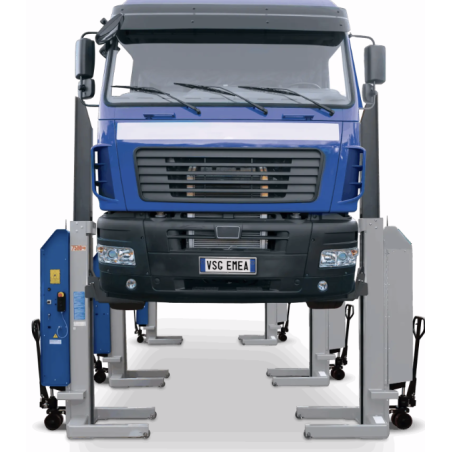

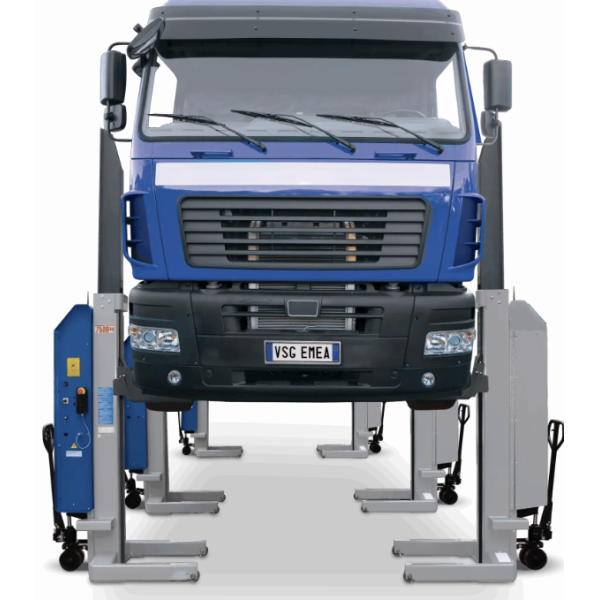

Belaidės mobilios kolonos Alpha Series 8-6.5 RAV.MCH65.192288 RAVAGLIOLI

Lifting capacity of one column 6,500 kg (i.e. 6.5 t)
Total lifting capacity (set of 8 columns) 52,000 kg
Engine power (columns) 3 kW
Min. wheel/diameter dimension 570 mm
Max. wheel/diameter dimension 1,300 mm
Lift stroke 1,753 mm
Lift – release time approx. 65 s/54 s (empty/with load)
Lift column height ~ 2,260 mm
Weight of one column approx. 640 kg
Electrohydraulic control, each column has a control panel; column communication – wireless
Safety measures: mechanical lock (safety latch) with reduced pitch, overload protection valves, automatic lowering stop, LED indicators, software updates
Transportation / mobility each column has wheels, columns have space for moving forks with a forklift
Additional accessories and functions: adjustable forks for wheels of different diameters, configurable for group columns, software with NFC/Bluetooth for configuration, quick troubleshooting via app
