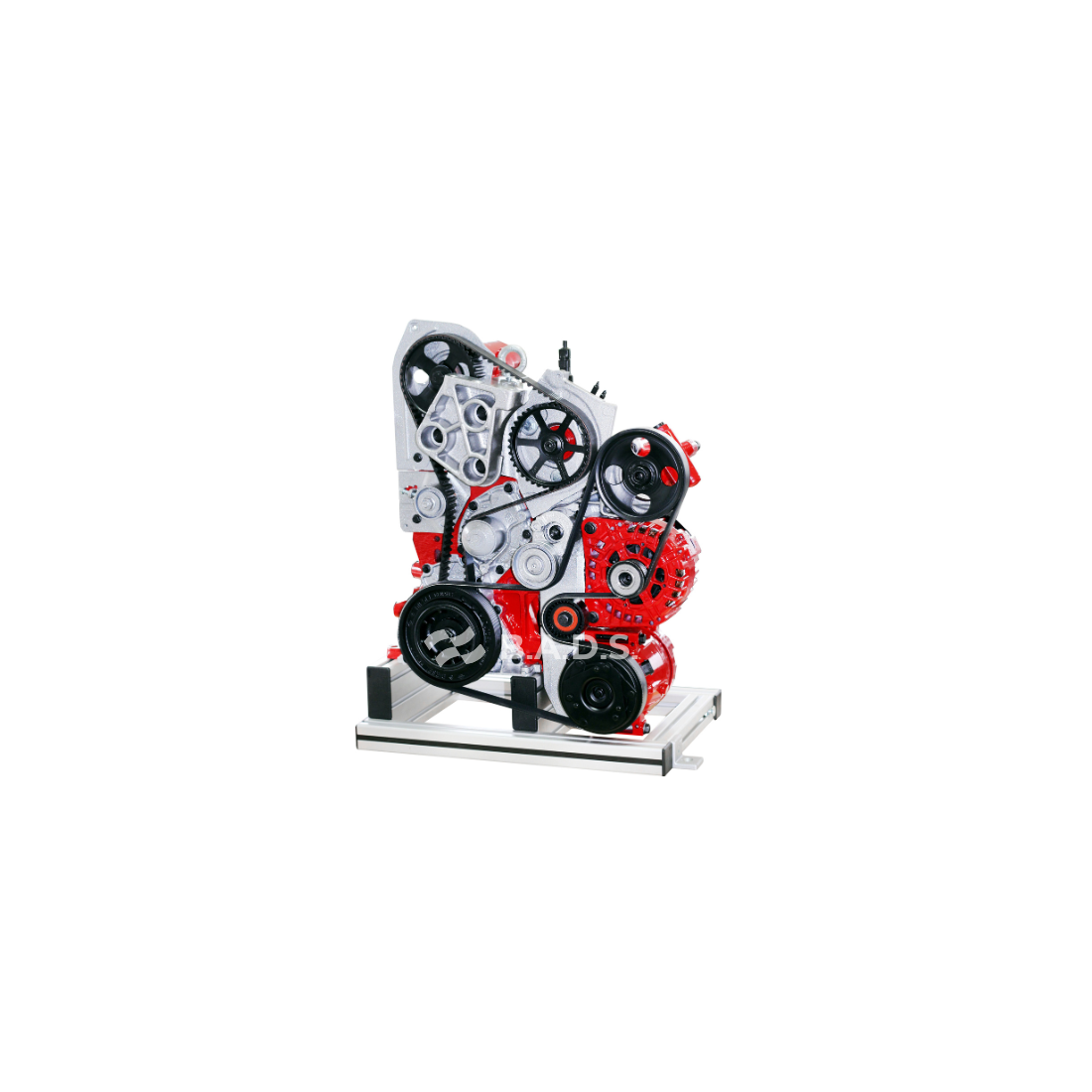

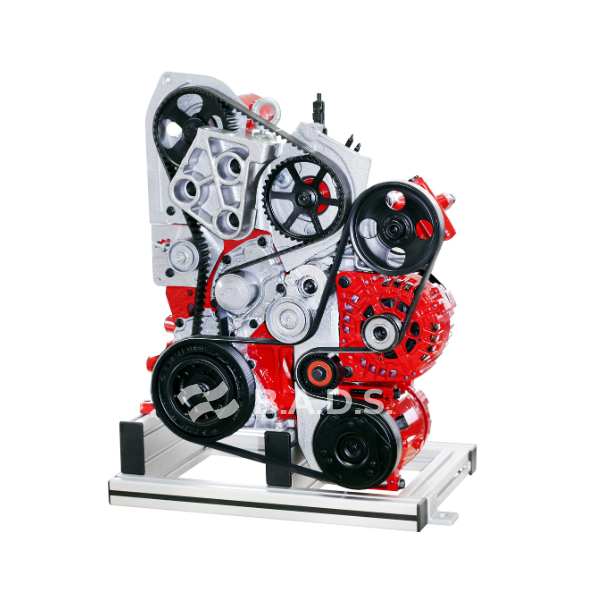

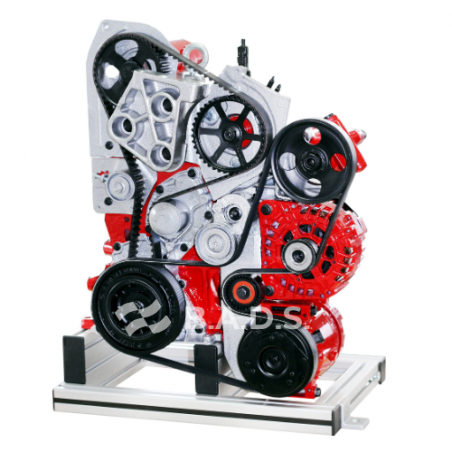

Diesel OHC Common Rail engine ½ cutaway model (IVOD01-CR01)

Reference: IVOD01-CR01

Delivery time: 1 day to 1 month, depending on stock.

Have questions?

+37067440662 [email protected]

Get individual offer

Product Information

Product Information

Cutaway training model of a Diesel OHC engine with Common Rail injection system. Visible components include the engine block, crankshaft, OHC camshaft with valves, pistons with rings, and a high-pressure CR pump. Enables practical training in timing and alternator belt replacement using special torque tools. Manual crankshaft rotation allows observation of piston movement, combustion chamber function, and OHC operation. The model is protected with clear safety covers, compact in size, and mountable on a bench or trolley, making it ideal for technical and vocational training.
Dimensions: 650 x 600 x 320 mm
Weight: ~75 kg
Included: special tool kit for timing belt replacement
