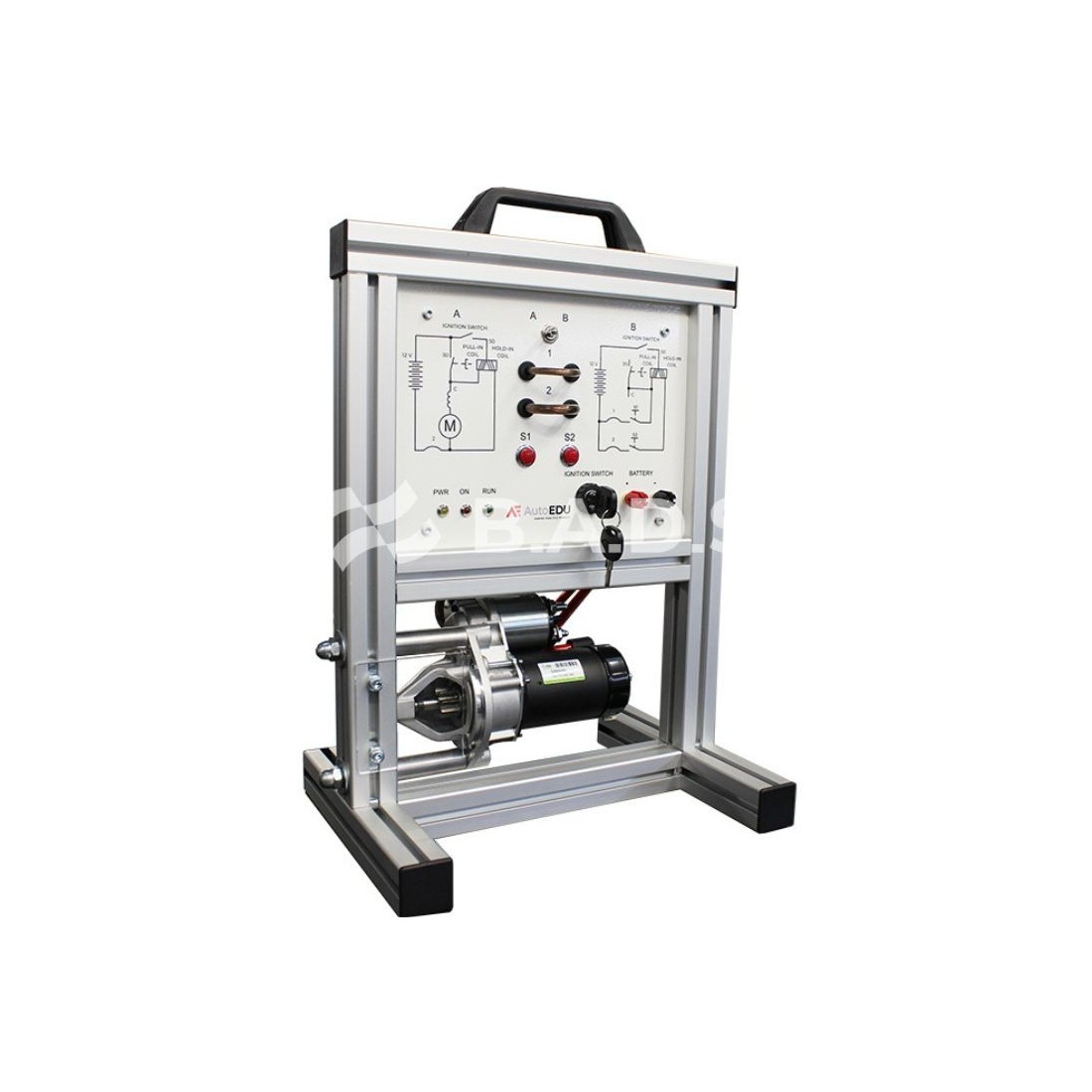

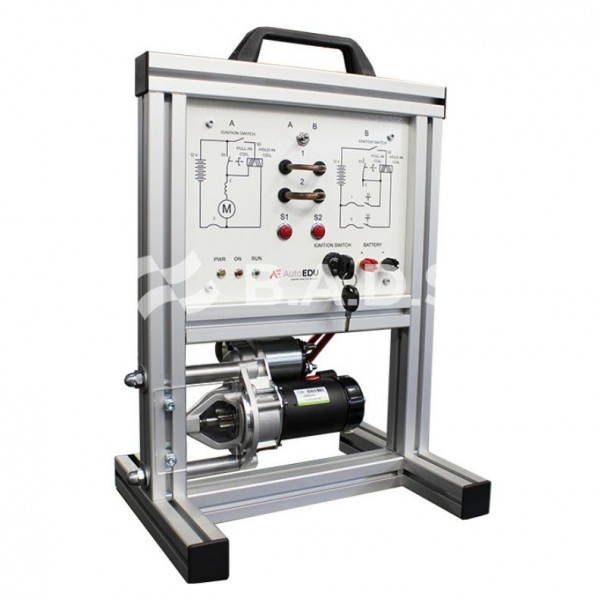

Automotive 12V Starter functional model AVS02

12V Starter Functional Model
An educational tool featuring authentic automotive components, including a bendix drive and ignition switch, mounted on an aluminum base. The model has two operational modes: Mode A for standard starter operation demonstration and Mode B for solenoid and coil performance analysis.
Features:
The model demonstrates the starter’s interaction with the flywheel ring gear and the application of electromagnetic forces in motor operation. OEM components provide a realistic hands-on experience. Integrated wire loops allow current measurement (clamp meter required separately). A protective plexiglass cover ensures safety and visibility during demonstrations.
Benefits for Students:
Gain practical insights into starter operation, analyze components, and measure current consumption in real-time. Different modes allow observation of both standard operation and solenoid functions.
Benefits for Instructors:
Effectively demonstrate starter operation, fault diagnostics, and electromechanical processes. Enables interactive teaching, fault simulation, and system parameter analysis.
Technical Specifications:
Dimensions: 360 x 265 x 520 mm
Weight: approx. 9.5 kg
