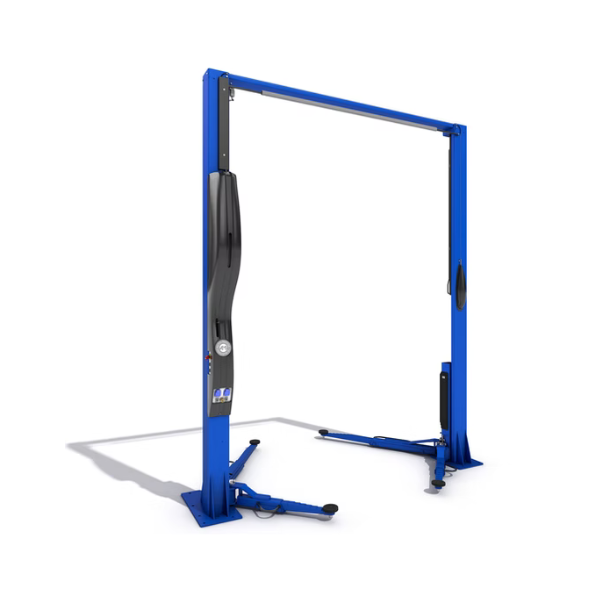

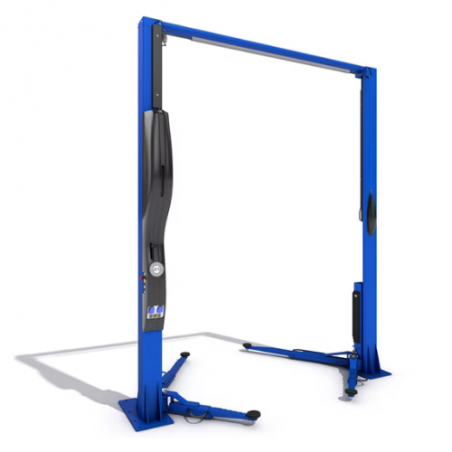

Electro-hydraulic two-post lift AMI 3.0 ECO LINE, 3 T, AMI

Electro-hydraulic, asymmetrical two-post lift with overload valve. Designed for lifting passenger vehicles. Equipped with double-acting hydraulic cylinders. The lift has a height limit switch to protect taller vehicles from damage during lifting. Supplied with extension adapters.

Lifting capacity: 3 T
Lifting height: 90–1915 mm
Arm length (short): 570–890 mm
Arm length (long): 930–1480 mm
Lifting time: 23 s
Lowering time: 27 s
Distance between posts: 2220 mm
Drive-through width: 2565 mm
Overall height: 3625 mm
Clearance height: 3610 mm
Total width: 3135 mm
Power supply: TN-S 3/N/PE 400/230 V AC | 50 Hz
Motor power: 3 kW
Made in the Czech Republic
