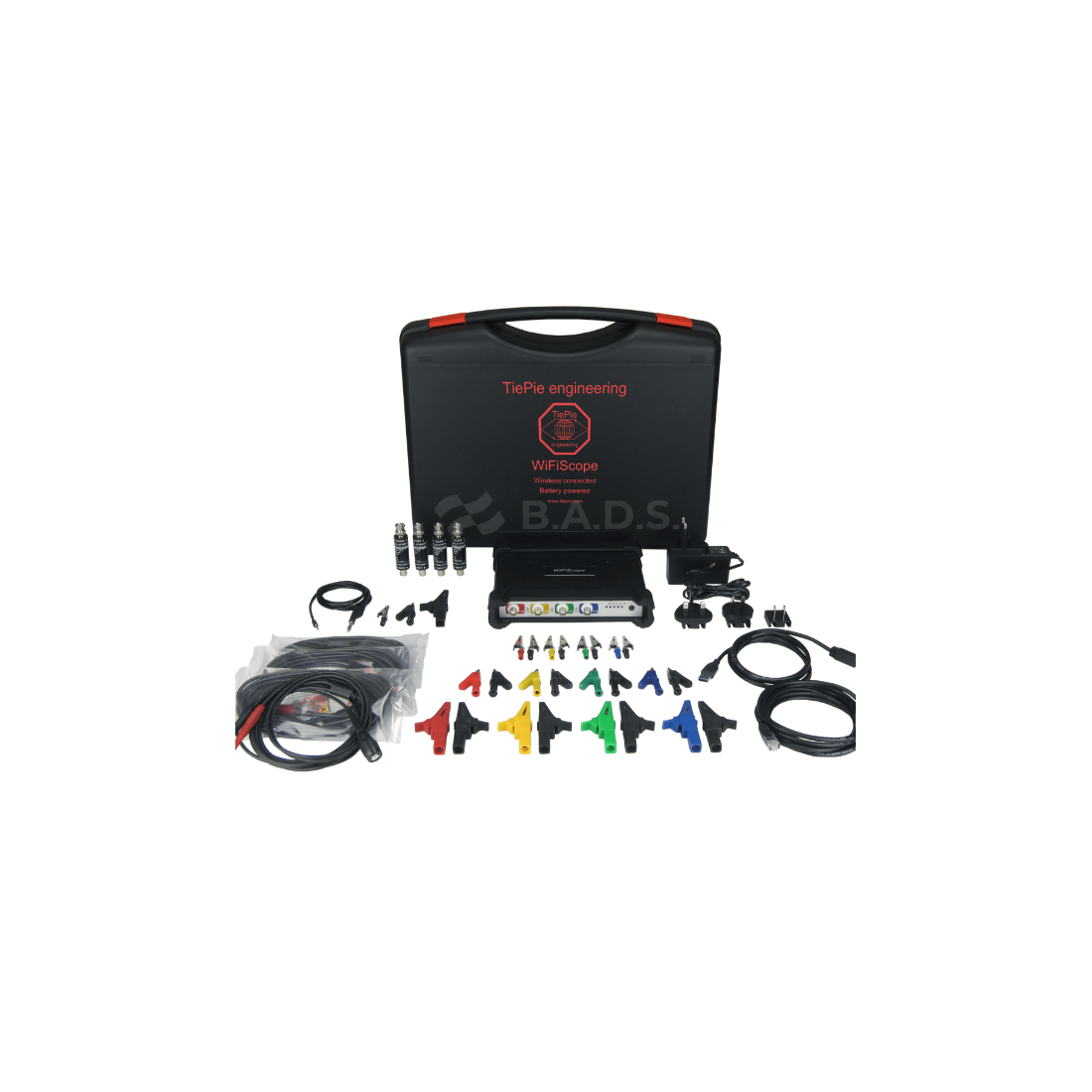

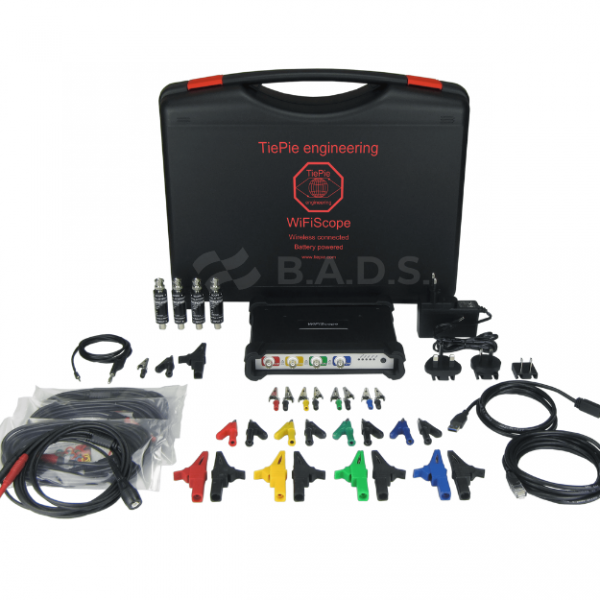

Automotive Test Scope ATS610004DW-XMSG TiePie

Automotive Test Scope ATS610004DW-XMSG is a professional four-channel differential automotive oscilloscope designed for precise testing and diagnostics of modern vehicle electronic systems.
The device ensures safe measurements even in complex electrical systems – each channel is electrically isolated and supports measurements up to ±200 V. Differential inputs help eliminate ground loops and reduce the risk of damaging sensitive components.
Key Features:
Number of Channels: 4 electrically isolated differential channels
Input Voltage Range: ±200 V
Resolution: 14-bit (expandable to 16-bit)
Sampling Rate: up to 1 GSa/s
Bandwidth: 250 MHz
Memory Depth: up to 256 million samples per channel
Connectivity: WiFi, LAN, USB 3.0
Power Supply: Internal battery allowing several hours of cordless operation
Unique Functions:
SafeGround – automatic ground protection to prevent short circuits
SureConnect – probe connection verification system
Multi Channel oscilloscope software – advanced software with spectrum analysis, data logging, CAN/LIN protocol decoding, and more.
