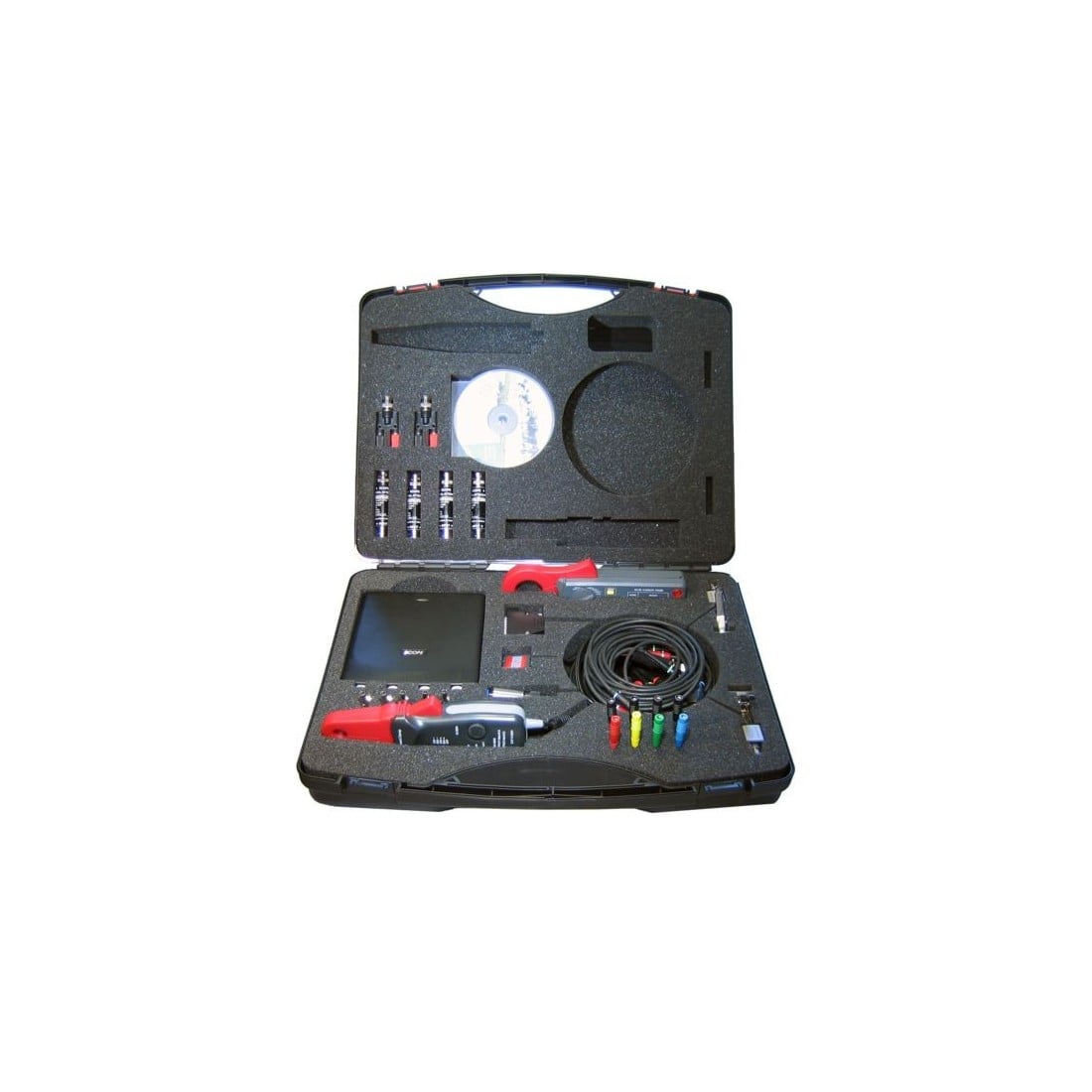

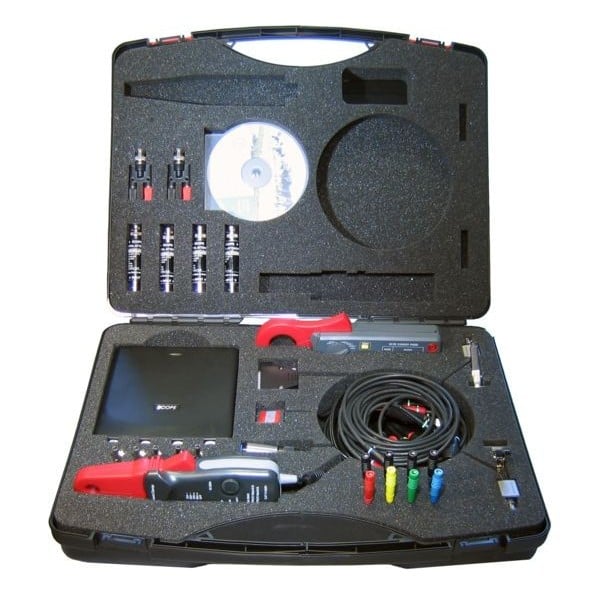

Automotive Diagnostics Kit (ADK605004D)

Automotive Diagnostics Kit ADK605004D is a complete and professional solution designed for accurate diagnostics of modern vehicle systems. This kit enables detailed measurements of signals, current, vibration, and CAN/LIN communication lines, making it an essential tool for identifying both electrical and mechanical faults.
The main component of the kit is the four-channel differential oscilloscope ATS605004D-XMS, featuring a 500 MS/s sampling rate, 250 MHz bandwidth, 14-bit resolution, and 256 million sample memory. Its compact, USB-powered design allows easy connection to a laptop and enables measurements even while the vehicle is in motion. The built-in SureConnect function on each channel informs whether the probe is properly connected to the test point, eliminating uncertainty caused by poor contact or missing signal.
The kit includes:
– 4 differential measurement leads (3 m, BNC to banana)
– 8 flexible back-pinning probes (1000 V CAT III)
– 2 capacitive ignition pickup probes
– 80 A current clamp (2% accuracy)
– 600 A current clamp (3% accuracy)
– Dual-axis accelerometer (±2 g, 420 mV/g sensitivity)
– 4 differential attenuators (1:10, 300 V, 25 MHz)
– 5 crocodile clips (10 mm, 60 V)
– Durable transport case
