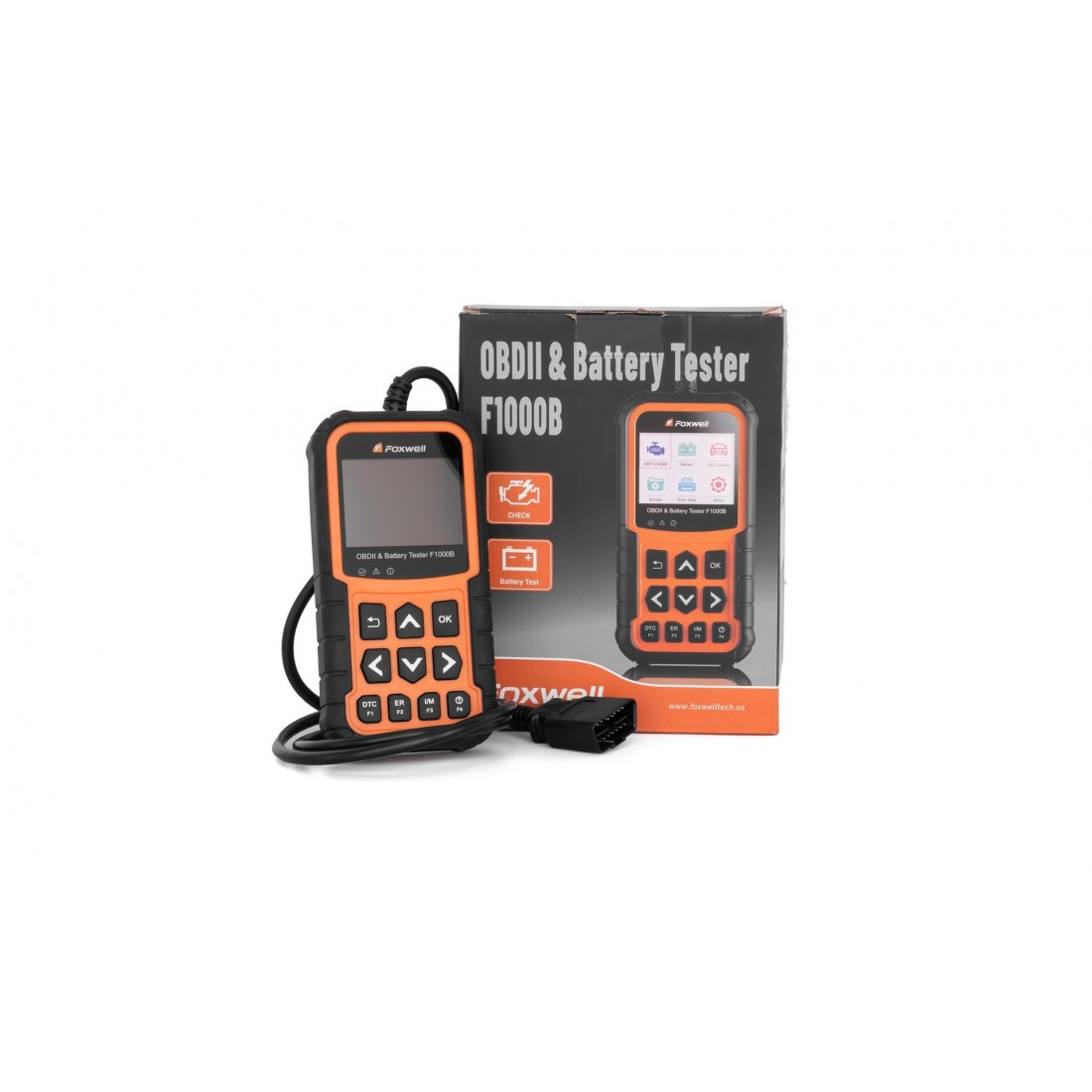

F1000B OBDII & Battery Tester, Foxwell

F1000B is a combined battery analyzer and OBDII diagnostic device designed for fast and accurate testing of 12 V batteries and engine management systems. The device supports regular flooded lead-acid, AGM (flat plate and spiral), and gel batteries. F1000B allows evaluation of battery condition (SOC, SOH), performs starting and charging system tests, and reads and clears OBDII fault codes. It is intended for technicians who need a simple, fast, and reliable tool for daily use.
Technical parameters
Display – 2.8" TFT color LCD
Battery types – Flooded, AGM Flat Plate, AGM Spiral, Gel
Battery voltage – 12 V
CCA test range – 100–2000 CCA
Power supply – 8–18 V via vehicle
Supported protocols – J1850 PWM, J1850 VPW, ISO9141, KWP2000 (ISO14230), CAN (ISO11898)
Operating temperature – 0 to +60 °C
Storage temperature – −20 to +70 °C
Dimensions – 172 × 97 × 32 mm
