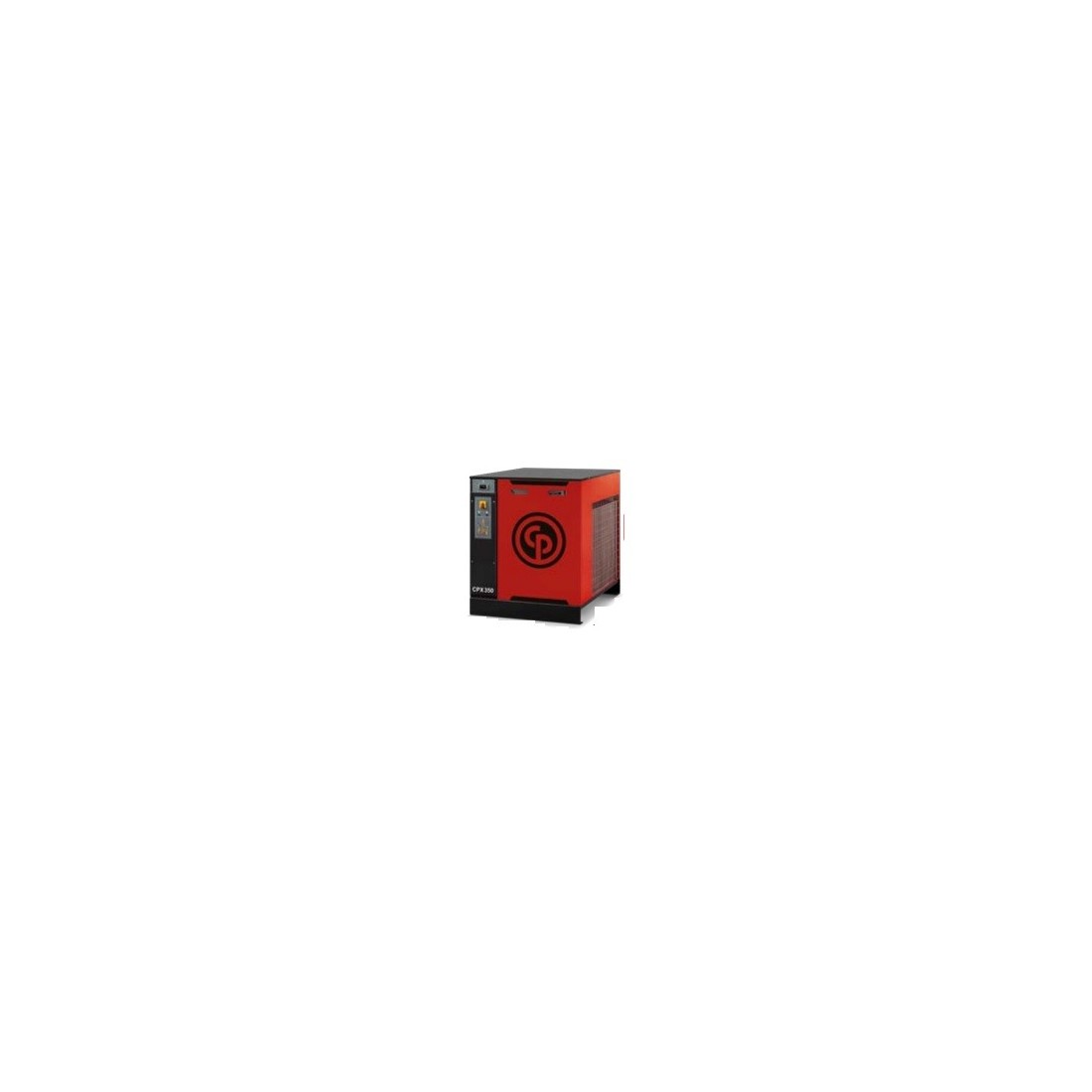

Dryer CPX 20, 4102005738, Chicago Pneumatic

This is a professional refrigerated compressed air dryer designed for efficient moisture removal from compressed air systems. The unit helps ensure reliable pneumatic system operation and protects pneumatic tools, valves, and other components from corrosion and premature wear.
The CPX 20 operates on a cooling principle: compressed air is cooled, water vapor is condensed, and moisture is automatically removed from the system. An integrated intelligent condensate drain with electronic sensors discharges only condensate without wasting compressed air. The electronic controller allows monitoring of the dryer status and dew point.

The compact design allows easy integration of the dryer into existing compressed air systems. The unit is suitable for use with piston and rotary screw compressors in automotive workshops, service facilities, and industrial operating environments.

Technical information:
Capacity: 600 l/min (36 m³/h); dew point: +3 °C
Maximum working pressure: 16 bar
Power supply: 230 V / 50 Hz / 1 phase
Connection: ¾″; refrigerant: R452A
Dimensions: 493 × 350 × 450 mm
Nominal power: 164 W; certification: CE
