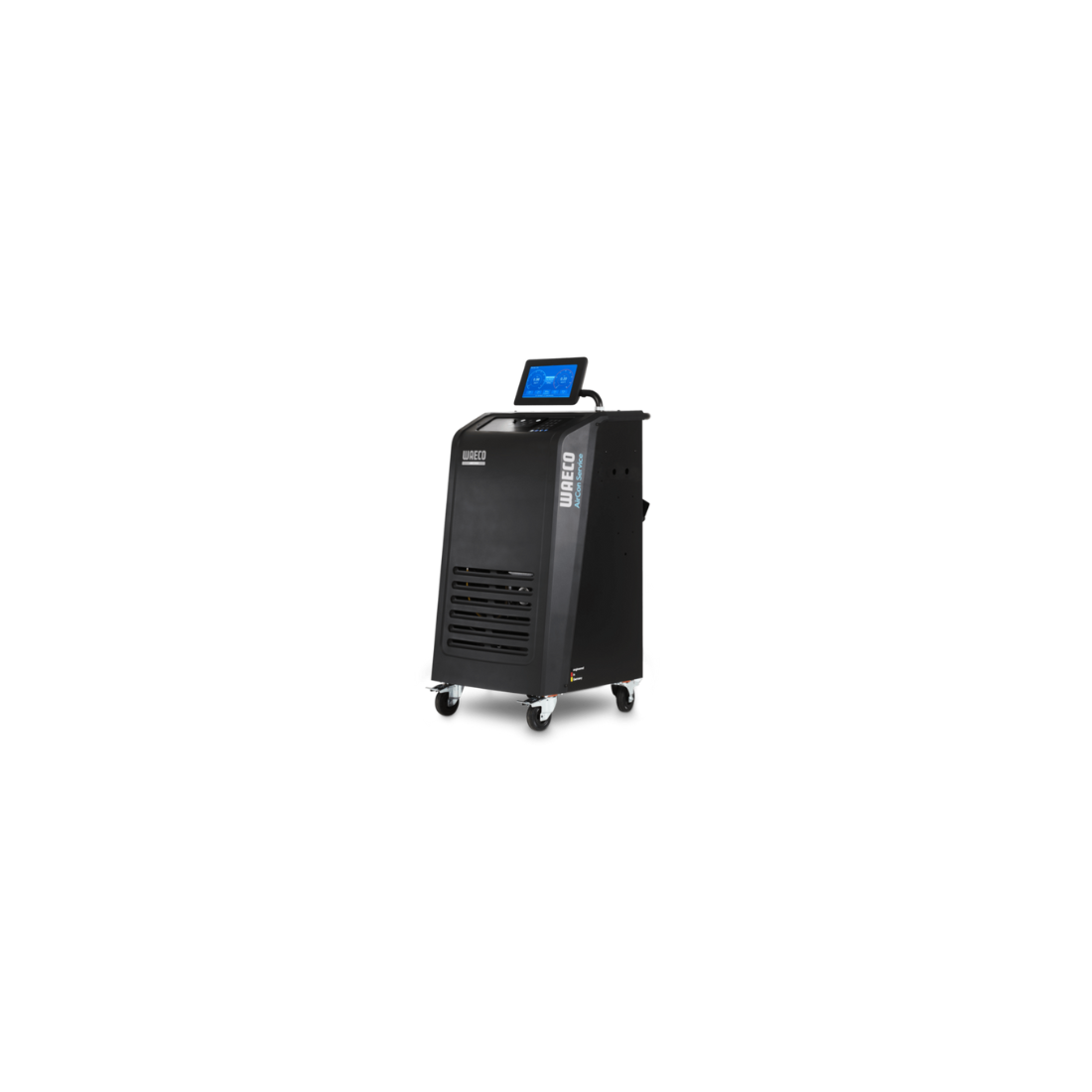

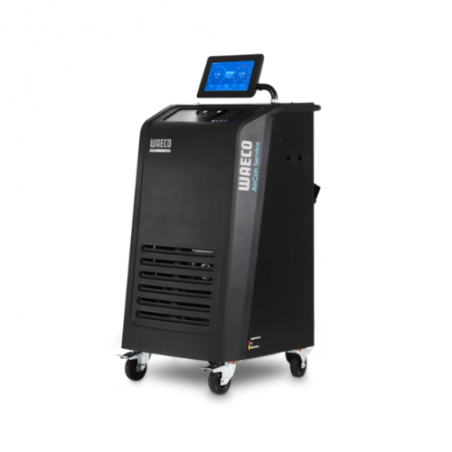

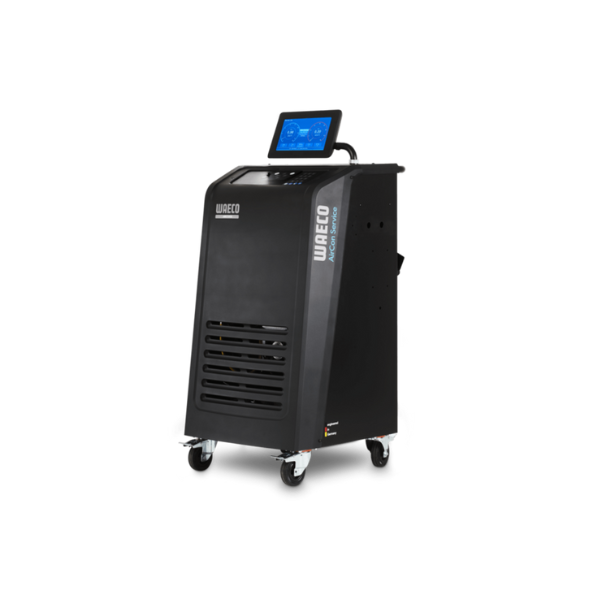

Air Conditioning Service Station ASC 7.4 LE, Waeco

WAECO ASC 7.4 LE is a fully automatic, high-capacity A/C service station designed for vehicles with large refrigerant volumes, such as buses, trains, and special-purpose equipment. The patented Low Emission technology enables the recovery of almost 100% of the refrigerant, significantly reducing emissions and losses.
The modular design allows the unit to be used with R134a, R1234yf, R456A, or R513A refrigerants (with the appropriate hose kit). A high-performance vacuum pump, an additional fluid pump, and a heated charging cylinder ensure fast and precise operation. The swivelling display with digital pressure gauges allows convenient monitoring of all service processes.
Key information:
– Refrigerants: R134a, R1234yf, R456A, R513A
– Refrigerant capacity: 30 kg; recovery rate: 30 kg/h
– Refrigerant recycling: almost 100% (Low Emission)
– Vacuum pump capacity: 192 l/min
– Processes: fully automatic (recovery, evacuation, checking, charging)
– Oil and UV additive injection: automatic (4 reservoirs)
– Control: display with digital pressure gauges
– Power supply: 220–240 V, 50/60 Hz
– Dimensions: 700 × 560 × 1350 mm
