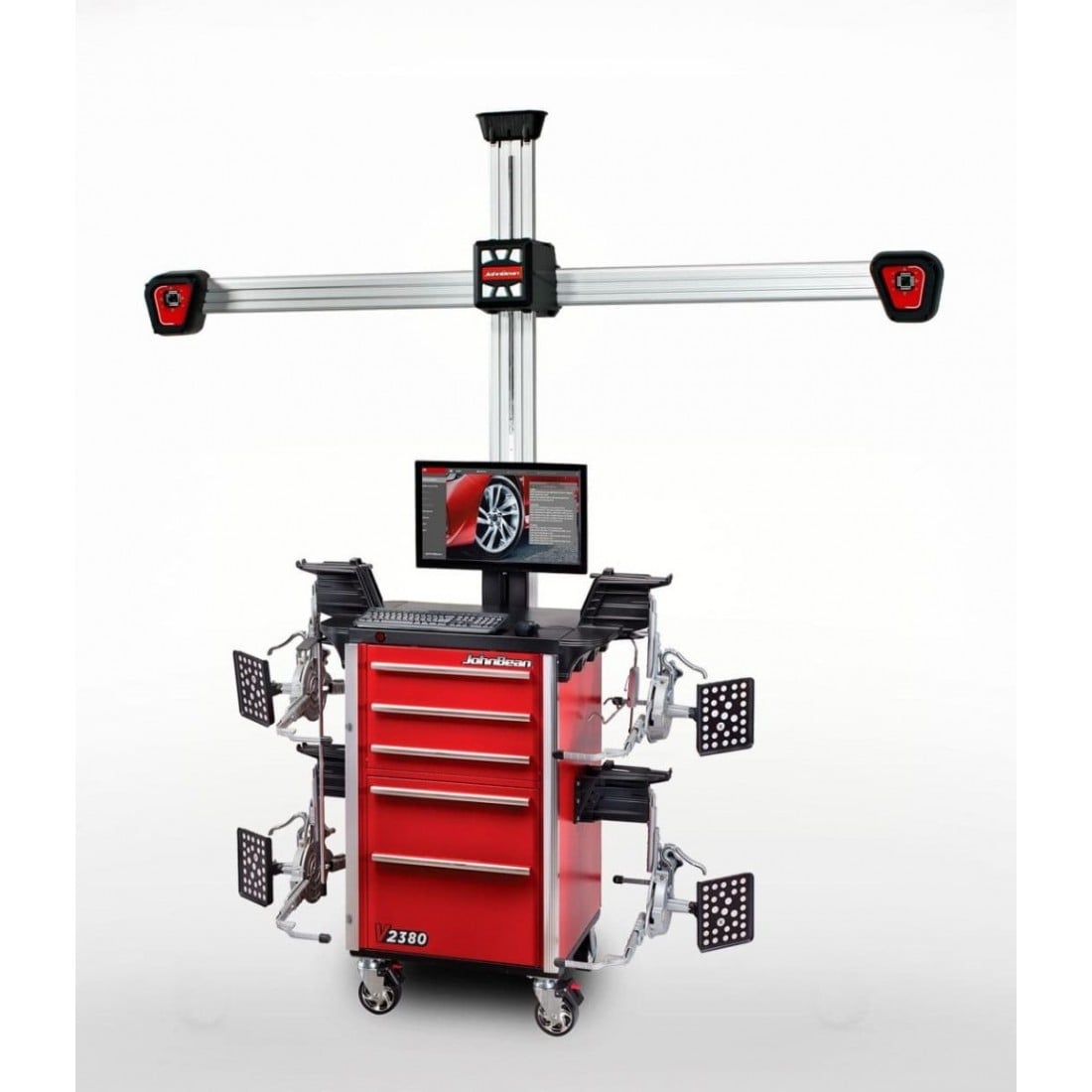

3D ratų suvedimo stendas V2100 TILT EEWAEU541G1 John Bean (kopija) (EEWAEU545TB4)

John Bean V2380 LIFT is a version of the V2380 model specifically designed for use with vehicle lifts and inspection pits. It includes additional features that provide even greater accuracy and ease of use.
Key Features:
Automatic beam and camera height adjustment: Automatically adapts to the vehicle's position on the lift, ensuring precise measurements without additional manual adjustments.
Fast 3D measurement: Measures all vehicle alignment parameters without the need for system calibration.
AC400 wheel clamps: Attach directly to the tire without contacting the wheel rim, ensuring secure, fast, and damage-free installation.
Mobile control cabinet: Equipped with a 22-inch monitor and printer, allowing the system to be easily moved around the workshop.

Specifications:

Wheel diameter: 48–99 cm
Track width: 121.9–243.8 cm
Wheelbase: 200.7–457.2 cm
Power supply: 230 V, 50 Hz

Additional Features:

VODI™ system: LED indicators guide the technician through the alignment process, even when the monitor is not visible.
Cloud connectivity: Enables alignment reports to be shared via email or printed from anywhere in the workshop.
Vehicle database: Includes approximately 37,000 vehicle models and variants covering the last 35–40 years.
Online database updates: 1 year of updates included.
