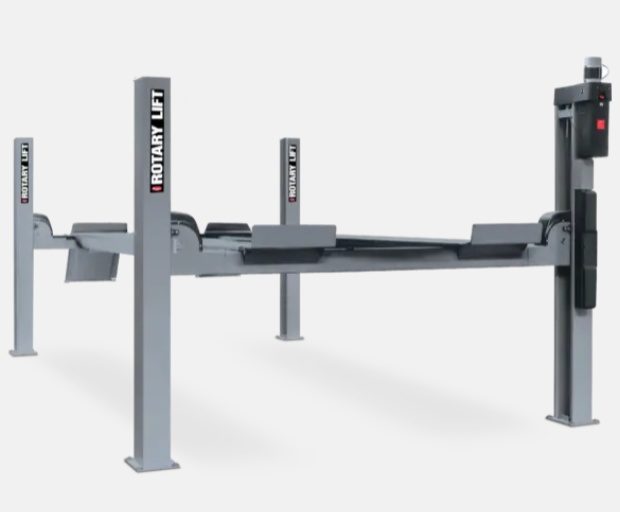

ELECTRO-HYDRAULIC 4-POST LIFT 5T, GmbH (ROT.SM557.194824, BLITZROTARY)

Main Technical Features:
Hydraulic cylinder integrated inside the fixed platform for maximum protection.
High-strength, galvanized, and pre-stretched metal cables ensuring durability.
Large-diameter pulleys with self-lubricating, maintenance-free bushes.
Automatic mechanical safety locks every 100 mm with pneumatic release, allowing safe operation with unloaded cables.
Technical Specifications:
Lifting capacity: 5000 kg
Lifting height: 1915 mm
Total length: 6707 mm
Total width: 3355 mm
Drive-on height: 160 mm
Platform length: 5700 mm
Platform width: 650 mm
Distance between platforms: 940 mm
Drive-through width: 2645 mm
Distance between columns: 3000 mm
Motor power: 2.6 kW
Column height: 2614 mm
